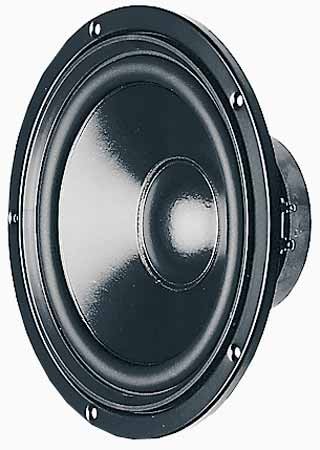

Visaton W 170 S 8Ohm

€35.18 *

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

  • vi-9025
Visaton W 170 S 8Ohm   17 cm (6.5") HiFi woofer with coated paper cone, powerful... more
Product information "Visaton W 170 S 8Ohm"

Visaton W 170 S 8Ohm



17 cm (6.5") HiFi woofer with coated paper cone, powerful drive and extended rear pole plate. Special voice-coil and elastic rubber surround for long strokes.

Specifications

  • power handling (continuous/programme) = 50/80 W

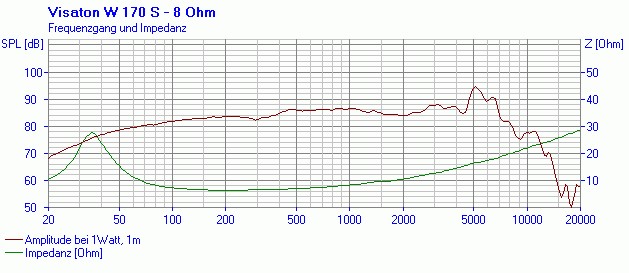

  • frequency range = -8000 Hz
  • resonance frequency fs = 36 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 86 dB (2,83V; 1m)
  • DC resistance Re = 5,9 Ohm
  • force factor BL = 5,4 N/A
  • voice coil inductance L = 1,2 mH
  • effective piston radiating area Sd = 129 cm2
  • effective mechanical mass incl. air load mms = 13 g
  • equivalent volume of compliance Vas = 38 l
  • total Q factor Qts = 0,52 (Qms=2,43, Qes=0,66)
  • voice coil diameter = 25 mm
  • maximum peak linear excursion vibration xlin = +/- 10 mm

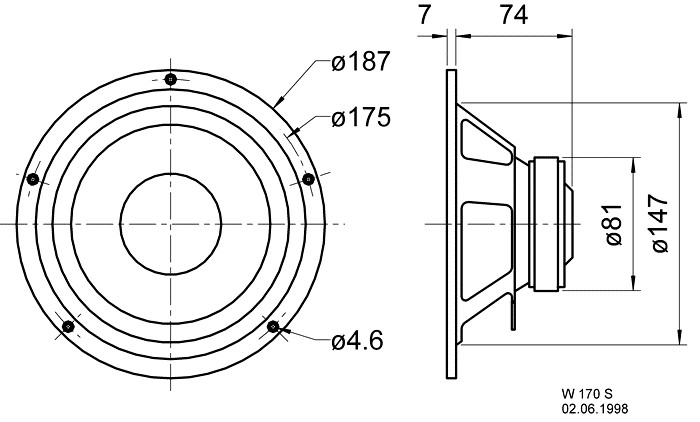

  • mounting diameter d = 148 mm
  • overall diameter d = 187 mm
  • mounting depth (not countersunk) t = 81 mm
  • mass m = 1,1 kg



Recommended cabinets:

Volume/Principle BR-Channel fb fc/QTC
20 l/closed  -  - 57 Hz/0,74
20 l/bass reflex BR 19.24 (length 14 cm) 44 Hz  -
30 l/bass reflex BR 15.34 (length 12&nbs
