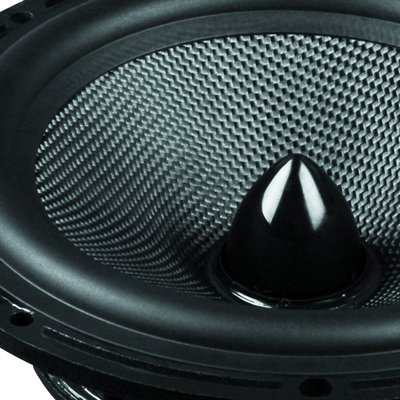

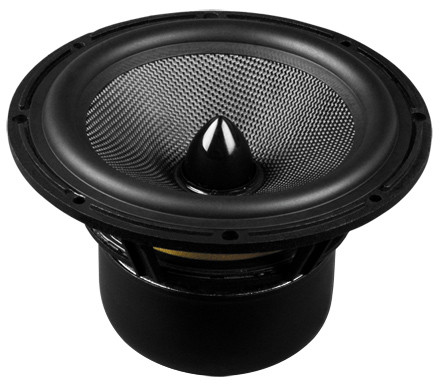

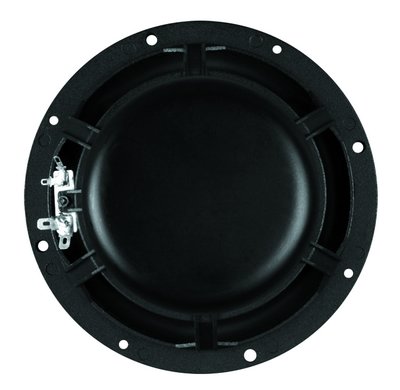

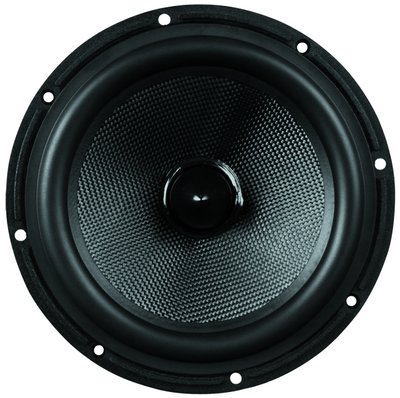

HiVi L6-4R

€49.95 *

Delivery time 240 Workdays

Specifications General Data Overall Dimensions （ DxH ）： Nominal... more

Product information "HiVi L6-4R"

General Data
Overall Dimensions （ DxH ）：
Nominal Power Handling (Pnom)(W) :		30
Max Power Handling (Pmax)(W) :		60
Sensitivity (2.83v/1m)(dB) :		88
Weight (M)(Kg) :		1.765
Electrical Data
Nominal Impedance (Z)(Ω) :		4
DC (Re)(Ω) :		3.6
Voice Coil and Magnet Parameters
VC Diameter (mm) :		30
VC Length (H)(mm) :		14.6
VC Former :		SV
VC Frame :		Kapton
Magnet System :		Shielded
Magnet Former :		Ferrite
Force Factor (BL)(N/A) :		6
Gap Height (He)(mm) :		6
Linear Excursion (Xmax)(mm) :		4.3
T-S Parameters
Suspension Compliance (Cms)(uM/N) :		588.45
Mechanical Q (Qms) :		3.856
Electrical Q (Qes) :		0.443
Total Q (Qts) :		0.4
Moving Mass (Mms)(g) :		17.315
Effective Piston Area (Sd)(m2) :		0.0133
Equivalent Air Volume (Vas)(L) :		14.69
Resonance Frequency (Fs)(Hz) :		50
