Visaton W 200 S 8Ohm

€51.30 *

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

  • vi-9030
Visaton W 200 S 8Ohm   20 cm (8") HiFi woofer with strong drive, extended rear... more
Product information "Visaton W 200 S 8Ohm"

Visaton W 200 S 8Ohm

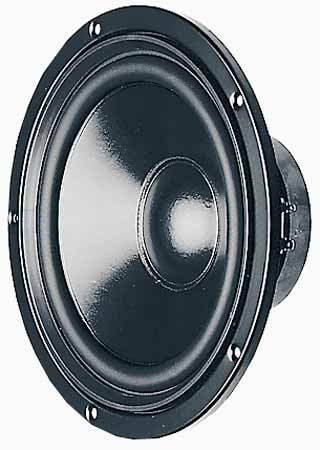

20 cm (8") HiFi woofer with strong drive, extended rear pole plate and 35 mm voice-coil for high power handling. Elastic rubber surround and coated paper cone.

Specifications

  • power handling (continuous/programme) = 75/115 W

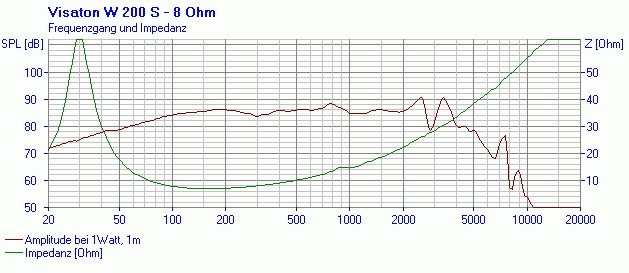

  • frequency range = -6000 Hz
  • resonance frequency fs = 30 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 88 dB (2,83V; 1m)
  • DC resistance Re = 6,0 Ohm
  • force factor BL = 9,0 N/A
  • voice coil inductance L = 2,2 mH
  • effective piston radiating area Sd = 214 cm2
  • effective mechanical mass incl. air load mms = 26 g
  • equivalent volume of compliance Vas = 70 l
  • total Q factor Qts = 0,33 (Qms=3,59, Qes=0,36)
  • voice coil diameter = 35 mm
  • maximum peak linear excursion vibration xlin = +/- 10 mm

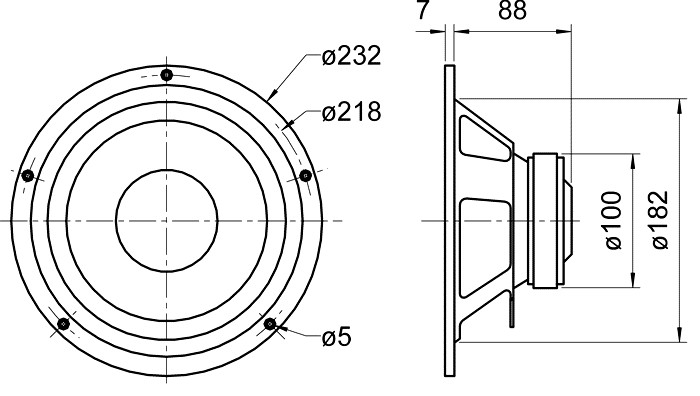

  • mounting diameter d = 184 mm
  • overall diameter d = 232 mm
  • mounting depth (not countersunk) t = 95 mm
  • mass m = 1,5 kg



Recommended cabinets:

Volume/Principle BR-Channel fb fc/QTC
15 l/closed  -  - 70 Hz/0,7
20 l/bass reflex BR 19.24 (length 14 cm) 45 Hz  -
30 l/bass reflex BR 19.24 (length 11&nbs
