Dayton Audio PS95-8

€25.79 *

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

  • da-ps95-8
Dayton Audio's PS95-8 3-1/2" point source full range driver delivers the full spectrum of sound... more
Product information "Dayton Audio PS95-8"

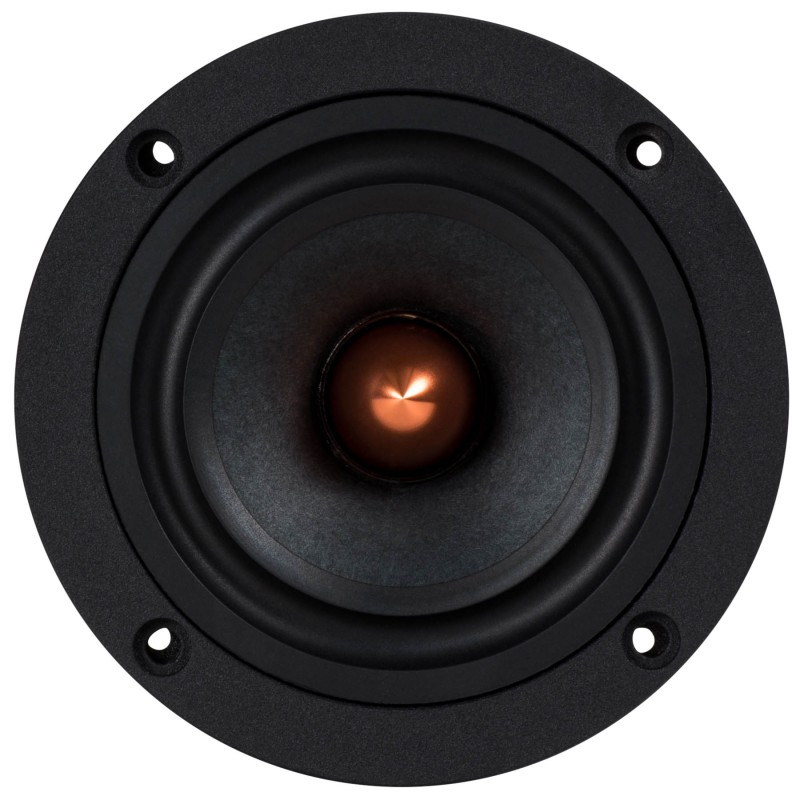

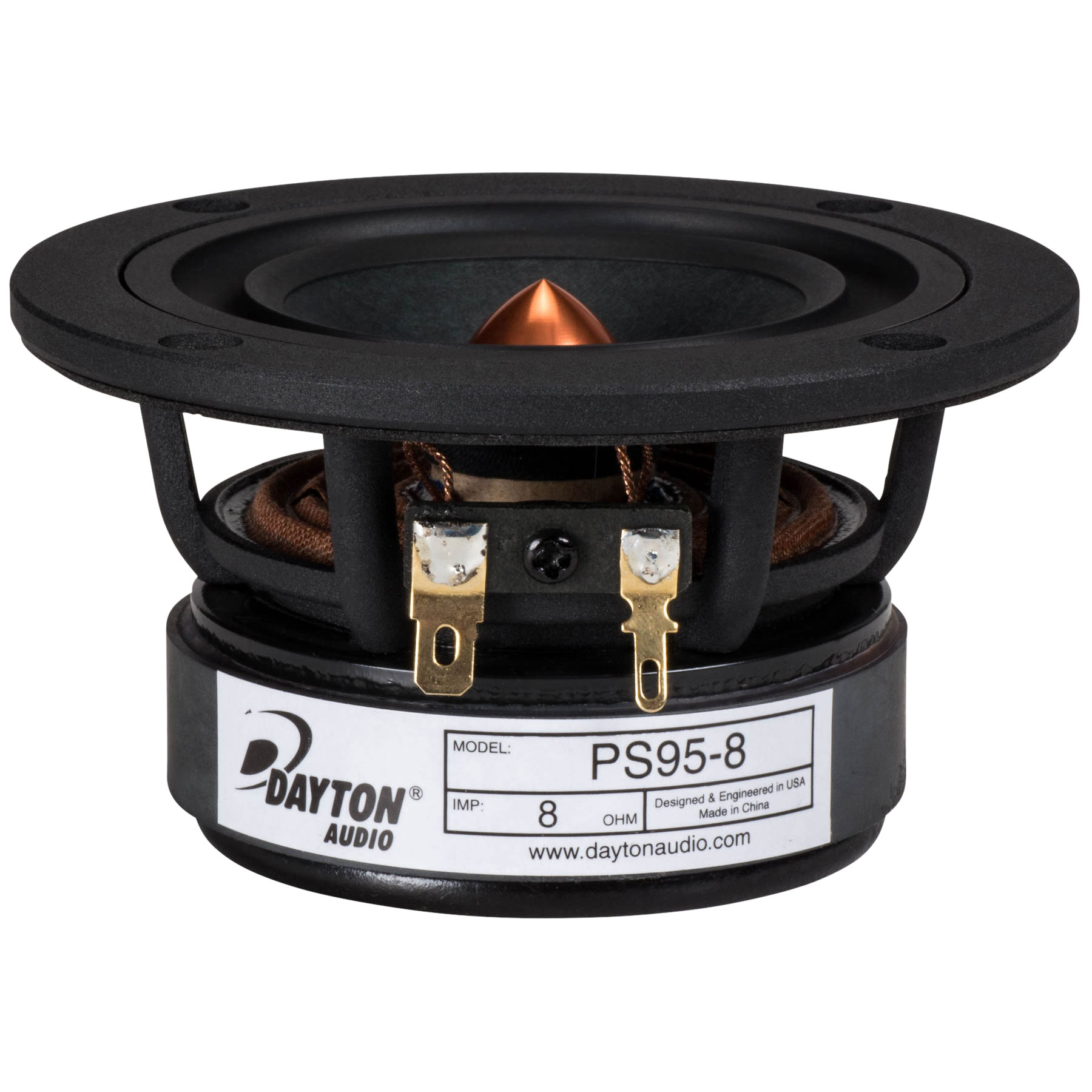

Dayton Audio's PS95-8 3-1/2" point source full range driver delivers the full spectrum of sound – including clear, natural highs – with excellent detail and articulation. No tweeter required!



The newest addition to Dayton Audio's successful family of Point Source full-range drivers, the PS95-8 model features a lightweight, curved-profile paper cone made of 100% natural fibers, for dynamic and articulate sound that extends from a punchy, detailed bass to the highest treble. The compact 3-1/2" size enables great sonic performance in small satellite speakers on the desktop, or in narrow "needle"-style tower cabinets for filling a larger room

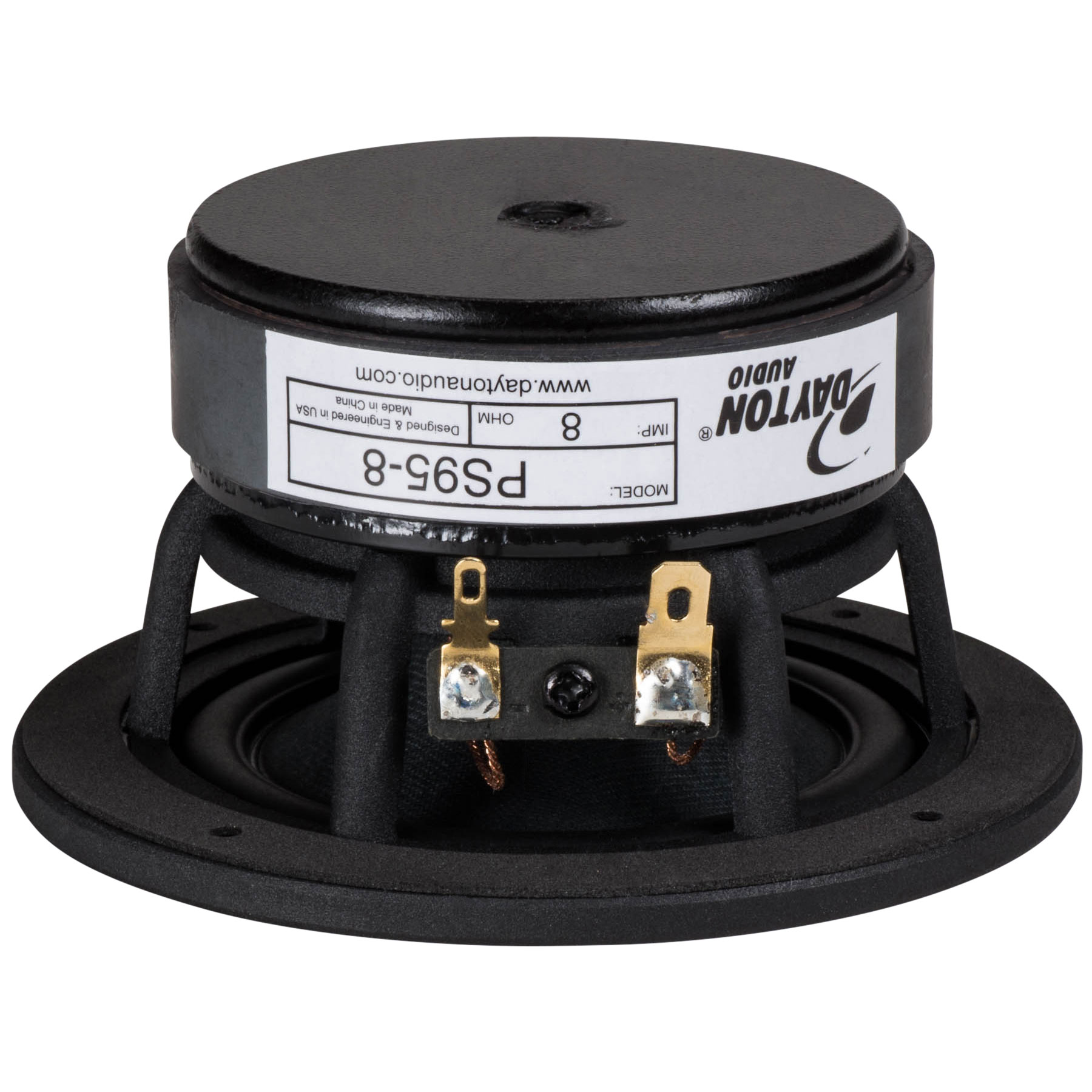

The copper-anodized aluminum phase plug of the PS95-8 is more than just beautiful – it provides enhanced dispersion and eliminates the resonance from a conventional dust cap. And the optimized, high-strength ferrite magnet structure features a copper pole cap that reduces resolution-sapping inductance and lowers distortion. Our smallest Point Source series full-range driver isn't small on engineering, or performance!



Specifications

Impedance
8 ohms

Re
7.1 ohms

Le
0.63 mH @ 1 kHz

Fs
119.8 Hz

Qms
7.33

Qes
0.80

Qts
0.72

Mms
2.2g

Cms
0.79 mm/N

Sd
28.3 cm²

Vd
7.08 cm³

BL
3.83 Tm

Vas
0.94 liters

Xmax
2.5 mm

VC Diameter
20 mm

SPL
85.56 dB @ 2.83V/1m

RMS Power Handling
10 watts

Usable Frequency Range (Hz)
10 - 20,000 Hz
