Visaton G 20 SC

€69.00 *

Prices incl. VAT plus shipping costs

Delivery time appr. 1-3 workdays

Order number: 1185

Visaton G 20 SC Magnetically shielded 20 mm (0.8") High-end textile dome unit for... more

Close menu

Product information "Visaton G 20 SC"

Visaton G 20 SC

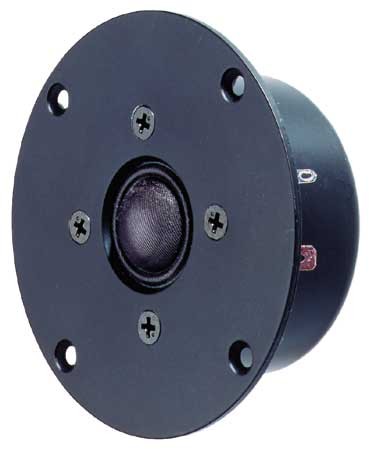

Magnetically shielded 20 mm (0.8") High-end textile dome unit for use at tweeter frequencies of 3,000 Hz and above. The optimised dome shape and damping felt on the pole piece ensures a very balanced frequency response without resonance and excellent omnidirectional sound distribution. The powerful magnet drive and ferro-fluid cooled voice coil guarantee both high efficiency and excellent power handling capabilities.

Technical Data:
Nominal power handling with high pass	80 W (12 dB/Okt.; 2000 Hz) 120 W (12 dB/Okt.; 4000 Hz)
Peak power handling with high pass	140 W (12 dB/Okt.; 2000 Hz) 180 W (12 dB/Okt.; 4000 Hz)
Nominal impedance Z	8 Ohm

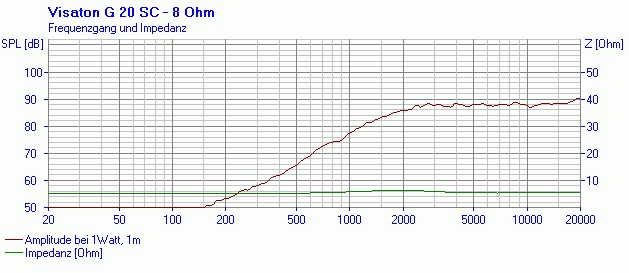

Frequency response	1200–30000 Hz
Mean sound pressure level	88 dB (1 W/1 m)
Opening angle (-6 dB)	180°/8000 Hz
Resonance frequency fs	1890 Hz
Magnetic induction	1,3 T
Magnetic flux	200 µWb
Height of front pole-plate	2,5 mm
Voice coil diameter	20 mm
Height of winding	2 mm

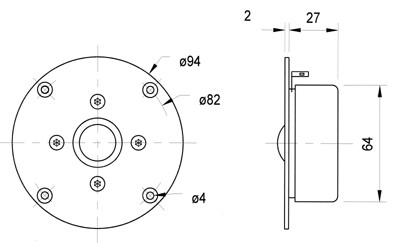

Cutout diameter	66 mm
Net weight	0,39 kg
D.C. resistance Rdc	4,8 Ohm
Mechanical Q factor Qms	0,36
Electrical Q factor Qes	1,34
Total Q factor Qts	0,28
Effective piston area Sd	4 cm²
Dynamically moved mass Mms	0,15 g
Inductance of the voice coil L	0,02 mH
