Peerless HDS-104 Glassfibre 830992

€45.33 *

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

  • 830992
The Peerless HDS-104 Glassfibre 4 inch 8 ohm driver is a member of the high performance HDS... more
Product information "Peerless HDS-104 Glassfibre 830992"

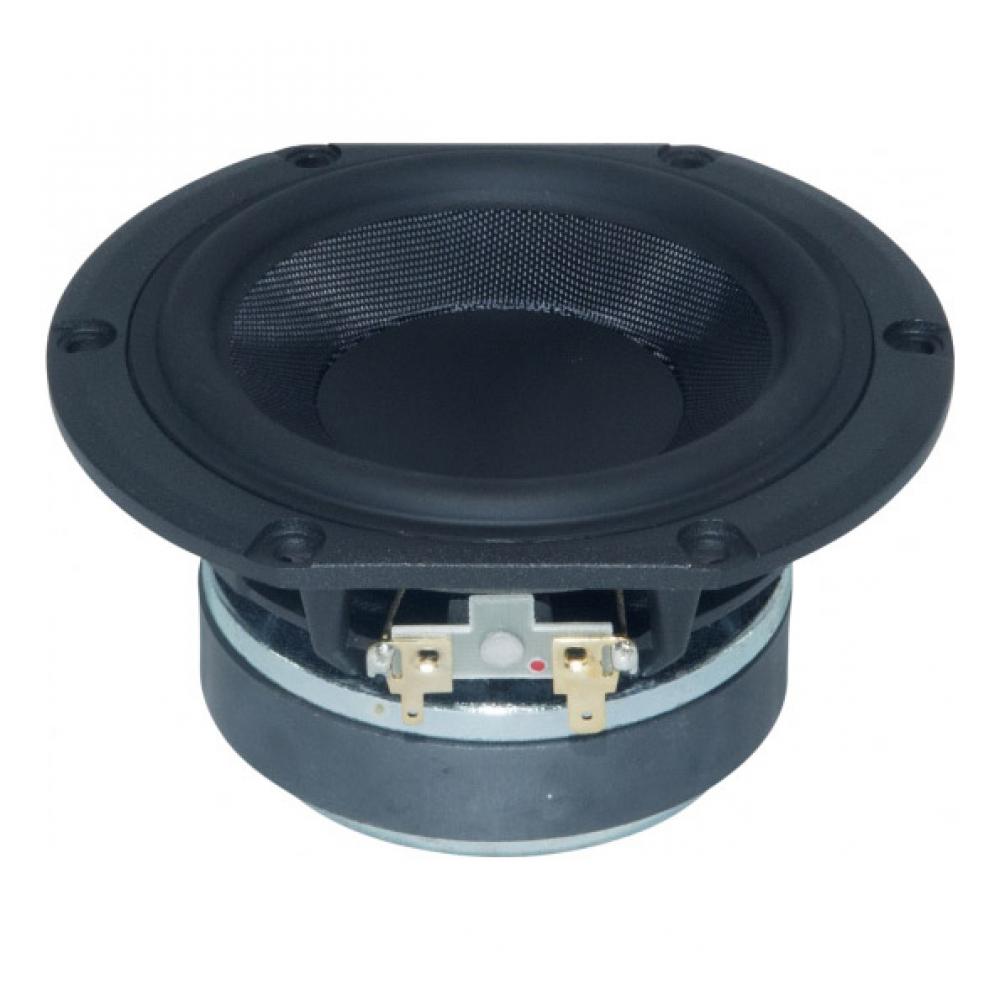

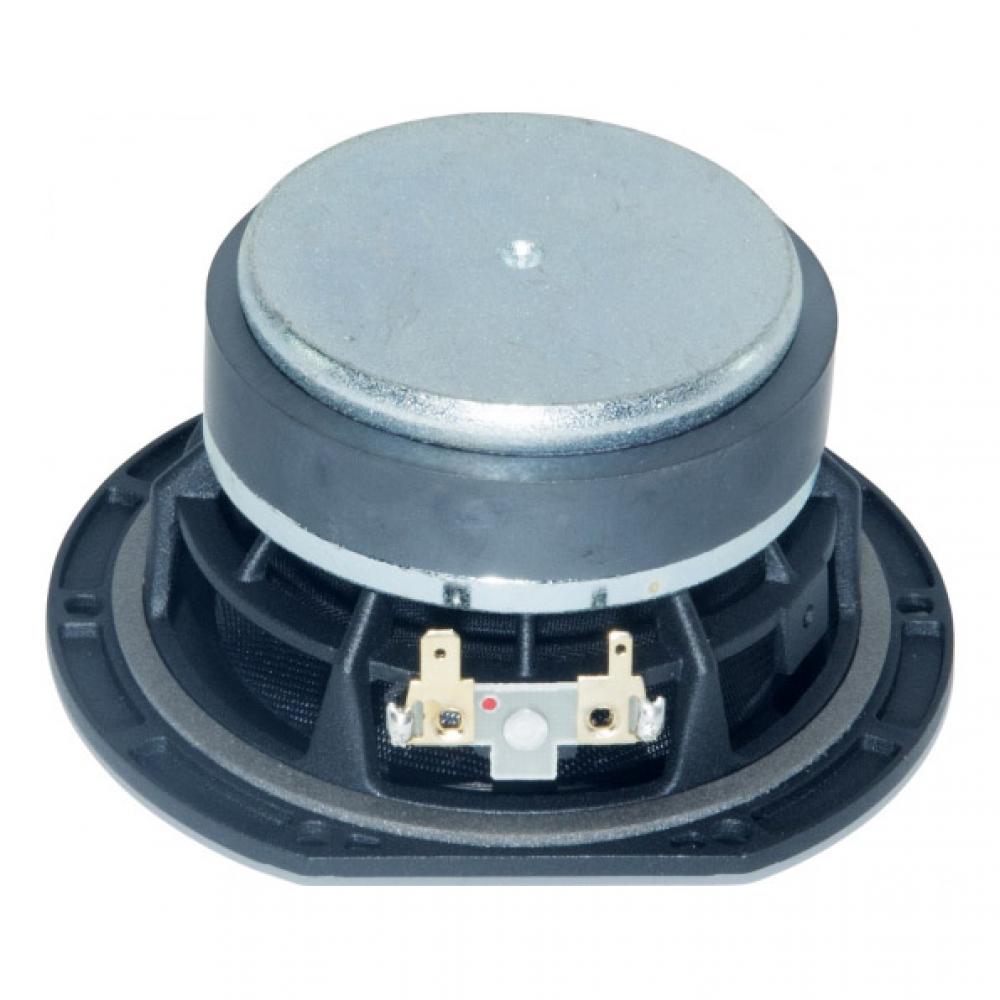

The Peerless HDS-104 Glassfibre 4 inch 8 ohm driver is a member of the high performance HDS family. A powerful ferrite magnet system is coupled to a finite element analysis designed suspension system, containing both a linear spider design and a rubber surround. The motor contains an aluminium shorting ring, which reduces coil inductance, thus providing both extended frequency response performance and reduced distortion. The long-throw voice coil ensures linear high excursion performance, needed for signal clarity. The cone necks are vented so as to reduce air compression effects under high excursion conditions. The cast aluminium basket offers structural rigidity, heat sinking capacity for the motor, and additional air venting under the spider so as to again reduce air compression effects. The cone in this model is a glass fibre composite, offering a unique visual and acoustic experience.



Specifications

Transducer Size     4 in
DC Resistance     5.25 Ω ±5.0%
Resonant Frequency     88.61 Hz 15%
Half Space Sensitivity @ 2.83V     86.12 dB ±1.01
Sensitivity @ 1W/1m     84.7 dB ±1.01
Rated Noise Power (IEC 268-5 18.1)     30 W
Effective Piston Area     56.1 cm2
Moving Mass     5.9 g
Motor Force Factor     4.91 T•m
Voice Coil Inner Diameter     25.73 mm
Gap Height     6 mm
Maximum Linear Excursion     3 mm
Ferrofluid Type
Minimum Impedance     5.75 Ω ±7.5%
Voice Coil Inductance     0.24 mH
Mechanical Q Factor     2.95
Electrical Q Factor     0.72
Total Q Factor     0.58
Ratio     153.83 fs/Qts
Test Spectrum Bandwidth (1300-20000 Hz)     20Hz - 5kHz 12 dB/Oct
Energy Bandwidth Product ((1/Qes)•fs)
Suspension Compliance     545.9 um/N
Effective Cone Diameter     8.45 cm
Motor Efficiency Factor     4.6 (T•m2)/Ω
Voice Coil Former Material     ASV GSV
Transducer Mass     0.91 Kg
Equivalent Volume     2.41 L
