SB Acoustics SB16PFCR25-8

SB Acoustics
Preview: SB Acoustics SB16PFC25R-8 Preview: SB Acoustics SB16PFC25R-8 charts Preview: SB Acoustics SB16PFC25R-8 parameters Preview: SB Acoustics SB16PFC25R-8 dimensions

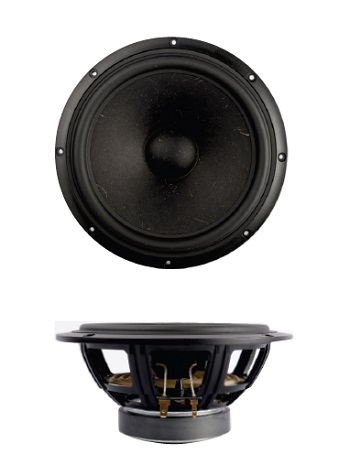

SB Acoustics SB16PFC25R-8

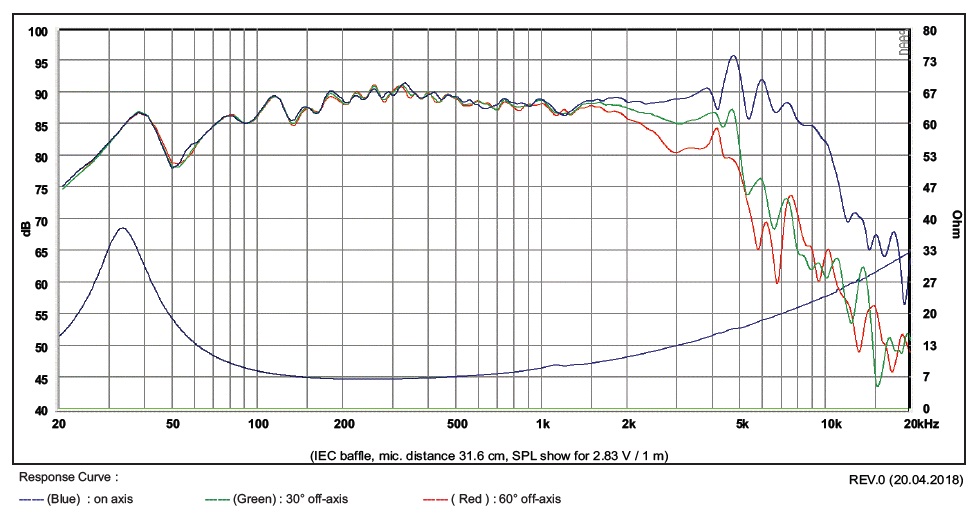

SB Acoustics SB16PFC25R-8 charts

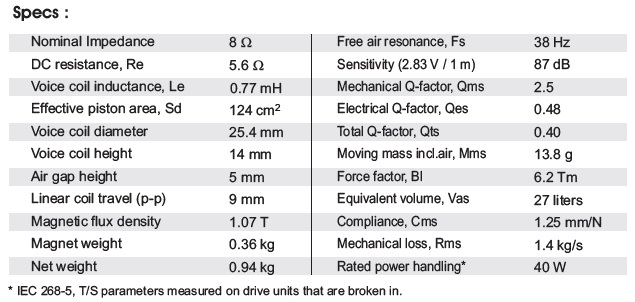

SB Acoustics SB16PFC25R-8 parameters

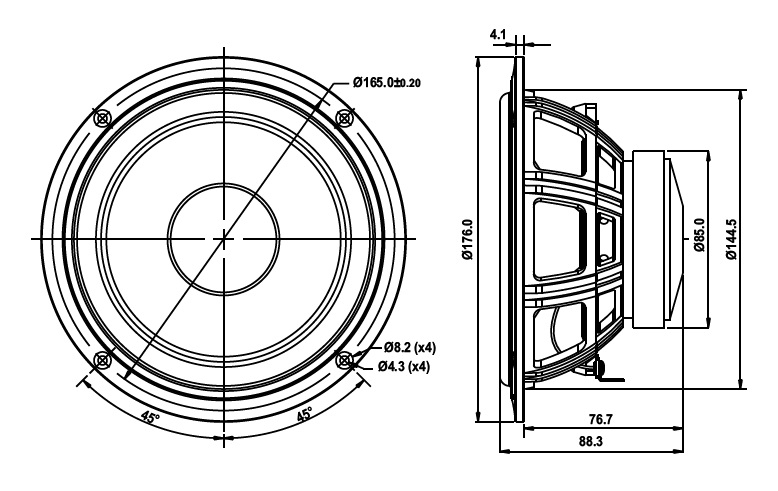

SB Acoustics SB16PFC25R-8 dimensions

€32.33 *

Prices incl. VAT plus shipping costs

Delivery time 1-3 Workdays

  • Order number: 1382454
Description Evaluations 0
Description
SB Acoustics SB16PFCR25-8 6" Woofer Vented reinforced plastic chassis Proprietary cone... more
Close menu
Product information "SB Acoustics SB16PFCR25-8"

SB Acoustics SB16PFCR25-8 6" Woofer

  • Vented reinforced plastic chassis
  • Proprietary cone material with natural fibers made in-house
  • Soft low damping rubber surround for improved transient response
  • Optimized motor system
  • Vented coil former for low compression
  • Non-resonant long life lead wires



Specifications

  • power handling (continuous/programme) = 40 W
  • frequency range = 40-12000 Hz
  • resonance frequency fs = 38 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 87 dB (2,83V; 1m)
  • DC resistance Re = 5.6 Ohm
  • force factor BL = 6.2 N/A
  • voice coil inductance L = 0.77 mH
  • effective piston radiating area Sd = 124 cm2
  • effective mechanical mass incl. air load mms = 13.8 g
  • equivalent volume of compliance Vas = 27 l
  • total Q factor Qts = 0.40 (Qms=2.5, Qes=0.48)
  • voice coil diameter = 25,4 mm
  • mounting diameter d = 144.5 mm
  • overall diameter d = 160.5mm
  • mounting depth (not countersunk) t = 76.7 mm
