Dayton Audio DS115-8

€29.72 *

Prices incl. VAT plus shipping costs

Delivery time 7 Workdays

  • da-ds115-8
More than just a pretty speaker, the Dayton Audio Designer Series DS115-8 4" woofer features an... more
Product information "Dayton Audio DS115-8"

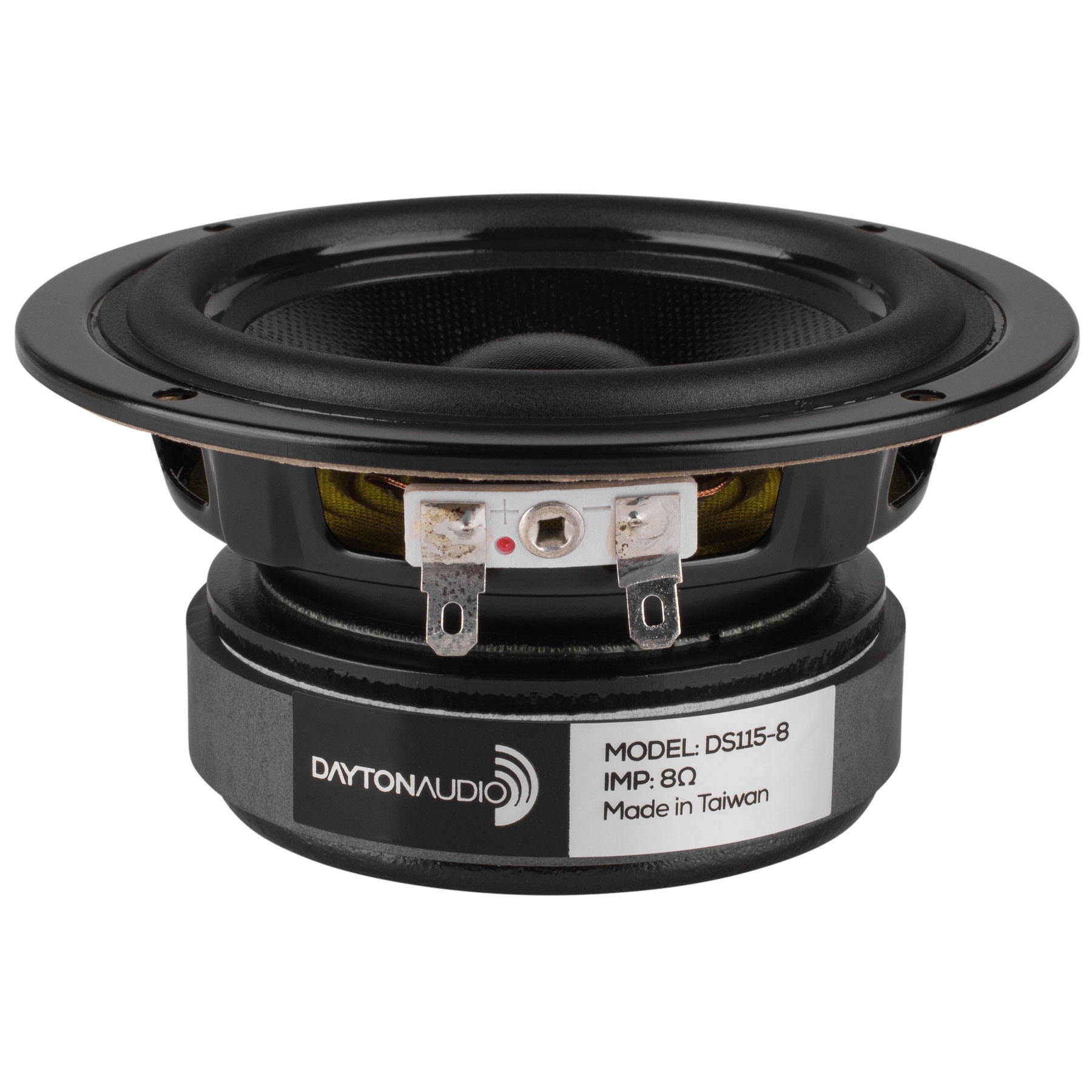

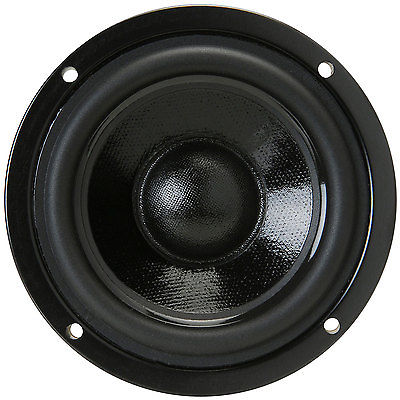

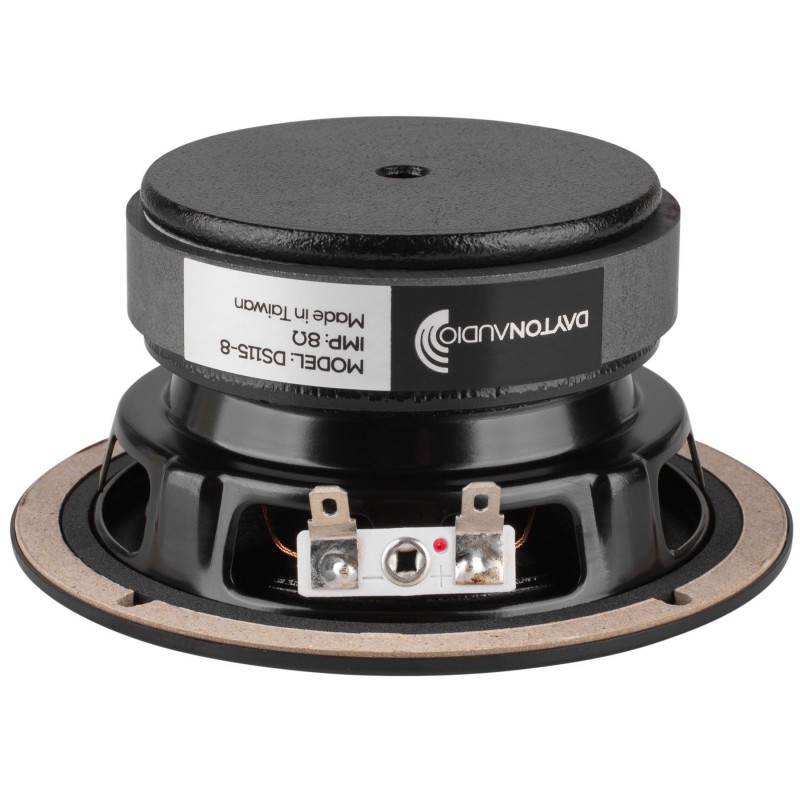

More than just a pretty speaker, the Dayton Audio Designer Series DS115-8 4" woofer features an extremely neutral response and high Xmax capability.



Product Highlights

 Optimized to yield a low 3 dB down point and high potential output in a reasonably sized cabinet
• Coated paper cone, half roll rubber surround for durability and accurate reproduction
• Cosmetic frame with low profile lip, designed for front mounting—no countersinking required!
• Vented pole piece for minimized power compression and maximized reliability
• Generous Xmax capability encourages use of moderate bass boost to tailor the response
• Retains the same "family look" as the popular Dayton Audio DVC Series subwoofers and passive radiators
• Smooth frequency response and linear roll-off simplify filter design, assuring good results with off-the-shelf crossovers



Specifications

Impedance
8 ohms

Re
5.8 ohms

Le
0.8 mH @ 1 kHz

Fs
55.2 Hz

Qms
2.10

Qes
0.46

Qts
0.38

Mms
7.9g

Cms
1.05 mm/N

Sd
54.1 cm²

Vd
22.2 cm³

BL
5.88 Tm

Vas
4.33 liters

Xmax
4.1 mm

VC Diameter
25.4 mm

SPL
85.3 dB @ 2.83V/1m

RMS Power Handling
35 watts

Usable Frequency Range (Hz)
60 - 8,000 Hz
