Peerless HDS-134 Glassfibre

€53.30 *

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

  • 830991
The Peerless HDS-134 Glassfibre 5.25 inch 8 ohm driver is a member of the high performance HDS... more
Product information "Peerless HDS-134 Glassfibre"

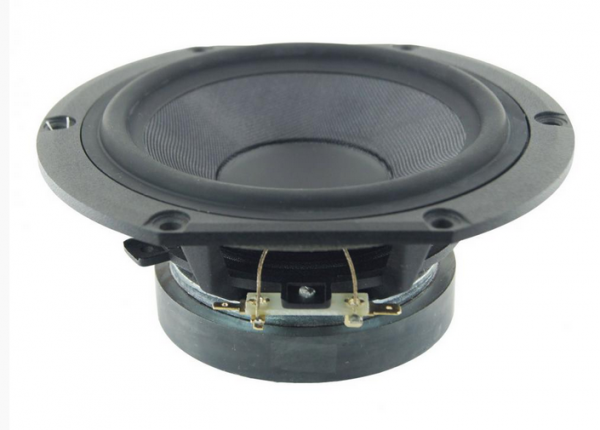

The Peerless HDS-134 Glassfibre 5.25 inch 8 ohm driver is a member of the high performance HDS family. A powerful ferrite magnet system is coupled to a finite element analysis designed suspension system, containing both a linear spider design and a rubber surround. The motor contains an aluminium shorting ring, which reduces coil inductance, thus providing both extended frequency response performance and reduced distortion. The long-throw voice coil ensures linear high excursion performance, needed for signal clarity. The cone necks are vented so as to reduce air compression effects under high excursion conditions. The cast aluminium basket offers structural rigidity, heat sinking capacity for the motor, and additional air venting under the spider so as to again reduce air compression effects. The cone in this model is a glass fibre composite, offering a unique visual and acoustic experience.



Specifications

  • power handling (continuous/programme) = 30 W

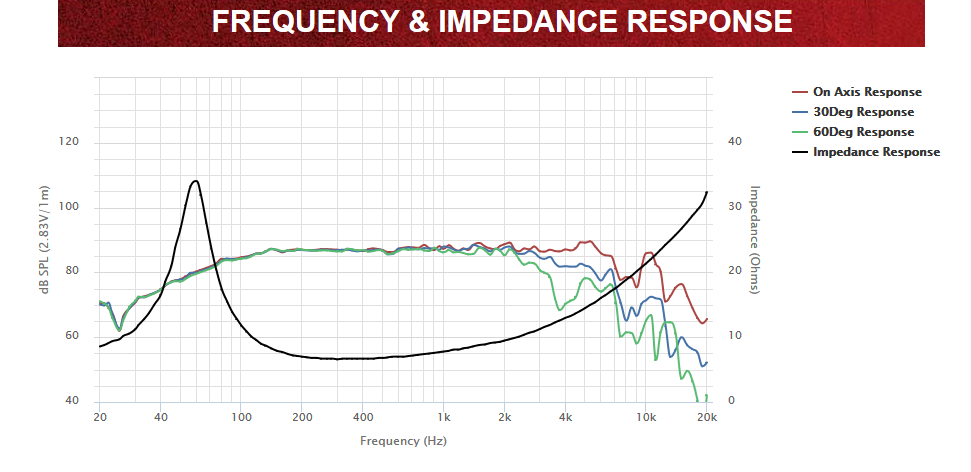

  • frequency range = 60-6000 Hz
  • resonance frequency fs = 66 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 87 dB (2,83V; 1m)
  • DC resistance Re = 5,99 Ohm
  • force factor BL = 6,42 N/A
  • voice coil inductance L = 0,33 mH
  • effective piston radiating area Sd = 89,9 cm2
  • effective mechanical mass incl. air load mms = 9,7 g
  • equivalent volume of compliance Vas = 6,81 l
  • total Q factor Qts = 0,48 (Qms=2,96, Qes=0,58)
  • voice coil diameter = 30 mm
  • maximum peak linear excursion vibration xlin = +/- 4,6 mm

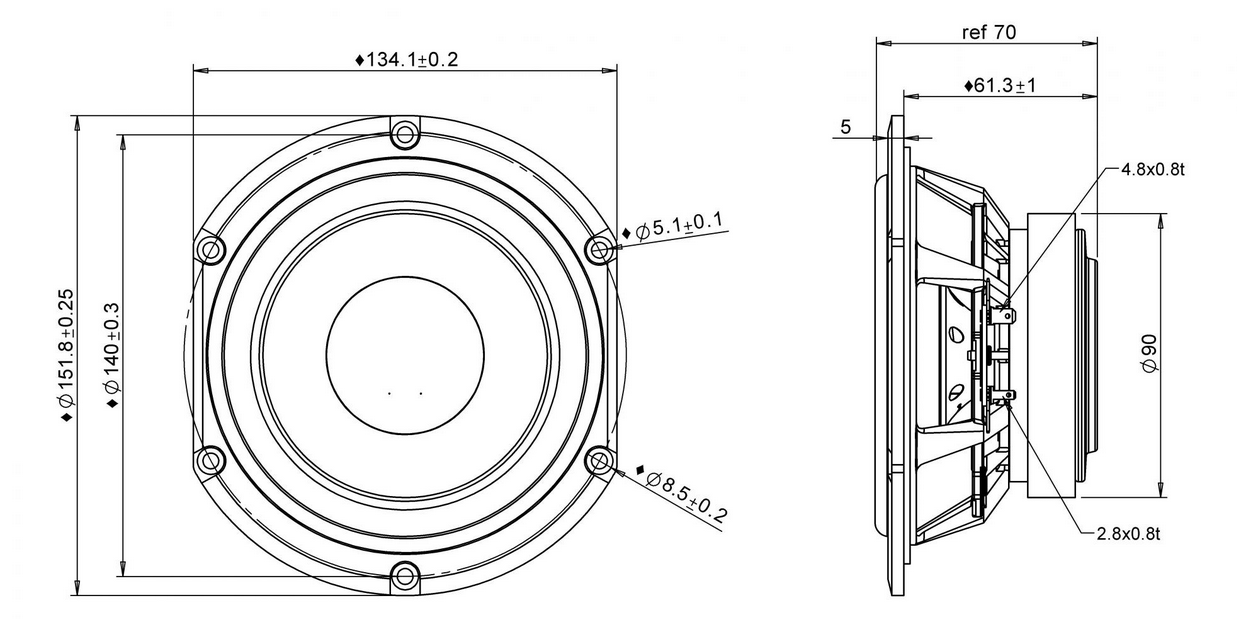

  • overall diameter d = 151,8 mm
  • mounting depth (not countersunk) t = 61,3 mm
