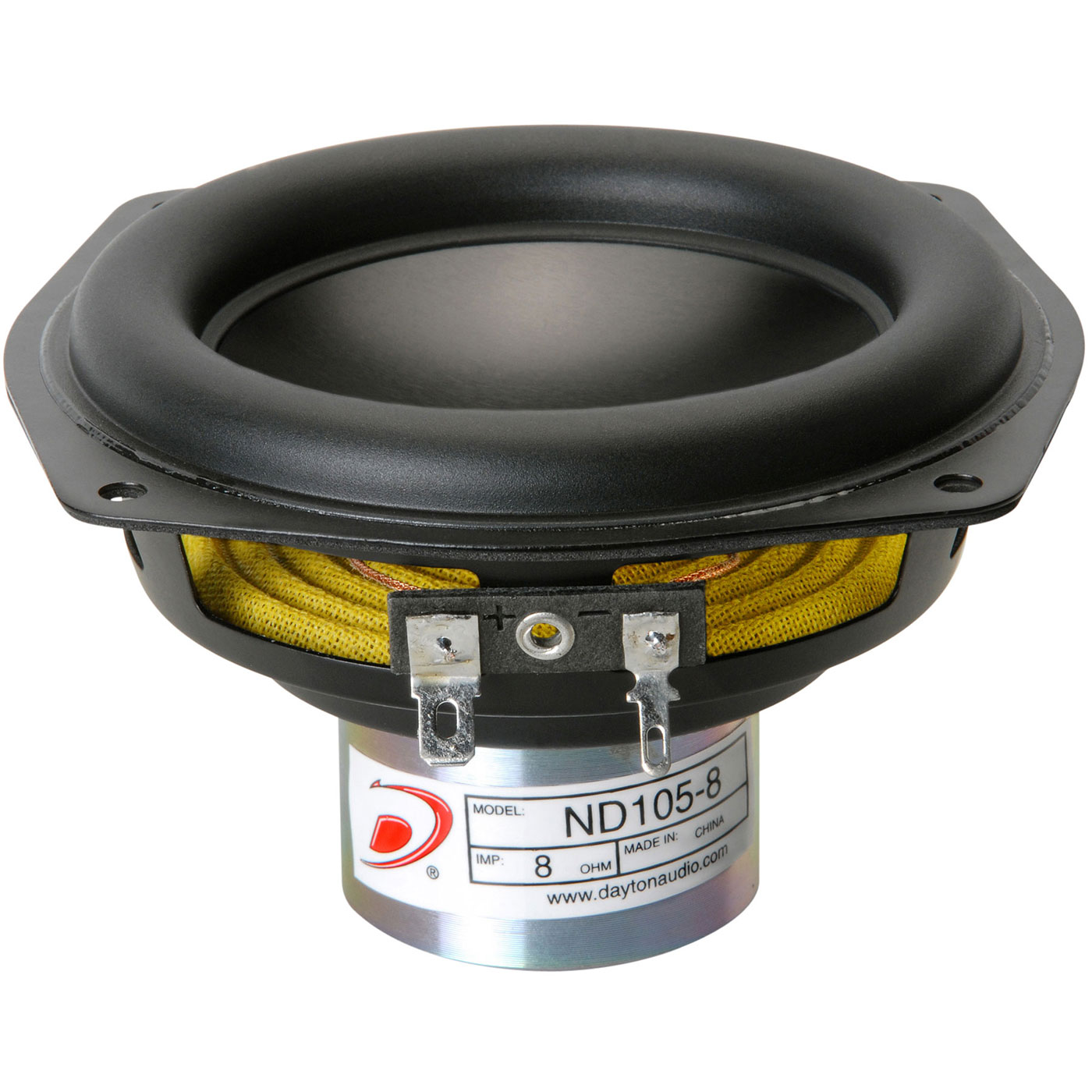

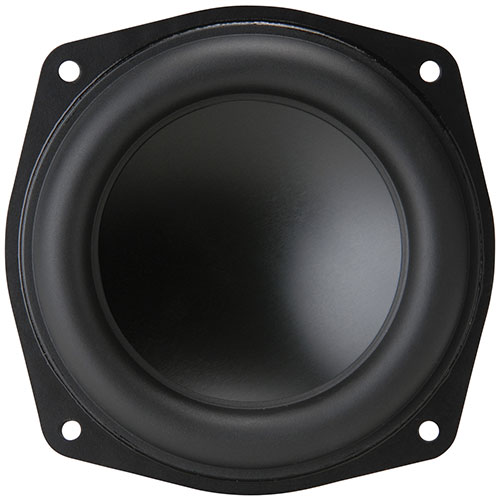

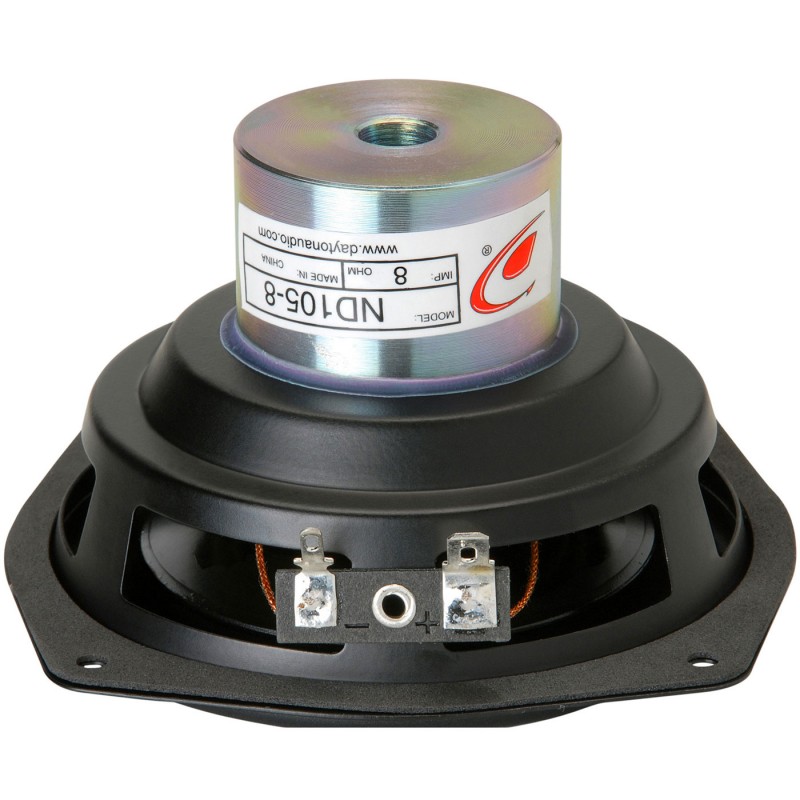

Dayton Audio ND105-8

€34.51 *

Prices incl. VAT plus shipping costs

Delivery time 10 Workdays

  • da-290-214
Dayton Audio's compact aluminum cone drivers demonstrate the latest advances in high-excursion... more
Product information "Dayton Audio ND105-8"
Dayton Audio's compact aluminum cone drivers demonstrate the latest advances in high-excursion design processes.

An efficient, low-distortion Neo-Balanced motor is combined with a rigid yet lightweight aluminum diaphragm, yielding impressive high-impact audio reproduction. Perfect for single point-source applications, or combined in multiples and line arrays.



Product Highlights

• Extended-range 60 Hz to 10 kHz performance
• Rubber-edged aluminum alloy cone
• Large excursion capability4 mm Xmax, 20 mm peak
• Self-shielded Neo-Balanced motor structure
• 1" 4-layer underhung voice coil with polyimide former
• 30 watts RMS power handling

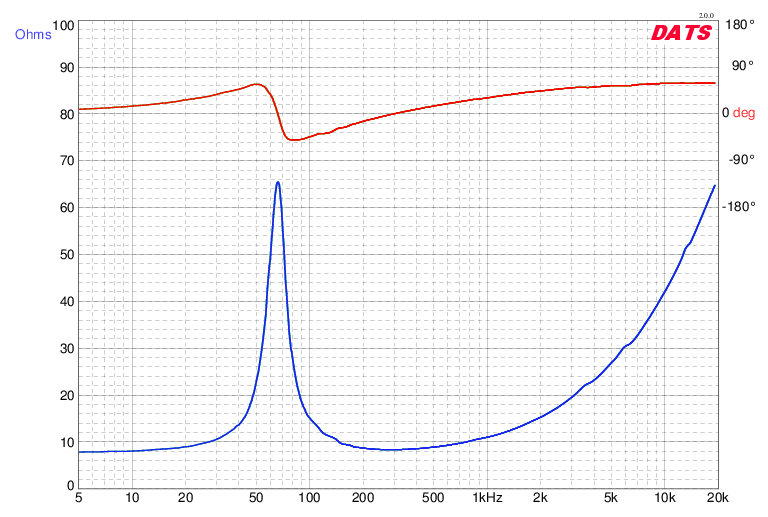

ND105-8 Specifications



Impedance 8 ohms

Re 7.7 ohms

Le 1.25 mH @ 1 kHz

Fs 66.6 Hz

Qms 5.57

Qes 0.74

Qts 0.66

Mms 6.8g

Cms 0.84 mm/N

Sd 51.5 cm²

Vd 20.6 cm³

BL 0.84 Tm

Vas 2.97 liters

Xmax 4.0 mm

VC Diameter 25 mm

SPL 82.7 dB @ 2.83V/1m

RMS Power Handling 30 watts

Usable Frequency Range (Hz) 60 - 10,000 Hz
