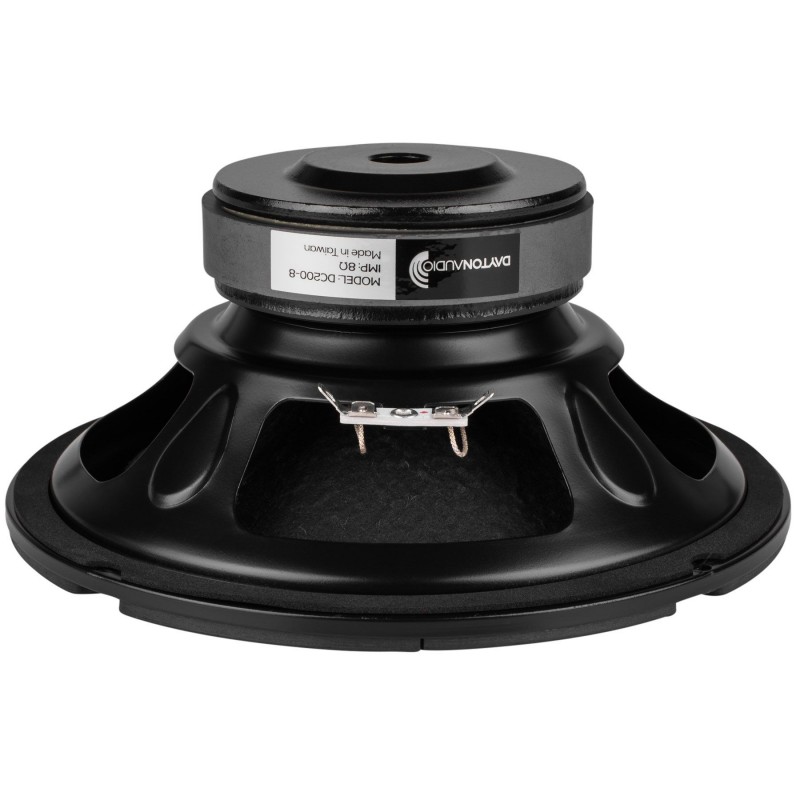

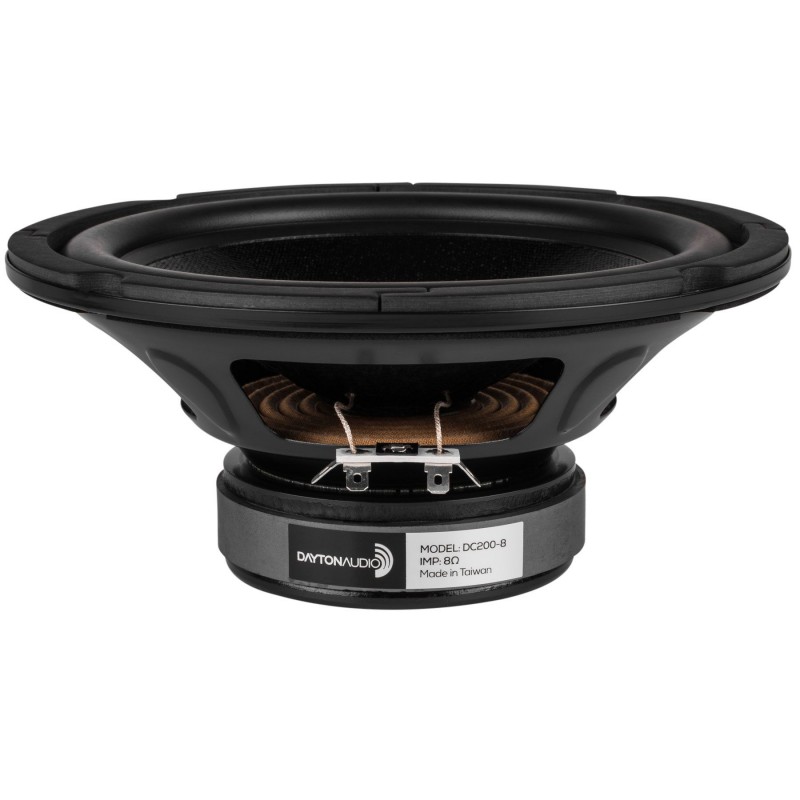

Dayton Audio DC200-8

€47.04 *

Prices incl. VAT plus shipping costs

Delivery time 7 Workdays

  • da-dc200-8
The Dayton Audio DC200-8 Classic Series 8" woofer achieves high levels of performance at a... more
Product information "Dayton Audio DC200-8"

The Dayton Audio DC200-8 Classic Series 8" woofer achieves high levels of performance at a reasonable price. It's perfect as the basis of a custom speaker project, or for repairs and upgrades.

Dayton Audio's DC200-8 Classic Series 8" woofer offers one of the best price/performance values available anywhere.



Specifications

  • power handling (continuous/programme) = 60 W

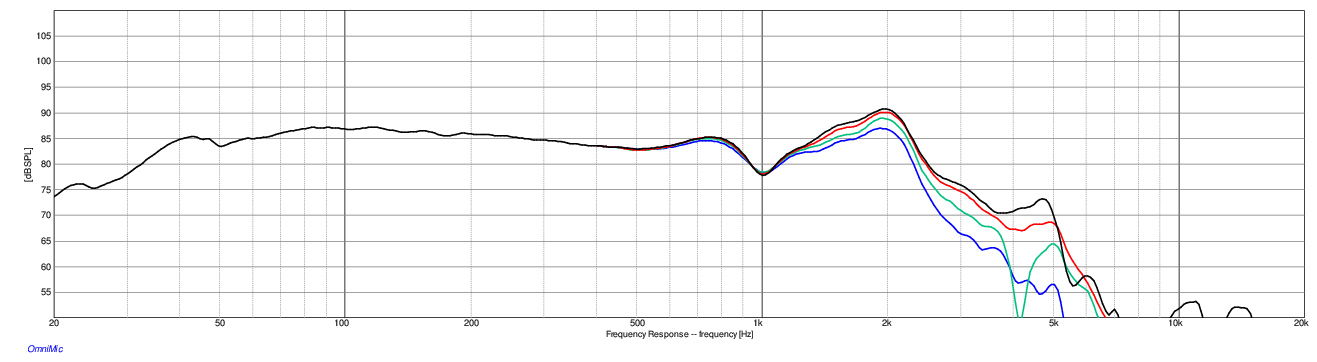

  • frequency range = 29-3000 Hz
  • resonance frequency fs = 31,0 Hz

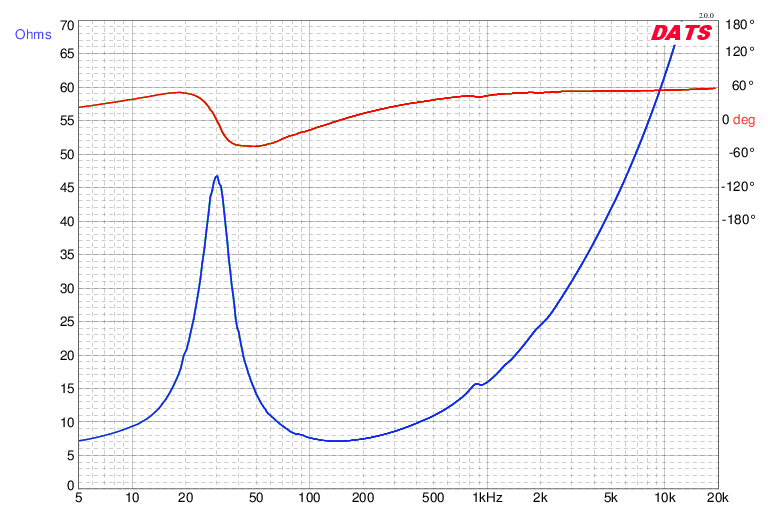

  • impedance R = 8 Ohm
  • sound pressure level SPL = 88,0 dB (2,83V; 1m)
  • DC resistance Re = 6,4 Ohm
  • force factor BL = 9,35 N/A
  • voice coil inductance L = 1,79 mH
  • effective piston radiating area Sd = 211,2 cm2
  • effective mechanical mass incl. air load mms = 32,82 g
  • equivalent volume of compliance Vas = 50,48 l
  • total Q factor Qts = 0,41 (Qms=2,96, Qes=0,47)
  • voice coil diameter = 35 mm
  • maximum peak linear excursion vibration xlin = +/- 4,5 mm

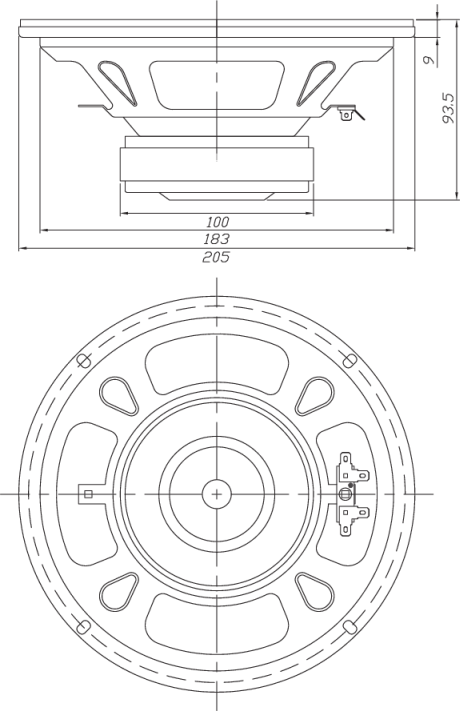

  • mounting diameter d = 183 mm
  • overall diameter d = 205 mm
  • mounting depth (not countersunk) t = 93,5 mm
