SB Acoustics SB16PFC25-8 6" Woofer Vented reinforced plastic chassis Proprietary cone... more
Product information "SB Acoustics SB16PFC25-8"

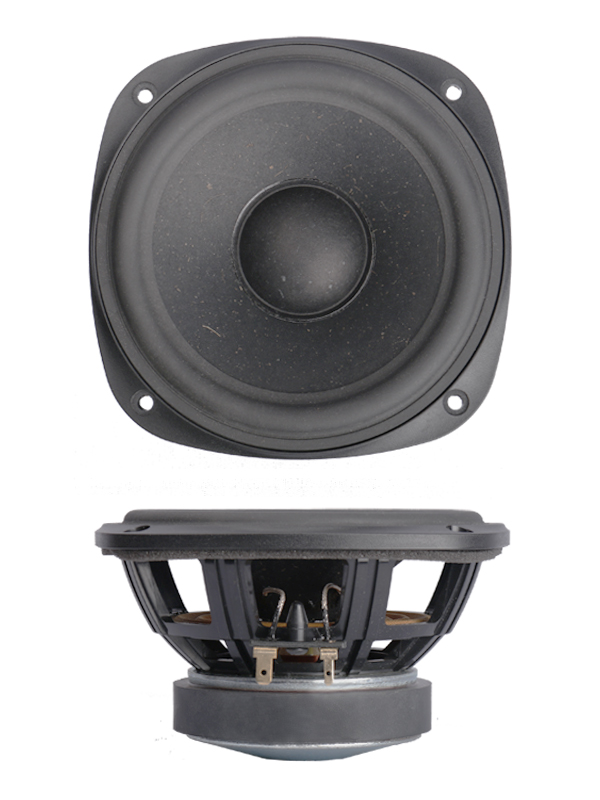

SB Acoustics SB16PFC25-8 6" Woofer
- Vented reinforced plastic chassis
- Proprietary cone material with natural fibers made in-house
- Soft low damping rubber surround for improved transient response
- Optimized motor system
- Vented coil former for low compression
- Non-resonant long life lead wires

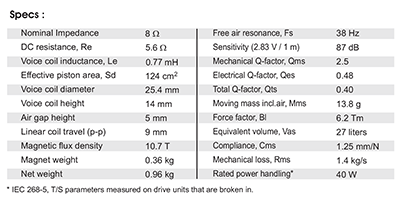

Specifications
- power handling (continuous/programme) = 40 W
- frequency range = 40-12000 Hz
- resonance frequency fs = 38 Hz
- impedance R = 8 Ohm
- sound pressure level SPL = 87 dB (2,83V; 1m)
- DC resistance Re = 5.6 Ohm
- force factor BL = 6.2 N/A
- voice coil inductance L = 0.77 mH
- effective piston radiating area Sd = 124 cm2
- effective mechanical mass incl. air load mms = 13.8 g
- equivalent volume of compliance Vas = 27 l
- total Q factor Qts = 0.40 (Qms=2.5, Qes=0.48)
- voice coil diameter = 25,4 mm

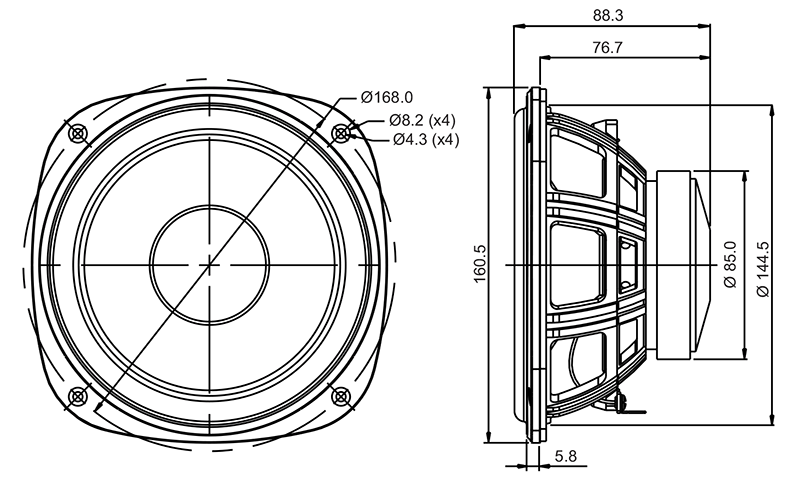

- mounting diameter d = 144.5 mm
- overall diameter d = 160.5mm
- mounting depth (not countersunk) t = 76.7 mm
