Visaton B 80 8 Ohm

€58.62 *

Prices incl. VAT plus shipping costs

Delivery time appr. 1-3 workdays

  • 1261
Visaton B 80 8 Ohm   8 cm (3.3") high-end full-range loudspeaker  with... more
Product information "Visaton B 80 8 Ohm"

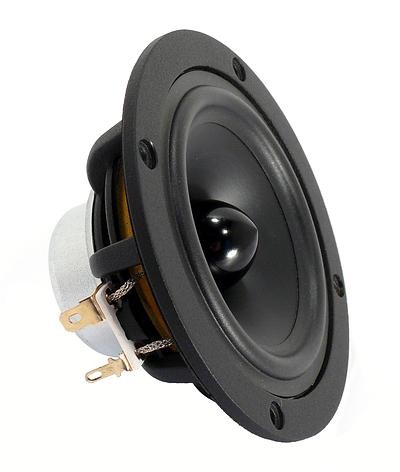

Visaton B 80 8 Ohm



8 cm (3.3") high-end full-range loudspeaker with excellent balanced response characteristics. Due to perfect accordance of the coated paper cone, the rear ventilated damper and the phase plug, as well as the strong and lightweight neodymium magnet, an extremely well-balanced frequency response with very low harmonic distortion and lowest possible mechanical losses comes into being. The B 80 8 OHM is ideal for small high-end shelf speakers or as a mid-high-range unit in high-end multi-way speakers.



Specifications

  • power handling (continuous/programme) = 30/50 W
  • frequency range = 80-20000 Hz
  • resonance frequency fs = 110 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 85 dB (2,83V; 1m)
  • DC resistance Re = 6,6 Ohm
  • force factor BL = 4,15 N/A
  • voice coil inductance L = 0,75 mH
  • effective piston radiating area Sd = 38,5 cm2
  • effective mechanical mass incl. air load mms = 2,8 g
  • equivalent volume of compliance Vas = 1,8 l
  • total Q factor Qts = 0,63 (Qms=6,53, Qes=0,69)
  • voice coil diameter = 25 mm
  • maximum peak linear excursion vibration xlin = +/- 2,2 mm

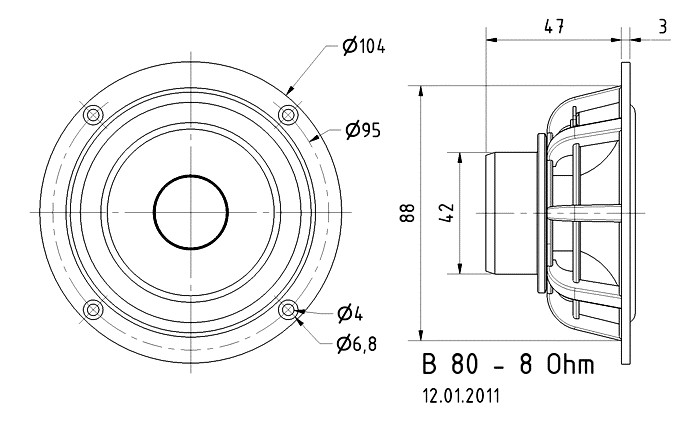

  • mounting diameter d = 87 mm
  • overall diameter d = 104,4 mm
  • mounting depth (not countersunk) t = 46 mm
