Highlights: 7 inch bass-midrange with high efficiency for 3 way designs large sized... more

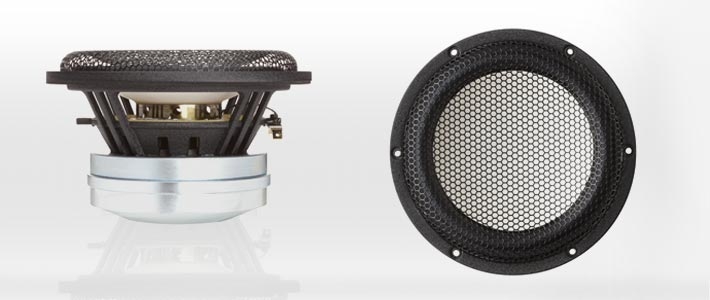

Product information "Accuton C173-6-096"
- 7 inch bass-midrange with high efficiency for 3 way designs
- large sized voice coil with 55mm titanium voice coil former for high midrange resolution
- big, underhung 120mm Neodymium magnet system for very low distortion
- power handling (continuous/programme) = 120 W
- frequency range = 40-3000 Hz
- resonance frequency fs = 39 Hz
- impedance R = 8 Ohm
- sound pressure level SPL = 94 dB (2,83V; 1m)
- DC resistance Re = 6,61 Ohm
- force factor BL = 11,5 N/A
- voice coil inductance L = 0,25 mH
- effective piston radiating area Sd = 130 cm2
- effective mechanical mass incl. air load mms = 14,5 g
- equivalent volume of compliance Vas = 28 l
- total Q factor Qts = 0,17 (Qms=3,9, Qes=0,18)
- voice coil diameter = 55 mm
- maximum peak linear excursion vibration xlin = +/- 5 mm
- mounting diameter d = 145,60 mm
- overall diameter d = 173 mm
- mounting depth (not countersunk) t = 96,35 mm
- mass m = 3,44 kg
