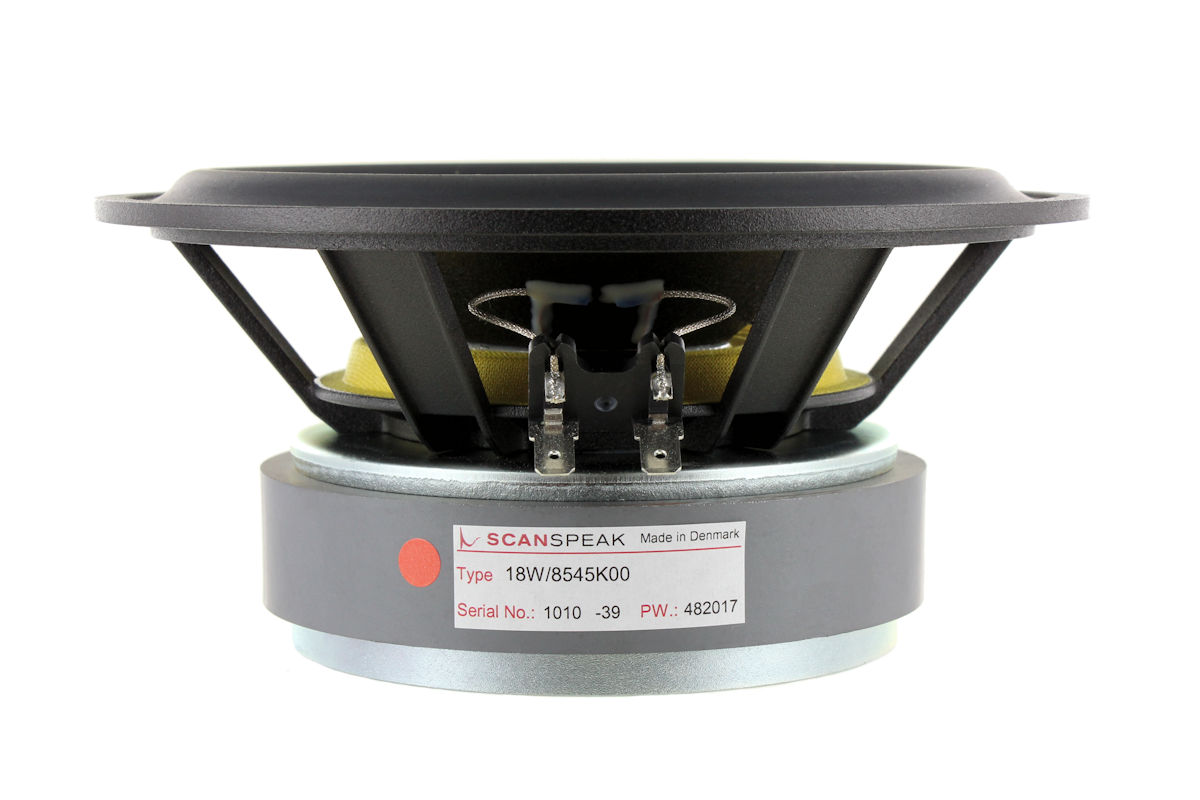

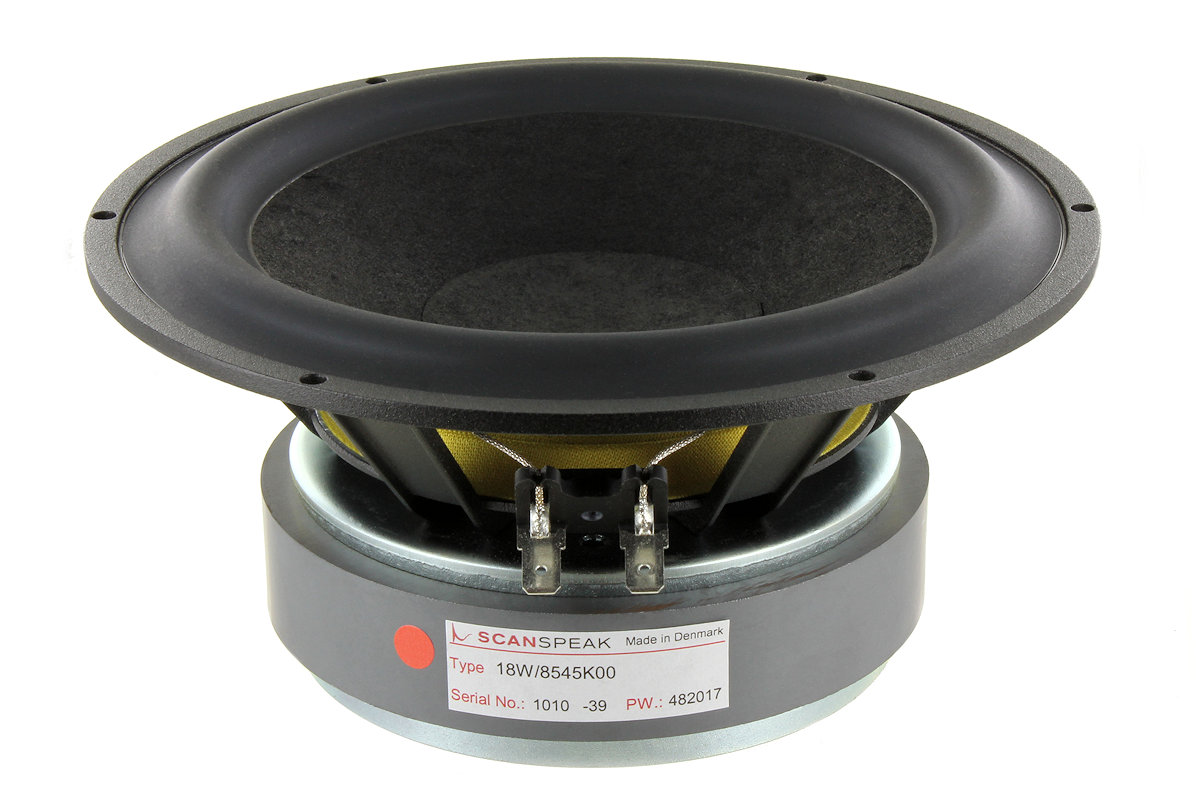

Scan-Speak 18W/8545K00

€151.69 *

Prices incl. VAT plus shipping costs

Delivery time 1-2 Workdays

  • 7385451
This Scan-Speak 18W/8545K00 Fiberglass Midwoofer features the heavily damped and carbon fibre... more
Product information "Scan-Speak 18W/8545K00"

This Scan-Speak 18W/8545K00 Fiberglass Midwoofer features the heavily damped and carbon fibre impregnated paper cone that dampens resonances normally associated with stiff cones. The magnet system is the new SD-1 system which eliminates modulation and dynamic distortion, as well as clipping distortion created as it exceeds its maximum linear excursion. This driver uses a fiberglass voice coil former.



Specifications

  • power handling (continuous/programme) = 100 W

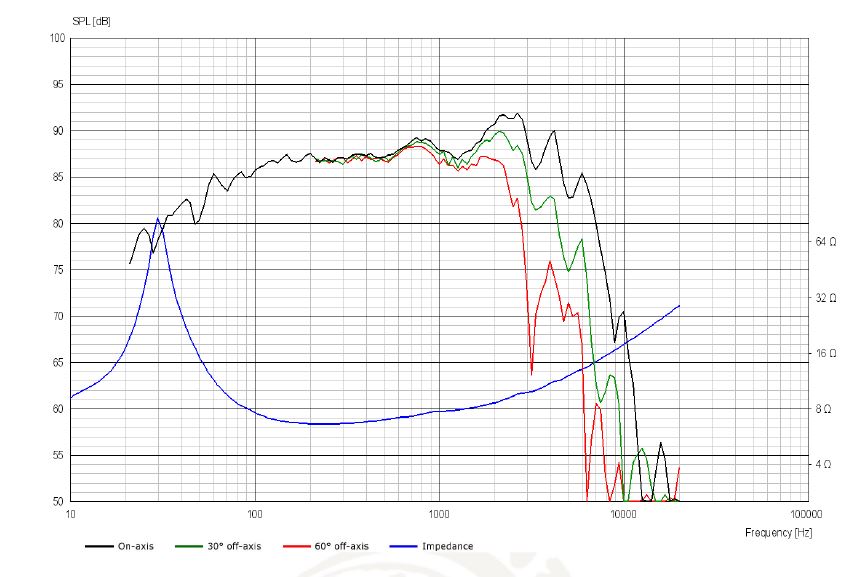

  • frequency range = 28-3000 Hz
  • resonance frequency fs = 28 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 87,5 dB (2,83V; 1m)
  • DC resistance Re = 5,5 Ohm
  • force factor BL = 8,2 N/A
  • voice coil inductance L = 0,4 mH
  • effective piston radiating area Sd = 145 cm2
  • effective mechanical mass incl. air load mms = 20,5 g
  • equivalent volume of compliance Vas = 46,4 l
  • total Q factor Qts = 0,28 (Qms=5,2, Qes=0,3)
  • voice coil diameter = 42 mm
  • maximum peak linear excursion vibration xlin = +/- 6,5 mm

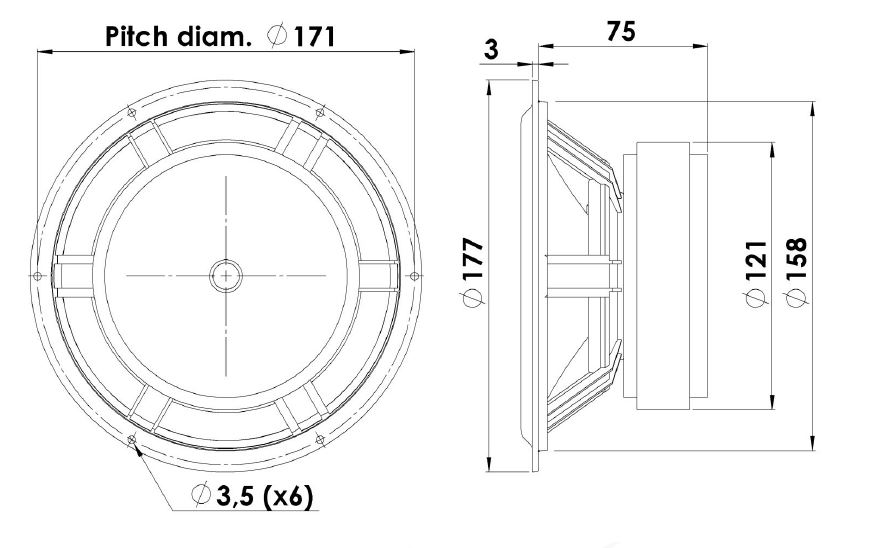

  • mounting diameter d = 158 mm
  • overall diameter d = 177 mm
  • mounting depth (not countersunk) t = 78 mm
