Accuton C90-6-724

€475.00 *

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

  • ac-7490724
The C90 - 6 - 724 is a 5 inch bass - midrange driver with ceramic dome, being the first in an... more
Product information "Accuton C90-6-724"

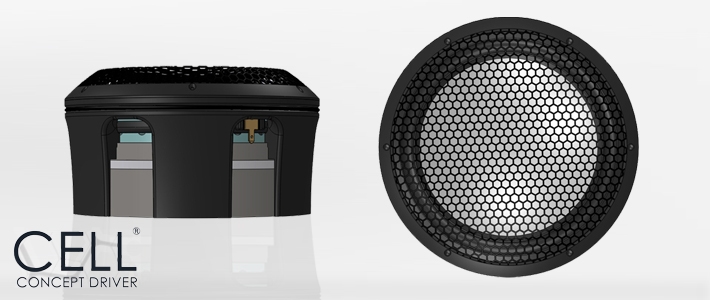

The C90 - 6 - 724 is a 5 inch bass - midrange driver with ceramic dome, being the first in an entirely new approach to accuton speaker design. An ideal acoustical center has been achieved, which is identical with our tweeters. Its novel designed underhung motor does not cover the backside of the dome, eliminating the chance for reflections and energy storage. A proprietary clamping technique provides easy mounting and adapting to individual frontplates. The low loss rubber surround and a thin fabric spider center the moving parts with high linearity. We recommend our C90-6-724 for an application from 60 Hz – 6000 Hz.



Specifications

  • power handling (continuous/programme) = 100 W

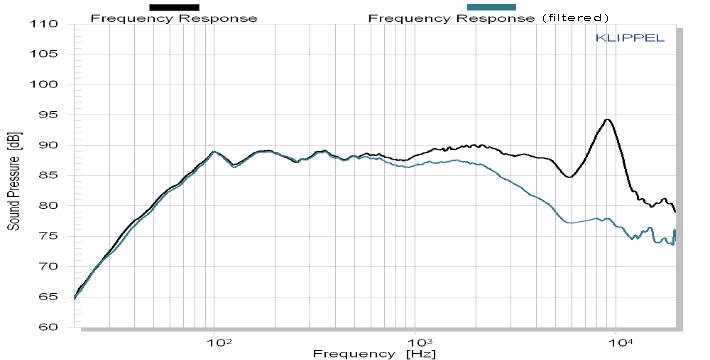

  • frequency range = 70-5000 Hz
  • resonance frequency fs = 65 Hz

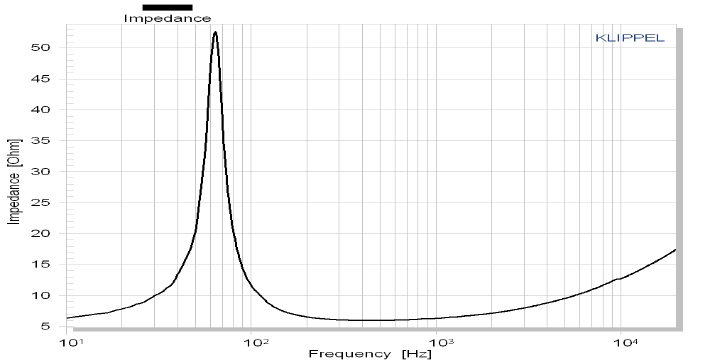

  • impedance R = 8 Ohm
  • sound pressure level SPL = 89 dB (2,83V; 1m)
  • DC resistance Re = 5,8 Ohm
  • force factor BL = 6,1 N/A
  • voice coil inductance L = 0,14 mH
  • effective piston radiating area Sd = 81 cm2
  • effective mechanical mass incl. air load mms = 8,9 g
  • equivalent volume of compliance Vas = 5,1 l
  • total Q factor Qts = 0,52 (Qms=5,47, Qes=0,58)
  • voice coil diameter = 80 mm
  • maximum peak linear excursion vibration xlin = +/- 4 mm
  • mounting diameter d = 124 mm
  • overall diameter d = 123,6 mm
  • mounting depth (not countersunk) t = 55 mm
  • mass m = 1,65 kg
