Visaton AL 200   20 cm (8") High-End woofer with stiff aluminium cone, solid... more
Product information "Visaton AL 200"

Visaton AL 200

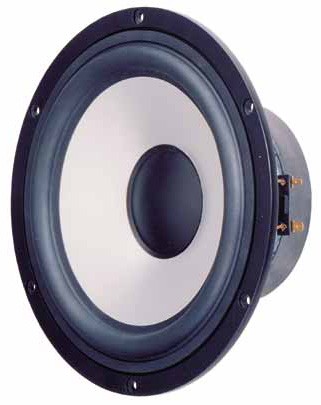

20 cm (8") High-End woofer with stiff aluminium cone, solid aluminium die-cast basket and elastic rubber surround. Extremely low mechanical and electrical losses due to vented pole plate, vented damper and capton voice coil carrier. Fast pulse response due to light weight aluminium cone. Suitable for 2- and 3-way high end combinations and as low-midrange driver in 4-way high end systems.



Specifications

  • power handling (continuous/programme) = 120/180 W

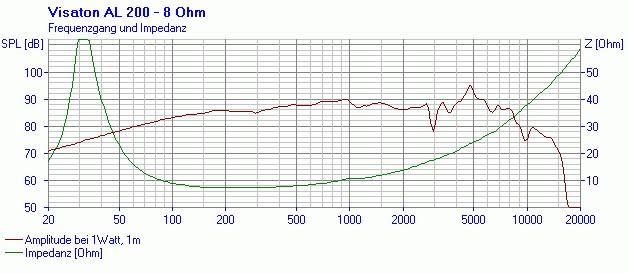

  • frequency range = 40-9000 Hz
  • resonance frequency fs = 32 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 88 dB (2,83V; 1m)
  • DC resistance Re = 6,7 Ohm
  • force factor BL = 8,82 N/A
  • voice coil inductance L = 1,2 mH
  • effective piston radiating area Sd = 216 cm2
  • effective mechanical mass incl. air load mms = 21 g
  • equivalent volume of compliance Vas = 77 l
  • total Q factor Qts = 0,32 (Qms=3,92, Qes=0,35)
  • voice coil diameter = 38 mm
  • maximum peak linear excursion vibration xlin = +/- 7 mm

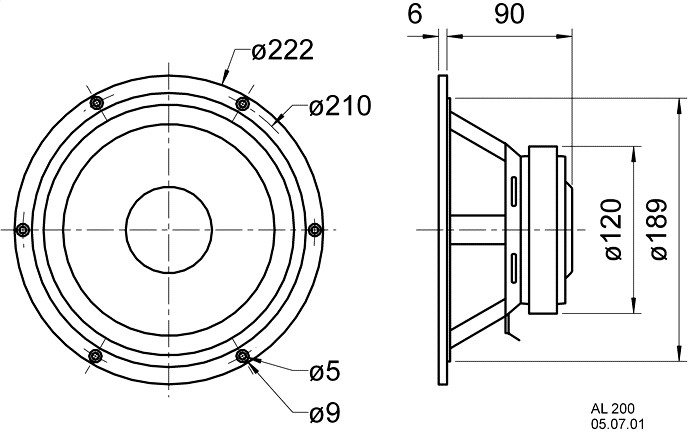

  • mounting diameter d = 189 mm
  • overall diameter d = 222 mm
  • mounting depth (not countersunk) t = 90 mm
