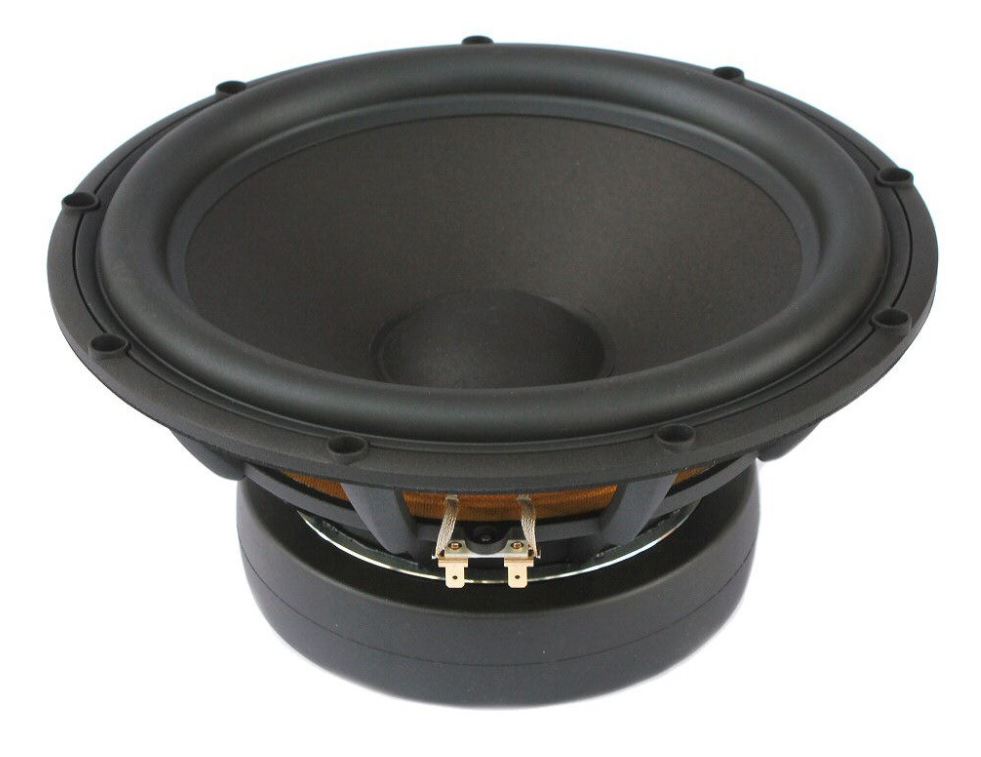

Scan-Speak 32W/4878T01

€565.78 *

Prices incl. VAT plus shipping costs

Delivery time 1-2 Workdays

  • 7348781
The 32W/4878T01 is a powerful woofer designed by Scan-speak. Its large 3” voice coil and low... more
Product information "Scan-Speak 32W/4878T01"

The 32W/4878T01 is a powerful woofer designed by Scan-speak. Its large 3” voice coil and low resonance frequency is it perfect to reproduce low to mid frequencies with high efficiency. It features a brand new type of paper-sandwich cone with a special foam filling technology (patented) that gives the cone very high stiffness and relative low weight. The motor system has heavy duty copper sleeves for optimizing eddy currents and minimizing self-induction.



KEY FEATURES:
- Paper sandwich cone with Patented foam filling
- Patented Symmetrical Drive motor
- Spider with balanced woven in tinsel leads
- Linear excursion (+/-7 mm) with high efficiency
- 3” Voice coil, Titanium former and paper reinforced
- Stiff and strong die cast aluminium chassis



Specifications

  • power handling (continuous/programme) = 150/400 W

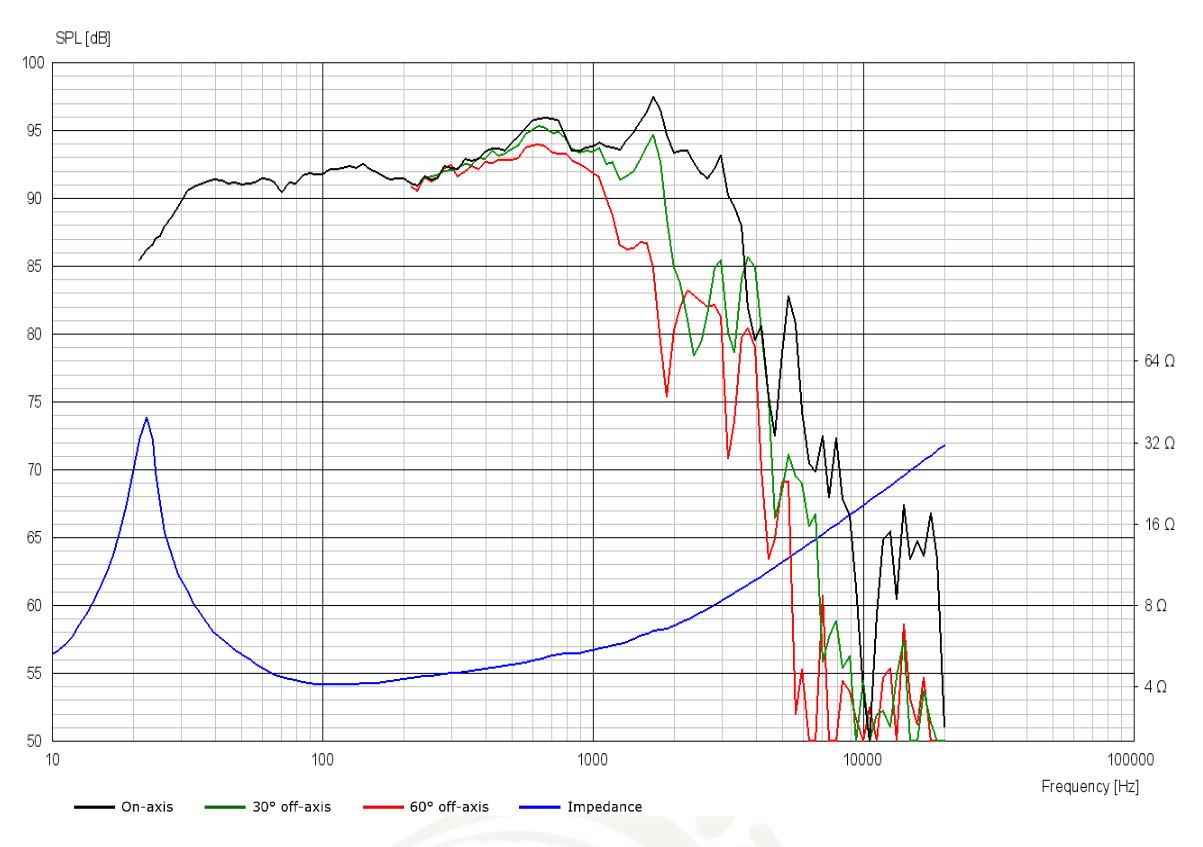

  • frequency range = 15-400 Hz
  • resonance frequency fs = 23 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 92 dB (2,83V; 1m)
  • DC resistance Re = 3,1 Ohm
  • force factor BL = 13 N/A
  • voice coil inductance L = 0,3 mH
  • effective piston radiating area Sd = 531 cm2
  • effective mechanical mass incl. air load mms = 112 g
  • equivalent volume of compliance Vas = 170 l
  • total Q factor Qts = 0,28 (Qms=6, Qes=0,30)
  • voice coil diameter = 75 mm
  • maximum peak linear excursion vibration xlin = +/- 7 mm

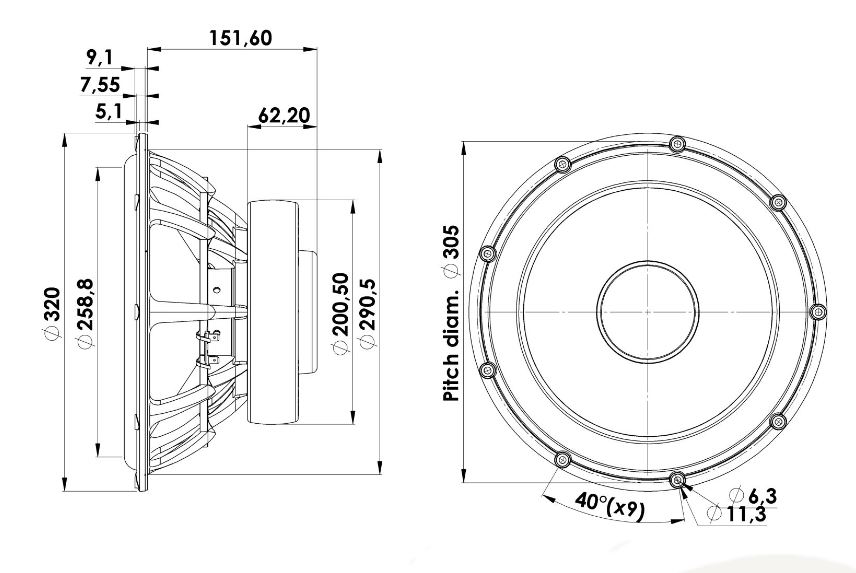

  • mounting diameter d = 290,5 mm
  • overall diameter d = 320 mm
  • mounting depth (not countersunk) t = 151,6 mm
