Seas A26RE4 H1411-08

€149.27 *

Prices incl. VAT plus shipping costs

Delivery time appr. 1-3 workdays

  • 1381080
Seas A26RE4 H1411-08 Paper Cone Woofer Classical paper cone and matching natural rubber... more
Product information "Seas A26RE4 H1411-08"

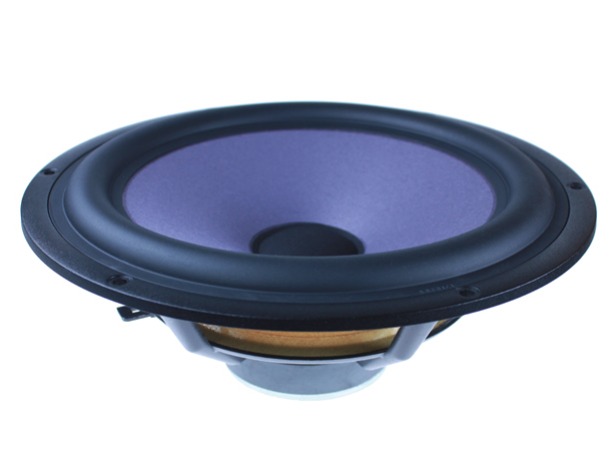

Seas A26RE4 H1411-08 Paper Cone Woofer

Classical paper cone and matching natural rubber surround produce a well behaved roll off characteristic and reduce potential resonance problems.

1.5” diameter high temperature voice coil with black anodized aluminium coil former gives high power handling and reduced power compression.

Four layer voice coil provides a well behaved roll off characteristic.

Extremely stiff and stable injection moulded metal basket keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflection, air flow noise and cavity resonance to a minimum.



A26RE4 Specifications

  • power handling (continuous/programme) = 80/300 W

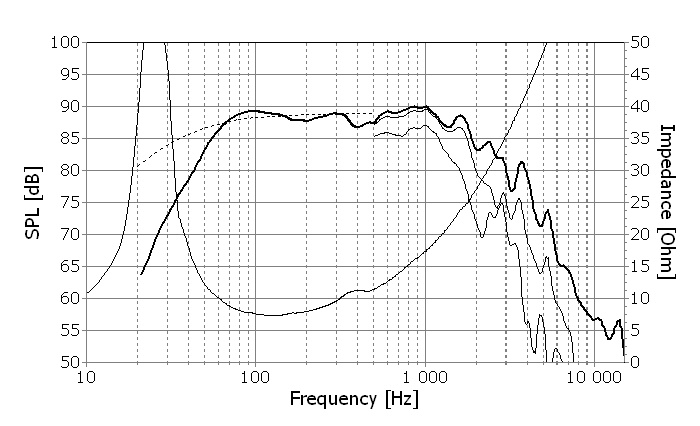

  • frequency range = 20-1500 Hz
  • resonance frequency fs = 25 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 89 dB (2,83V; 1m)
  • DC resistance Re = 6,3 Ohm
  • force factor BL = 9,7 N/A
  • voice coil inductance L = 3,8 mH
  • effective piston radiating area Sd = 350 cm2
  • effective mechanical mass incl. air load mms = 37,4 g
  • equivalent volume of compliance Vas = 169 l
  • total Q factor Qts = 0.39 (Qms=3.84, Qes=0.43)
  • voice coil diameter = 35 mm
  • maximum peak linear excursion vibration xlin = +/- 4 mm

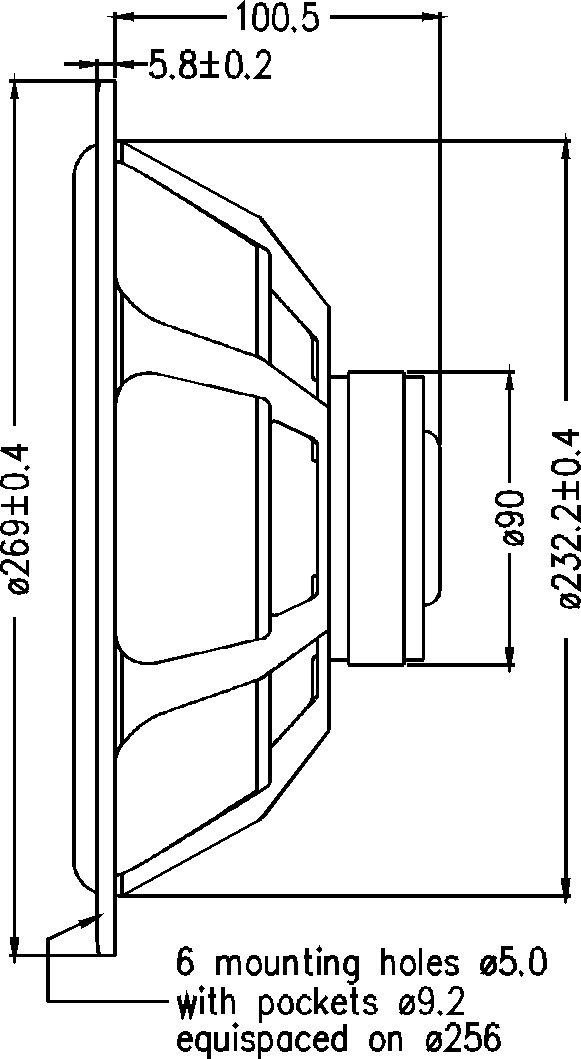

  • mounting diameter d = 232,2 mm
  • overall diameter d = 269 mm
  • mounting depth (not countersunk) t = 100,5 mm
