7 inch bass-midrange for small bookshelf monitors or slim floorstanders medium sized voice... more

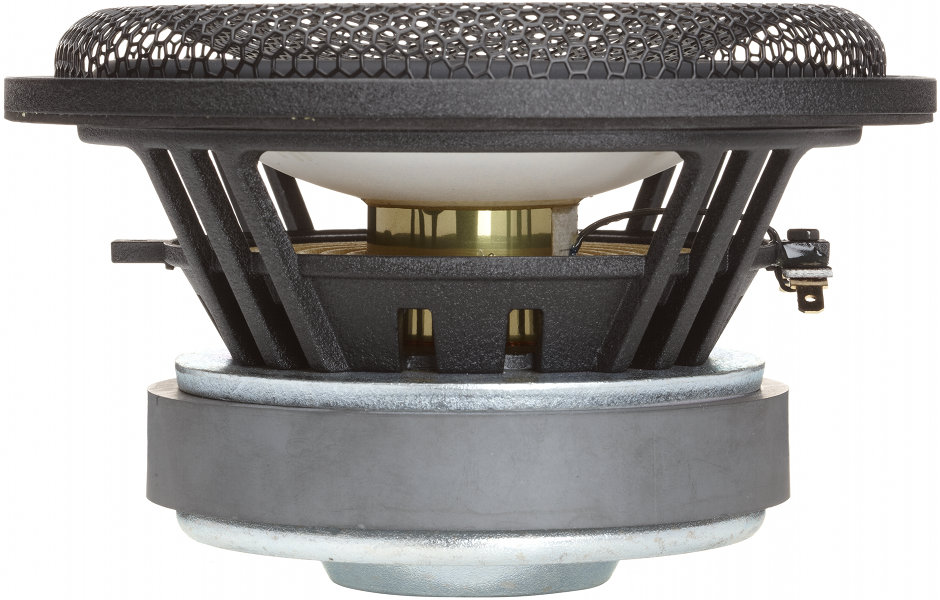

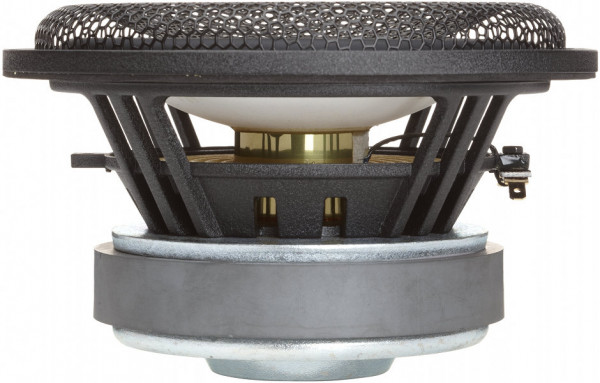

Product information "Accuton C173-6-191"
7 inch bass-midrange for small bookshelf monitors or slim floorstanders
medium sized voice coil with 38mm titanium voice coil former for high midrange resolution
long excursion design for high SPL capabilities
successor to C173-6-095 - higher excursion, smaller box size
Specifications
- power handling (continuous/programme) = 120 W

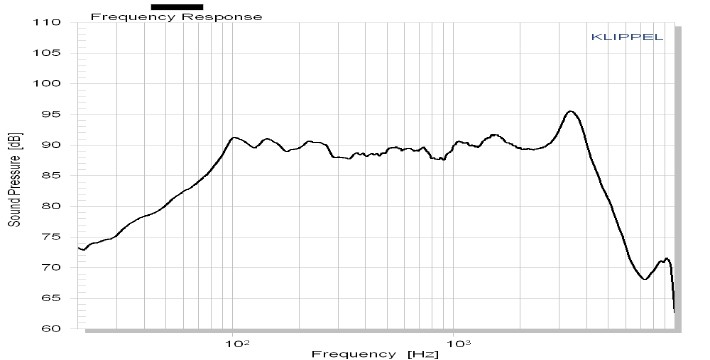

- frequency range = 33-2500 Hz
- resonance frequency fs = 33 Hz

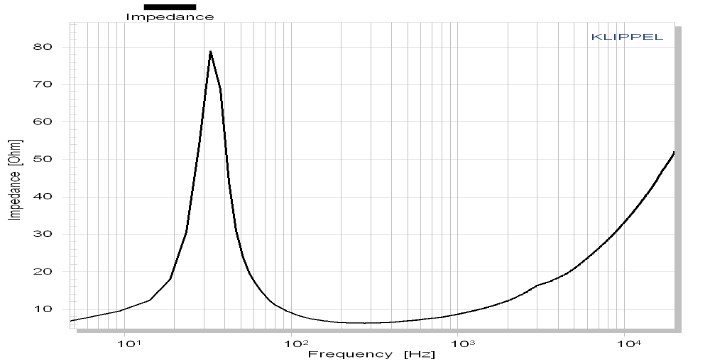

- impedance R = 8 Ohm
- sound pressure level SPL = 88 dB (2,83V; 1m)
- DC resistance Re = 5,8 Ohm
- force factor BL = 8,5 N/A
- voice coil inductance L = 0,7 mH
- effective piston radiating area Sd = 130 cm2
- effective mechanical mass incl. air load mms = 18 g
- equivalent volume of compliance Vas = 33 l
- total Q factor Qts = 0,31 (Qms=5,3, Qes=0,33)
- voice coil diameter = 38 mm
- maximum peak linear excursion vibration xlin = +/- 5 mm
- mounting diameter d = 145,6 mm
- overall diameter d = 173 mm
- mounting depth (not countersunk) t = 94,5 mm
- mass m = 2,28 kg
