The AS190-9-252 is an 8 inch bass driver with aluminum honeycomb sandwich dome, being the first... more
Product information "Accuton AS190-9-251"

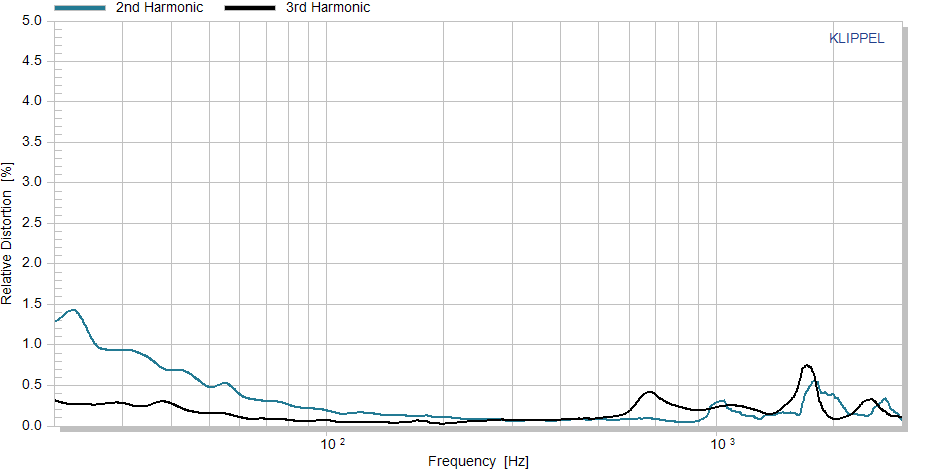

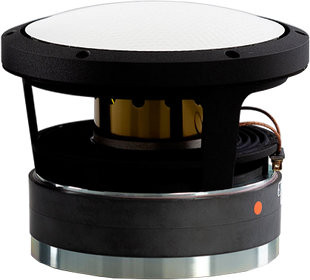

The AS190-9-252 is an 8 inch bass driver with aluminum honeycomb sandwich dome, being the first in an entirely new approach to accuton speaker design. An ideal acoustical center has been achieved, which is identical with our CELL tweeters and midranges. Its novel designed overhung motor combines the advantages of traditional over- and underhung designs, delivering high linear excursion and ultra low distortion. An exceptionally hard aluminum sandwich dome was developed for the CELL bass drivers that allows for negligible delay and energy storage. The hidden surround serves for reduced outer diameter and linear excursion of +/- 16mm. A new developed spider shape makes huge excursion without compression possible.
- power handling (continuous/programme) = 250 W

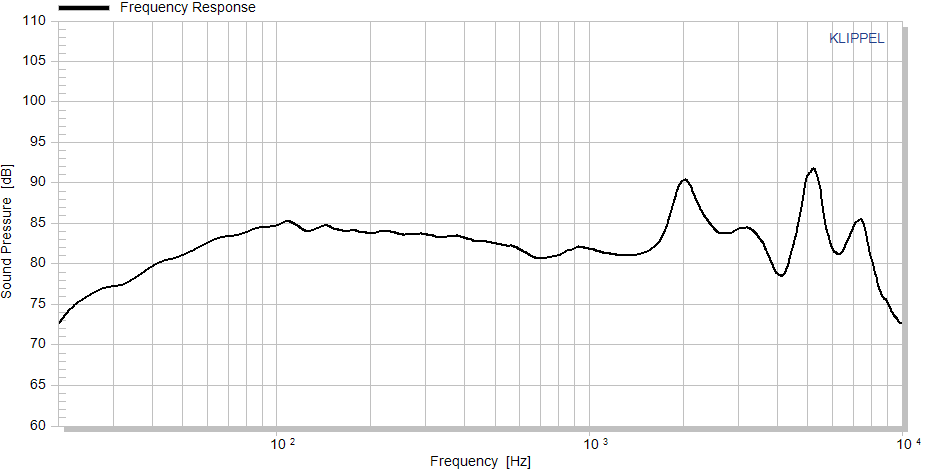

- frequency range = 30-1000 Hz
- resonance frequency fs = 33,4 Hz

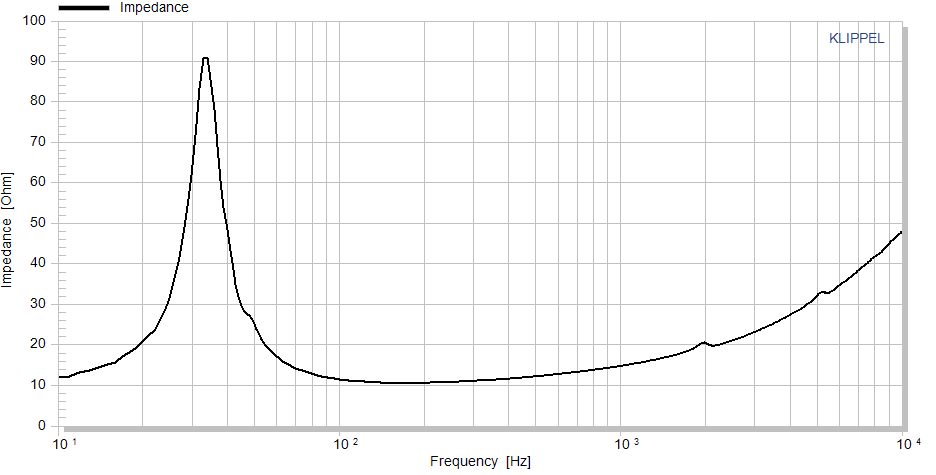

- impedance R = 12 Ohm
- sound pressure level SPL = 84 dB (2,83V; 1m)
- DC resistance Re = 8,6 Ohm
- force factor BL = 13,5 N/A
- voice coil inductance L = 1,05 mH
- effective piston radiating area Sd = 202 cm2
- effective mechanical mass incl. air load mms = 49,4 g
- equivalent volume of compliance Vas = 26,7 l
- total Q factor Qts = 0,44 (Qms=4,75, Qes=0,49)
- voice coil diameter = 78 mm
- maximum peak linear excursion vibration xlin = +/- 9 mm
- mounting diameter d = 170 mm
- overall diameter d = 190 mm
- mounting depth (not countersunk) t = 137 mm
- mass m = 7 kg
