Monacor SAM-500D


Active Subwoofer Modules for the Digital Age


Due to state-of-the-art technology in the digital D class, the digital active subwoofer modules from IMG Stage Line provide a powerful bass reproduction in self-built subwoofer systems. The components feature a high power efficiency and provide an energy-saving operation. The lightweight design of these models which are available at an attractive price ensures a low total weight of the speaker system.

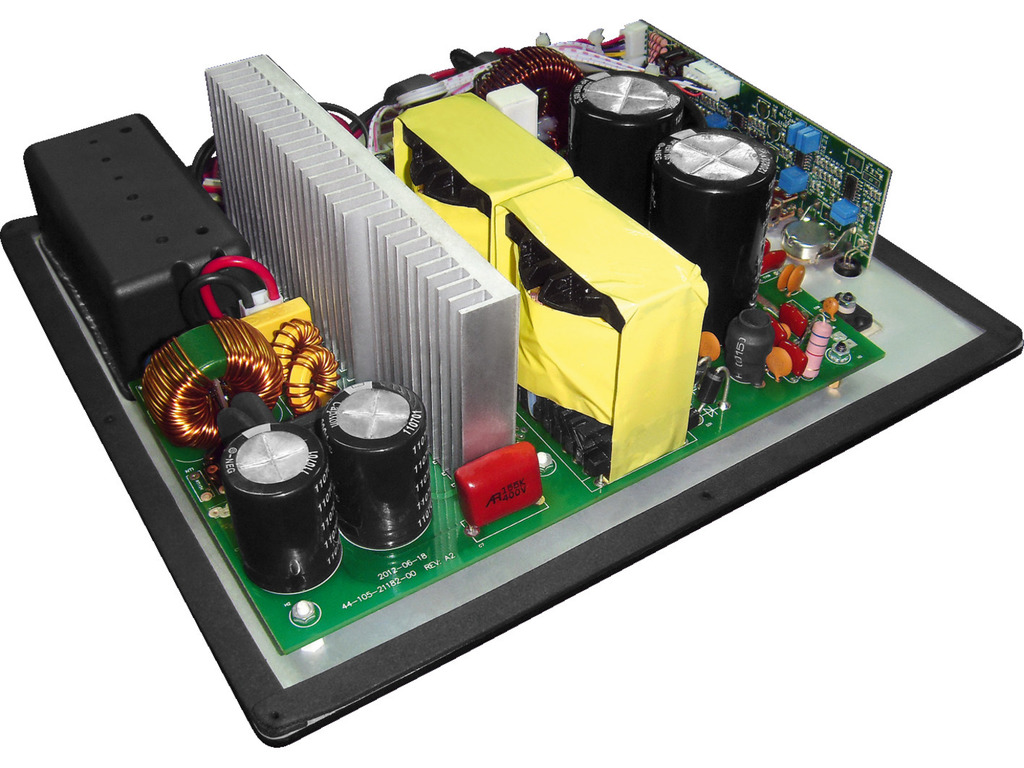

Digital active subwoofer module


- Output power rms 4Ω: 500WRMS

- Output power rms 8Ω: 250WRMS

- Music output power 4Ω: 700WMAX

- Music output power 8Ω: 350WMAX

- THD at rms power: < 1%

- Frequency range, full range: -

- Frequency range, satellite: -

- Frequency range, subwoofer: 20Hz - (var. 40-200Hz)

- Sub-boost: +3dB at 40Hz

- Output impedance: 4-8Ω

- Input impedance: 22kΩ

- Max. input voltage:

- Line in: 7V max.

- High power in : -

- Max. power of high level input 4Ω: -
- Max. power of high-level input 8Ω: -
- S/N ratio: > 70dB
- Power consumption, no load: 38VA
- Power consumption, stand-by: < 0.5W
- Stand-by activation time: -
- Power supply: 230V˜/50Hz/840VA
- Required mounting cutout: 225x248mm
- Mounting depth w/o front panel: 76mm
- Dimensions: 251x270x90mm
- Weight: 2.5kg

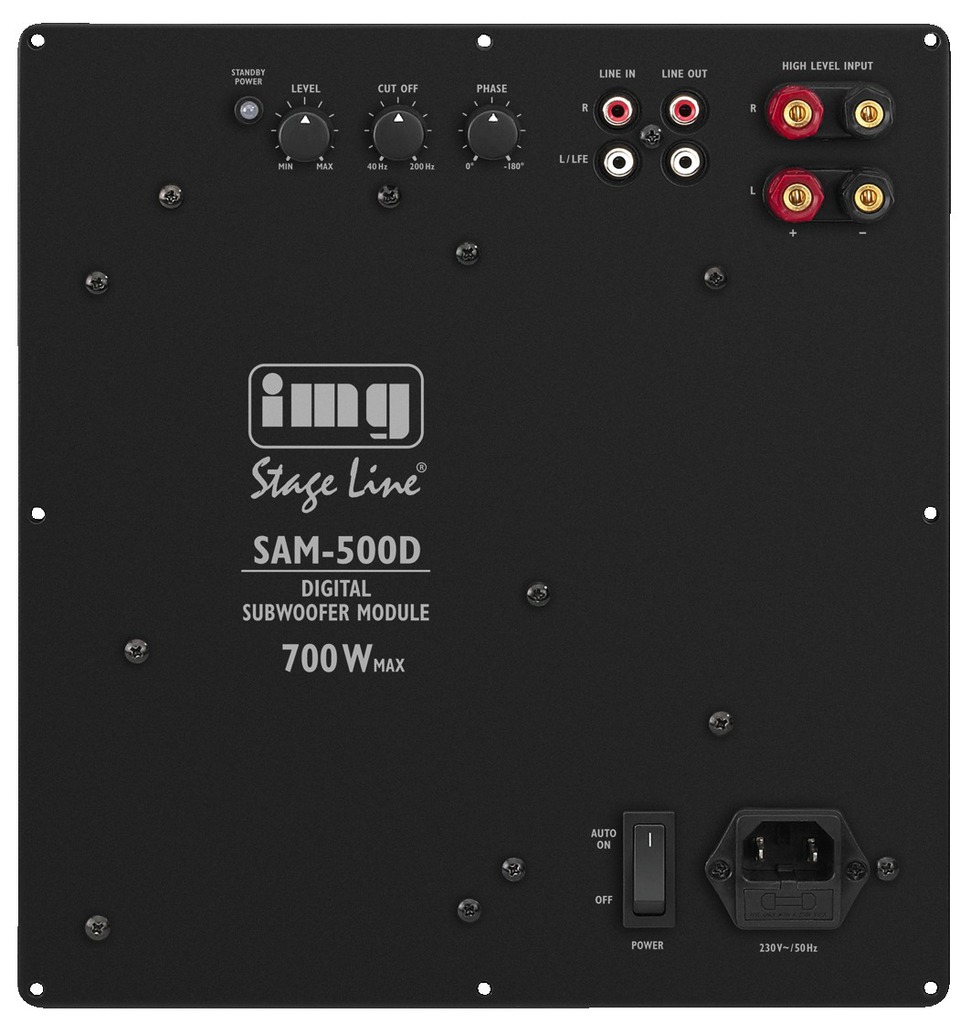

- Line in: 1 x RCA
- High power in: 1 x speaker terminal
- Line out: 1 x RCA
- Volume control: X
- Freq. cutoff control: X
- Phase control: X
- Automatic switch-on: X
- Mains switch: X
