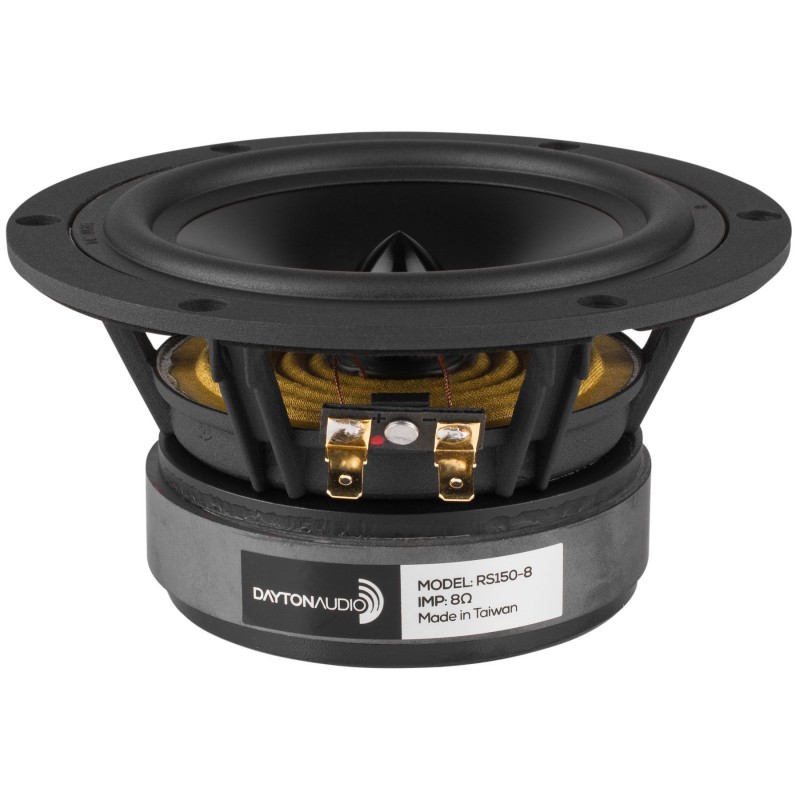

Dayton Audio RS150-8

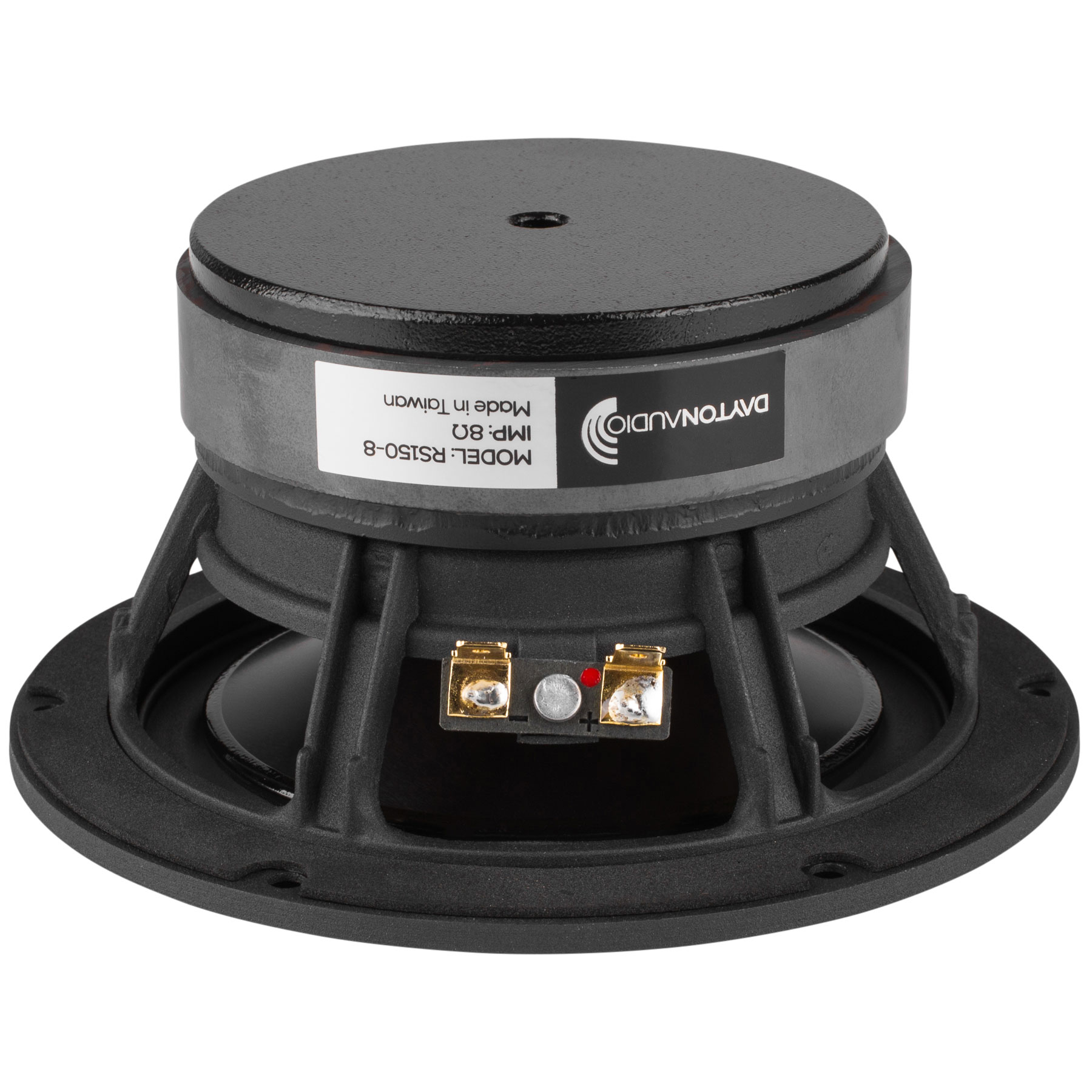

Dayton Audio RS150-8 back

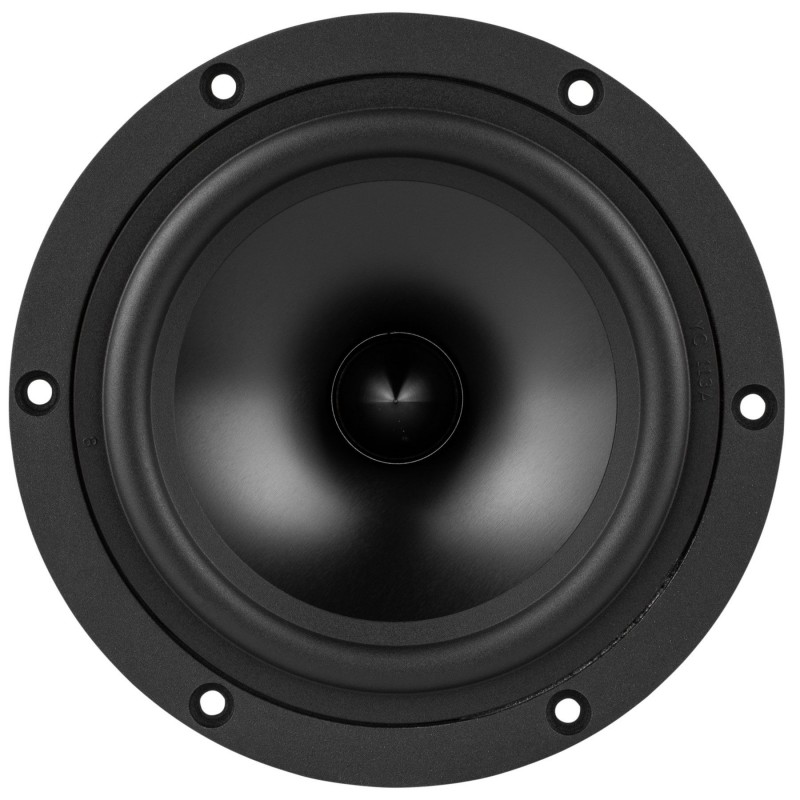

Dayton Audio RS150-8 front

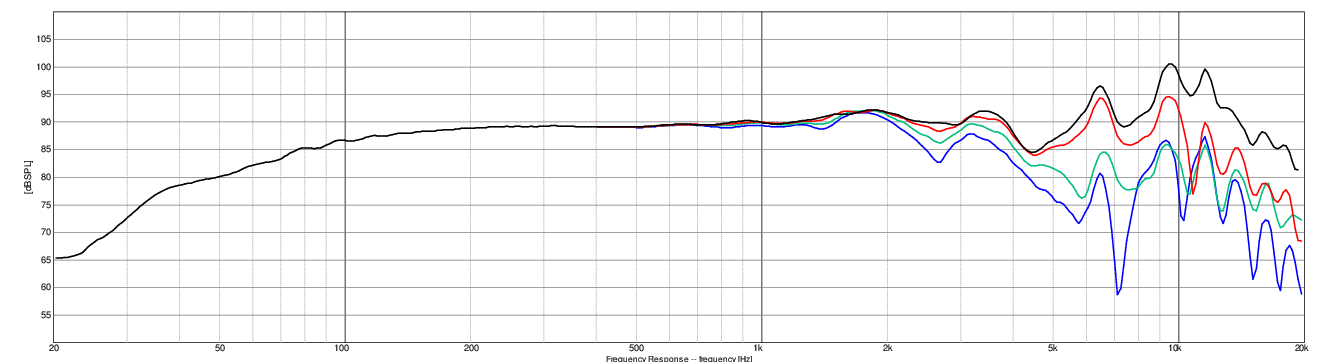

Dayton Audio RS150-8 frequency curve

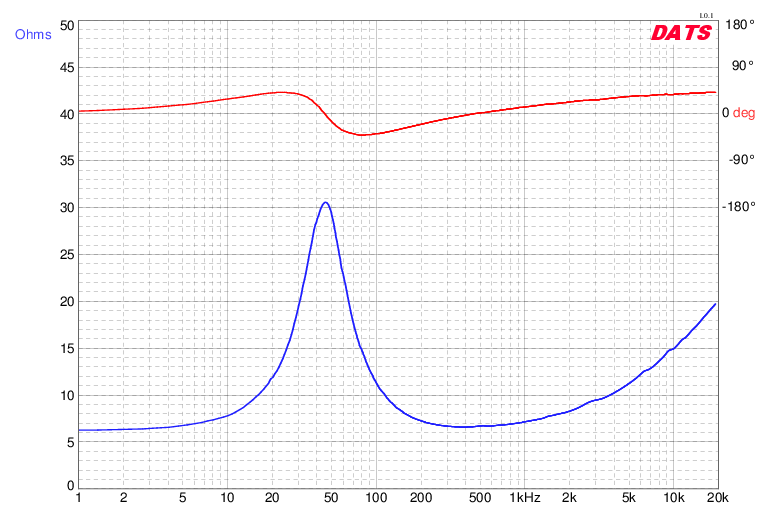

Dayton Audio RS150-8 impedance curve

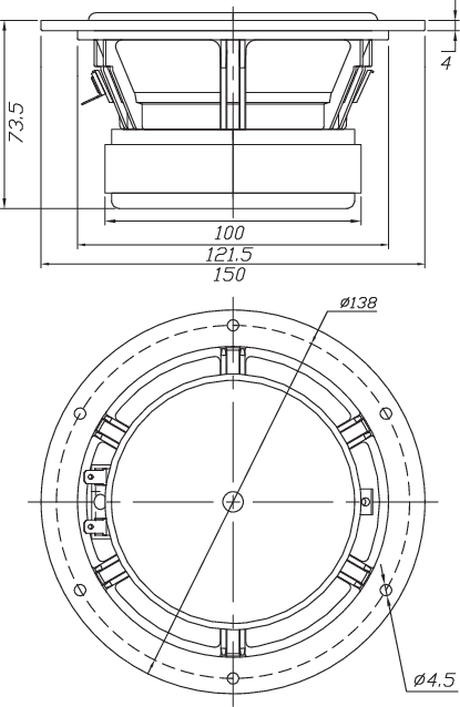

Dayton Audio RS150-8 dimensions

€83.84 *

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

Order number: da-rs150-8

The Dayton Audio Reference Series RS150-8 6" woofers deliver exceptional clarity, detail, and... more

Product information "Dayton Audio RS150-8"

The Dayton Audio Reference Series RS150-8 6" woofers deliver exceptional clarity, detail, and dynamics—and of course, incredibly low distortion.

Specifications

power handling (continuous/programme) = 40 W
frequency range = 48-4200 Hz
resonance frequency fs = 47,8 Hz
impedance R = 8 Ohm
DC resistance Re = 6,13 Ohm
force factor BL = 5,3 N/A
voice coil inductance L = 0,59 mH
effective piston radiating area Sd = 84,9 cm²
effective mechanical mass incl. air load mms = 7,5 g
equivalent volume of compliance Vas = 15 l
total Q factor Qts = 0,4 (Qms=2,15, Qes=0,49)
voice coil diameter = 25,9 mm
maximum peak linear excursion vibration x_lin = +/- 4 mm
mounting diameter d = 121,5 mm
overall diameter d = 150 mm
mounting depth (not countersunk) t = 73,5 mm

Related links to "Dayton Audio RS150-8"

Available downloads:

Download Dayton Audio RS150-8 Datasheet
