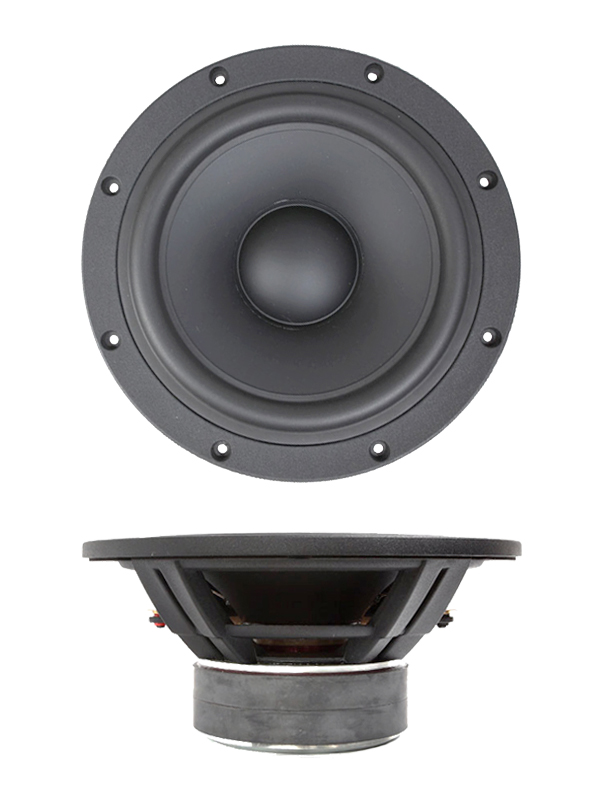

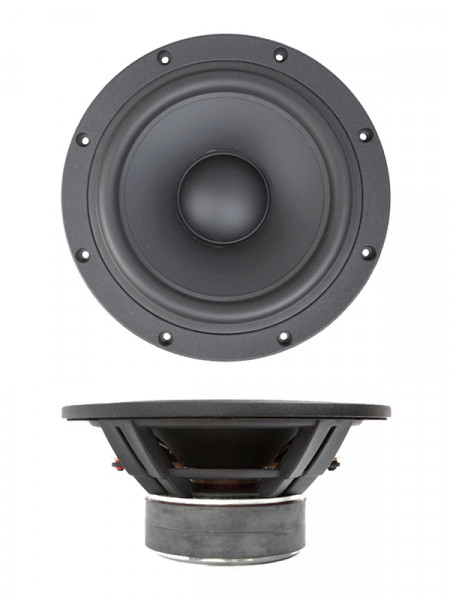

SB Acoustics SB29SWNRX-S75-6

€160.95 *

Prices incl. VAT plus shipping costs

Delivery time 1-3 Workdays

  • 1382346
SB Acoustics SB29SWNRX-S75-6 Hard paper cone for improved piston operation (made in-house)... more
Product information "SB Acoustics SB29SWNRX-S75-6"

SB Acoustics SB29SWNRX-S75-6

  • Hard paper cone for improved piston operation (made in-house)
  • Vented pole piece for minimum compression
  • Vented cast aluminium chassis for optimum strength and low compression
  • 3″ copper voice coil (4-layer) for improved power handling
  • Long life silver lead wires
  • Low damping medium hardness rubber surround for improved linearity and power handling
  • Non-conducting fibre glass voice coil former for minimum damping

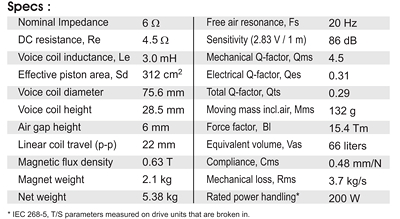

Specifications

  • power handling (continuous/programme) = 200 W
  • resonance frequency fs = 20 Hz
  • impedance R = 6 Ohm
  • sound pressure level SPL = 86 dB (2,83V; 1m)
  • DC resistance Re = 4.5 Ohm
  • force factor BL = 15.4 N/A
  • effective piston radiating area Sd = 312 cm2
  • effective mechanical mass incl. air load mms = 132 g
  • equivalent volume of compliance Vas = 66 l
  • total Q factor Qts = 0.29 (Qms=4.5, Qes=0.31)
  • voice coil diameter = 75,6 mm

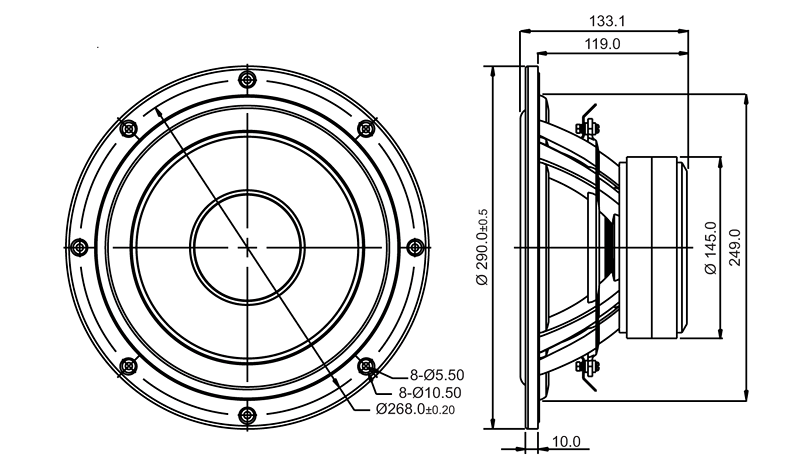

  • mounting diameter d = 249 mm
  • overall diameter d = 290 mm
  • mounting depth (not countersunk) t = 119 mm
