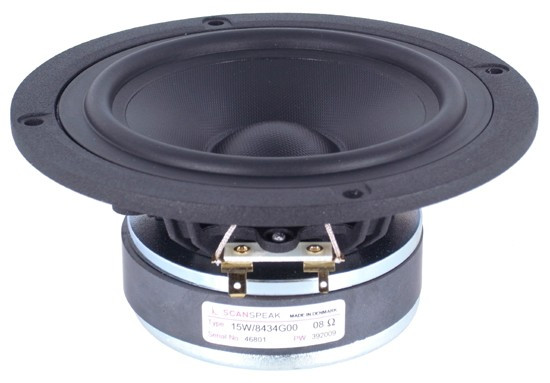

Scan-Speak 15W/8434G00

€68.90 *

Prices incl. VAT plus shipping costs

Delivery time 1-2 Workdays

  • 7258434
The Scan-Speak 15W/8434G-00 Discovery offer traditional design, superior sound, a solid... more
Product information "Scan-Speak 15W/8434G00"

The Scan-Speak 15W/8434G-00 Discovery offer traditional design, superior sound, a solid construction, and a wide range of variants. Combining these elements - plus a wealth of technical features and finesses - it gives our customers the possibility of acquiring a tailor-made Scan-Speak solution with very good performance at a reasonable low price point!

  • Magnet System w. Alu Ring
  • Die cast Alu Chassis vented below spider
  • Coated NRSC Fibre Glass Cone
  • Low Damping SBR Rubber Surround



The 15W/8434G can be considered as a replacement for the PL14WJ09-08 or the MG14WK09-08.



Specifications

  • power handling (continuous/programme) = 60/120 W

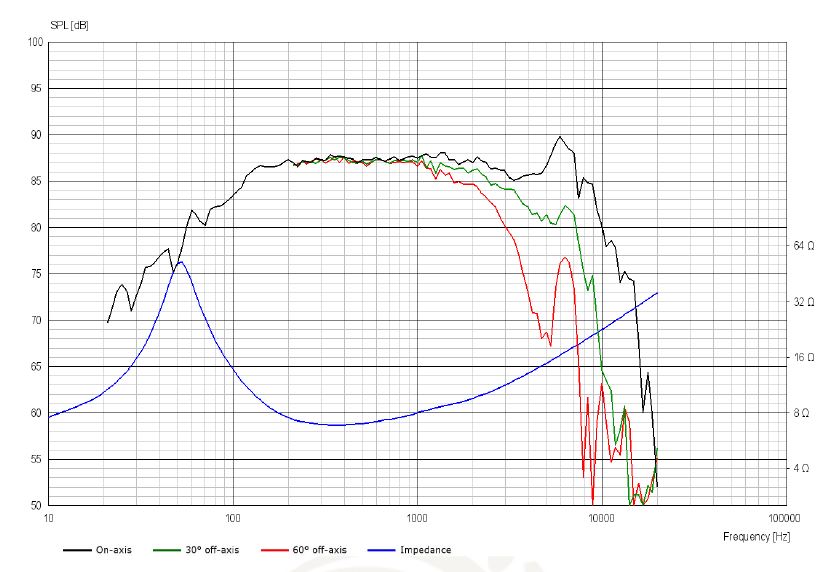

  • frequency range = 40-2500 Hz
  • resonance frequency fs = 45 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 86,9 dB (2,83V; 1m)
  • DC resistance Re = 5,7 Ohm
  • force factor BL = 7,3 N/A
  • voice coil inductance L = 0,8 mH
  • effective piston radiating area Sd = 80 cm2
  • effective mechanical mass incl. air load mms = 8,61 g
  • equivalent volume of compliance Vas = 12,8 l
  • total Q factor Qts = 0,25 (Qms=3,74, Qes=0,27)
  • voice coil diameter = 25 mm
  • maximum peak linear excursion vibration xlin = +/- 4,2 mm

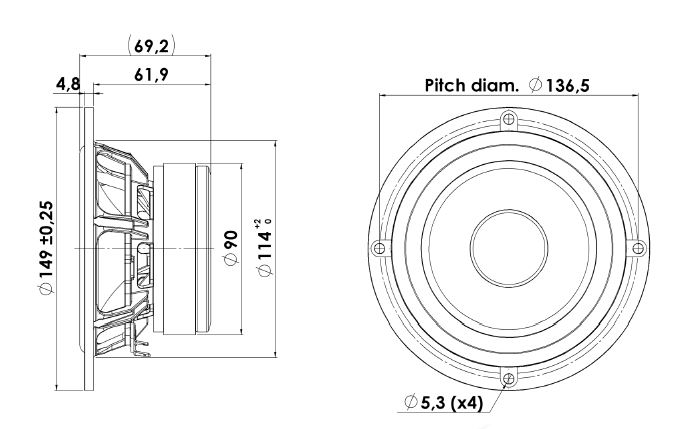

  • mounting diameter d = 114 mm
  • overall diameter d = 149 mm
  • mounting depth (not countersunk) t = 69,2 mm
