Vifa TG9-FD10/04

€25.52 *

Prices incl. VAT plus shipping costs

Delivery time appr. 1-3 workdays

  • 7235425
The TVifa TG9-FD10/04 offers a high performance full range and mid-bass solution for TV products... more
Product information "Vifa TG9-FD10/04"

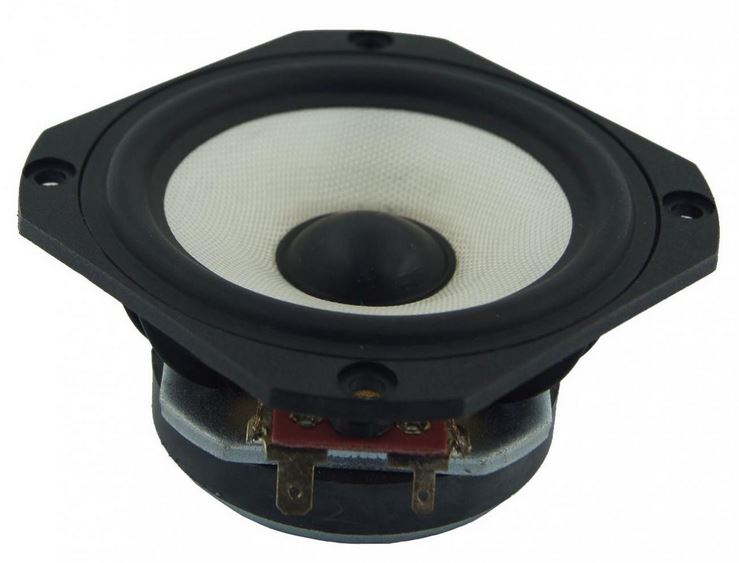

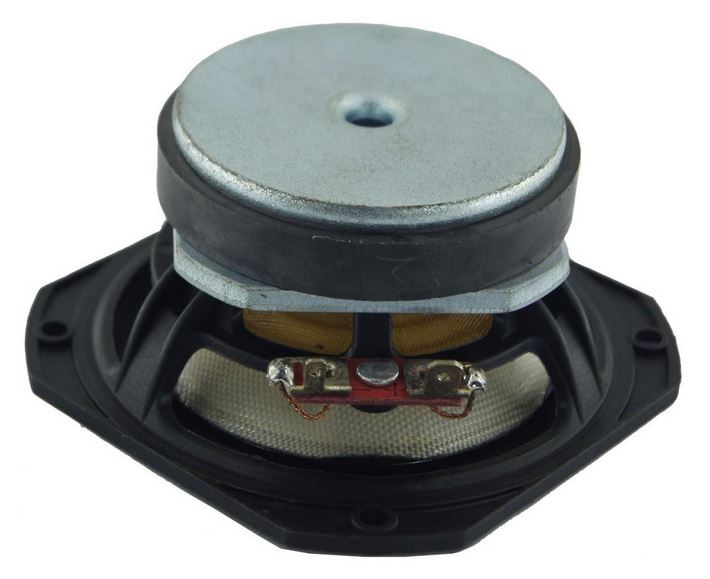

The TVifa TG9-FD10/04 offers a high performance full range and mid-bass solution for TV products and other compact applications. The use of leading-edge technologies like a polymer chassis, NRSC (Tymphany patent) fiberglass cone, and a copper pole piece cap, have made this full range driver appear on many industry insider lists as the best sounding solution in this market.



Specifications

  • power handling (continuous/programme) = 10 W

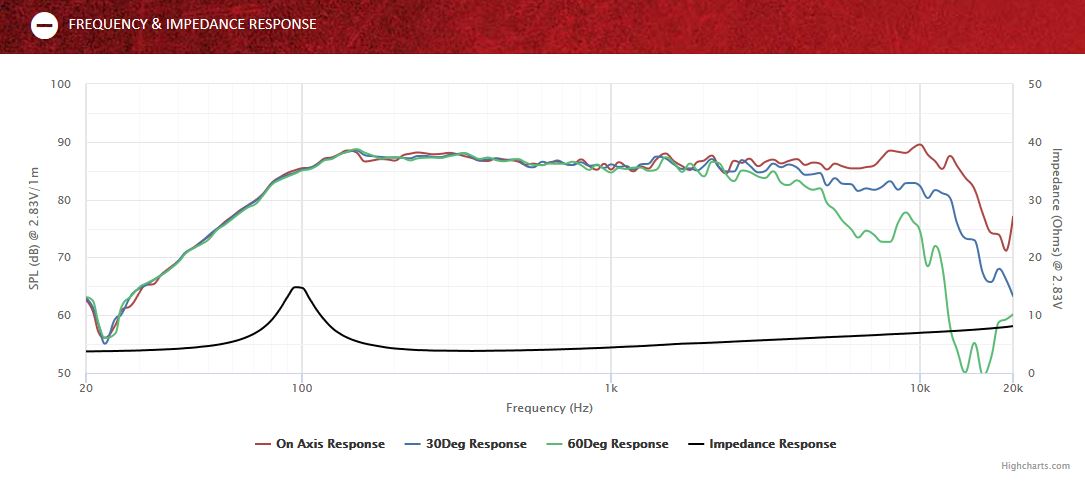

  • frequency range = 100-15000 Hz
  • resonance frequency fs = 113 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 87,2 dB (2,83V; 1m)
  • DC resistance Re = 3,25 Ohm
  • force factor BL = 2,4 N/A
  • voice coil inductance L = 0,07 mH
  • effective piston radiating area Sd = 36,3 cm2
  • effective mechanical mass incl. air load mms = 2,8 g
  • equivalent volume of compliance Vas = 1,29 l
  • total Q factor Qts = 0,83 (Qms=3,04, Qes=1,14)
  • voice coil diameter = 20 mm
  • maximum peak linear excursion vibration xlin = +/- 2,6 mm

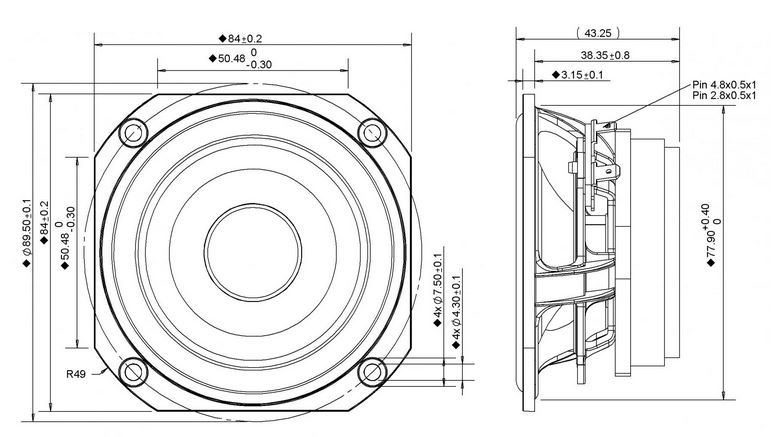

  • mounting diameter d = 77,9 mm
  • overall diameter d = 84x84 mm
  • mounting depth (not countersunk) t = 38,35 mm
  • mass m = 0,3 kg
