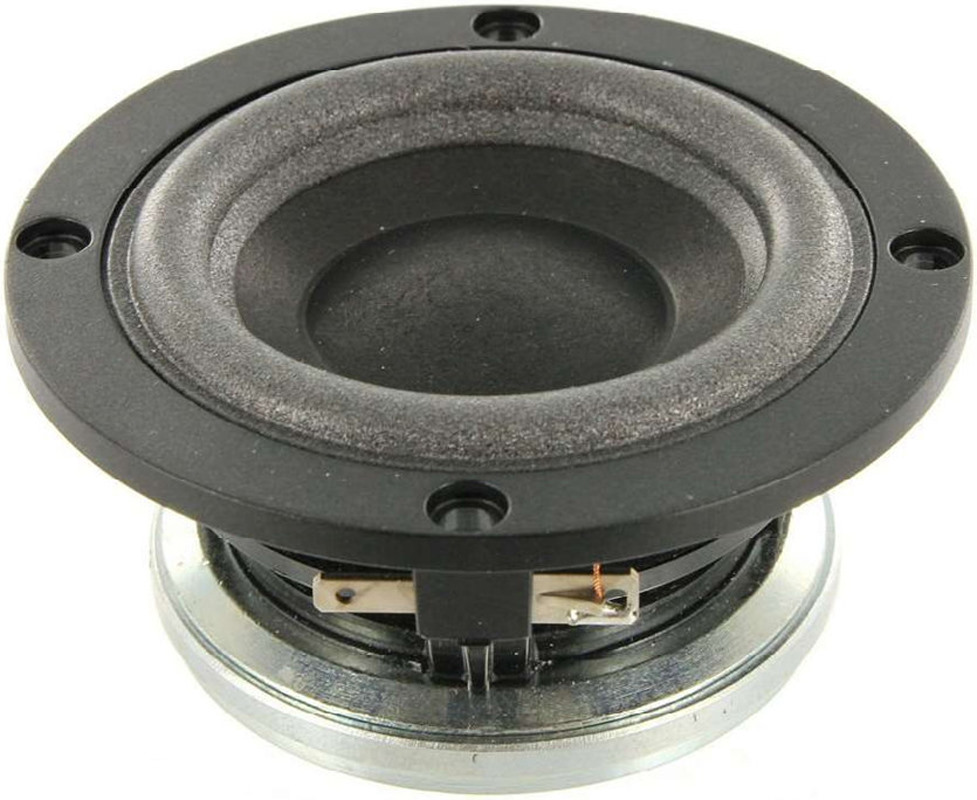

Scan-Speak 5F/8422T01

€56.95 *

Prices incl. VAT plus shipping costs

Delivery time appr. 1-3 workdays

  • 7248422
The Scan-Speak 5F/8422T01 offer a traditional design, superior sound, a solid construction, and... more
Product information "Scan-Speak 5F/8422T01"

The Scan-Speak 5F/8422T01 offer a traditional design, superior sound, a solid construction, and a wide range of variants. Combining these elements - plus a wealth of technical features and finesses - it gives our customers the possibility of acquiring a tailor-made Scan-Speak solution with very good performance at a reasonable low price point!



Specifications

  • power handling (continuous/programme) = 10/20 W

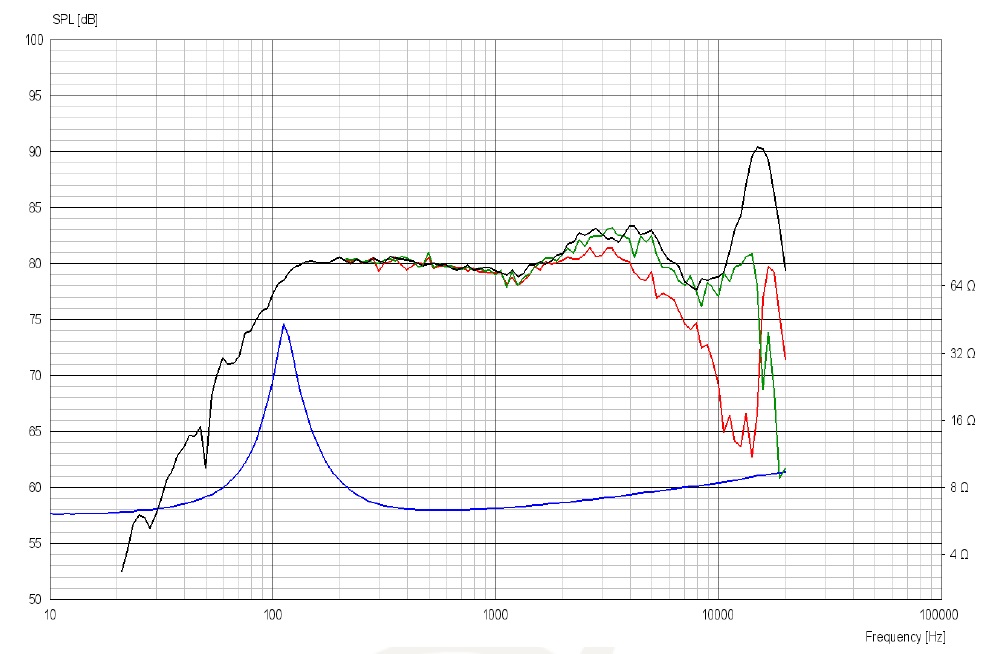

  • frequency range = 90-20000 Hz
  • resonance frequency fs = 93 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 80 dB (2,83V; 1m)
  • DC resistance Re = 6 Ohm
  • force factor BL = 3,07 N/A
  • voice coil inductance L = 0,07 mH
  • effective piston radiating area Sd = 15,2 cm2
  • effective mechanical mass incl. air load mms = 1,86 g
  • equivalent volume of compliance Vas = 0,5 l
  • total Q factor Qts = 0,61 (Qms=5,17, Qes=0,69)
  • voice coil diameter = 26 mm
  • maximum peak linear excursion vibration xlin = +/- 2 mm

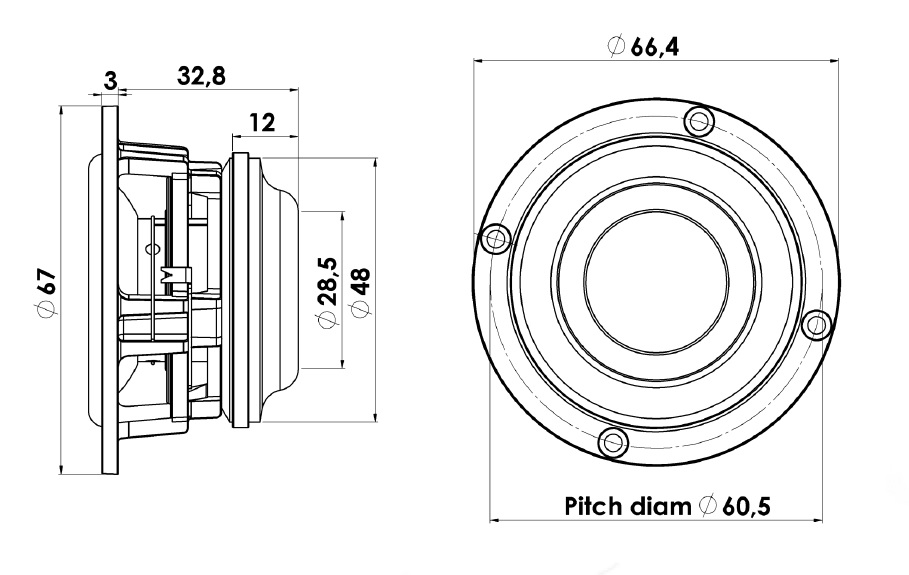

  • mounting diameter d = 55 mm
  • overall diameter d = 67 mm
  • mounting depth (not countersunk) t = 35,8 mm
