Peerless SDS-134 THP

€30.11 *

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

  • 830656
The Peerless SDS-134 THP, SDS compact woofer family offers low resonant frequency performance,... more
Product information "Peerless SDS-134 THP"

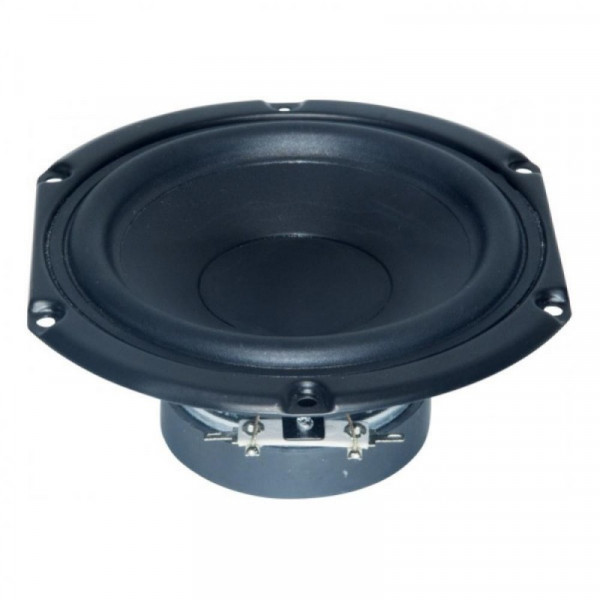

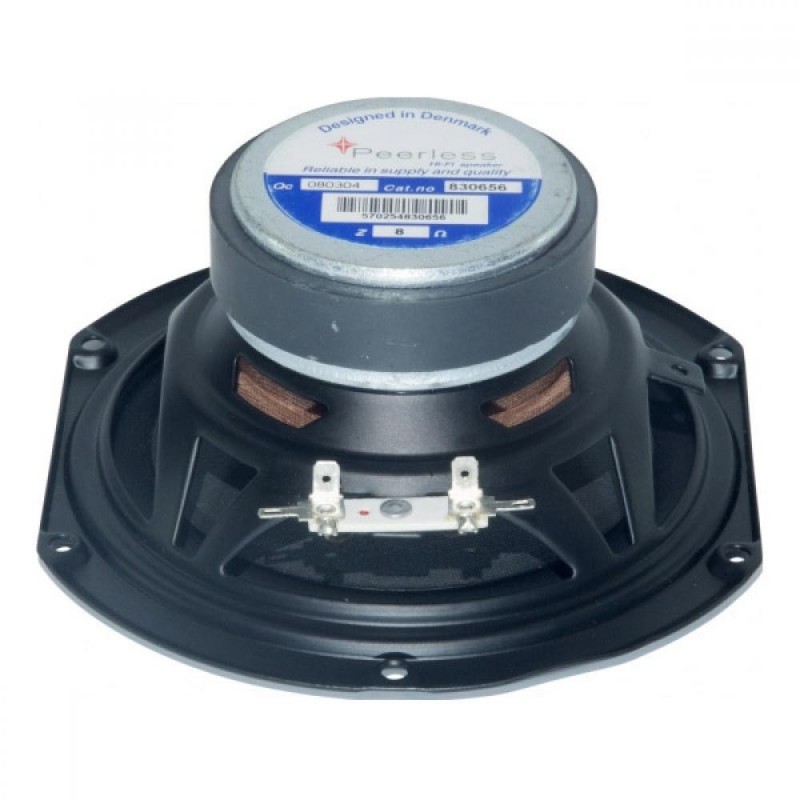

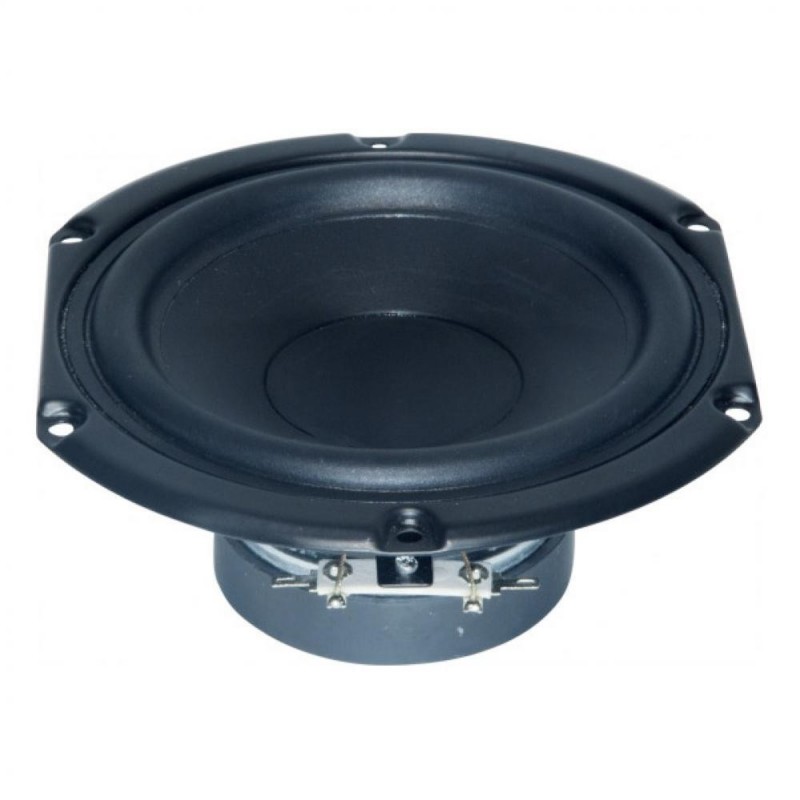

The Peerless SDS-134 THP, SDS compact woofer family offers low resonant frequency performance, ideally suited for compact sealed enclosures. This 5.25 inch 8 ohm member of the SDS family offer a coated paper cone with rubber surround, a high power voice coil suspended in a ferrite magnet motor, and a narrow-profile steel basket, shaped to fit into narrow cabinets.



Specifications

  • power handling (continuous/programme) = 60 W

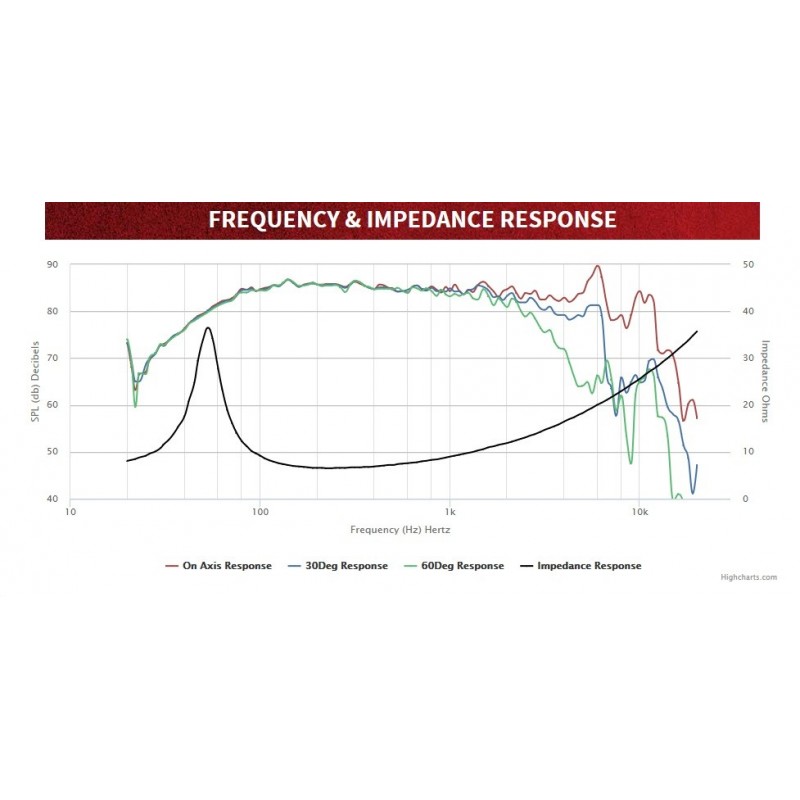

  • frequency range = 60-5000 Hz
  • resonance frequency fs = 57 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 85,7 dB (2,83V; 1m)
  • DC resistance Re = 6,06 Ohm
  • force factor BL = 5,36 N/A
  • voice coil inductance L = 0,37 mH
  • effective piston radiating area Sd = 86,6 cm2
  • effective mechanical mass incl. air load mms = 9,3 g
  • equivalent volume of compliance Vas = 8,77 l
  • total Q factor Qts = 0,59 (Qms=3,6, Qes=0,7)
  • voice coil diameter = 25 mm
  • maximum peak linear excursion vibration xlin = +/- 3,5 mm

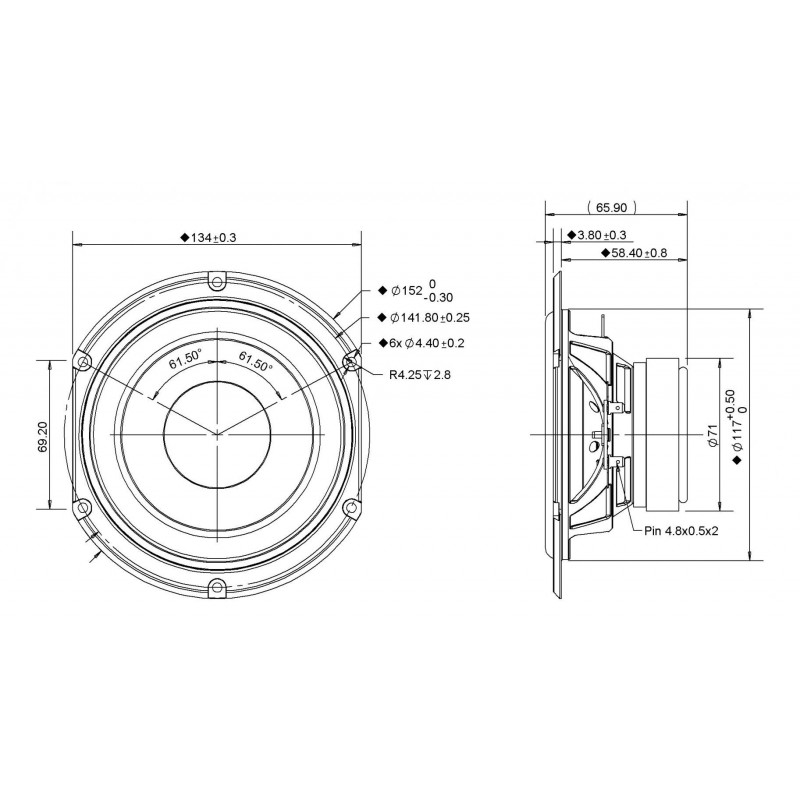

  • mounting diameter d = 117 mm
  • overall diameter d = 152 mm
  • mounting depth (not countersunk) t = 58,4 mm
