SB Acoustics SB13PFCR25-8

SB Acoustics
Preview: SB Acoustics SB13PFCR25-8 Preview: SB Acoustics SB13PFC25-8 graphs Preview: SB Acoustics SB13PFC25-8 parameter Preview: SB Acoustics SB13PFCR25-8
SB Acoustics SB13PFCR25-8
SB Acoustics SB13PFC25-8 graphs
SB Acoustics SB13PFC25-8 parameter
SB Acoustics SB13PFCR25-8

€27.45 *

Prices incl. VAT plus shipping costs

Delivery time 1-3 Workdays

  • Order number: 1382481
Description Evaluations 0
Description
SB Acoustics SB13PFCR25-8 5" Woofer Vented reinforced plastic chassis Proprietary cone... more
Close menu
Product information "SB Acoustics SB13PFCR25-8"

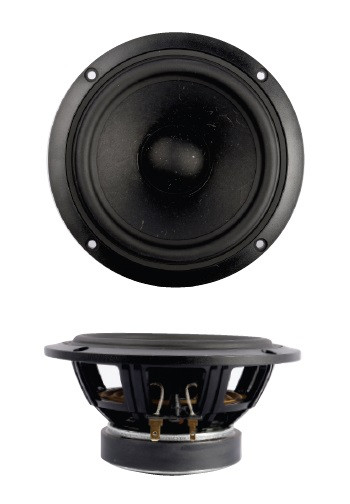

SB Acoustics SB13PFCR25-8 5" Woofer

  • Vented reinforced plastic chassis
  • Proprietary cone material with natural fibers made in-house
  • Soft low damping rubber surround for improved transient response
  • Optimized motor system
  • Vented coil former for low compression
  • Non-resonant long life lead wires



Specifications

  • power handling (continuous/programme) = 40 W
  • frequency range = 50-12000 Hz
  • resonance frequency fs = 45 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 87 dB (2,83V; 1m)
  • DC resistance Re = 5.6 Ohm
  • force factor BL = 6.2 N/A
  • voice coil inductance L = 0.77 mH
  • effective piston radiating area Sd = 87 cm2
  • effective mechanical mass incl. air load mms = 10 g
  • equivalent volume of compliance Vas = 13.4 l
  • total Q factor Qts = 0.33 (Qms=2.2, Qes=0.39)

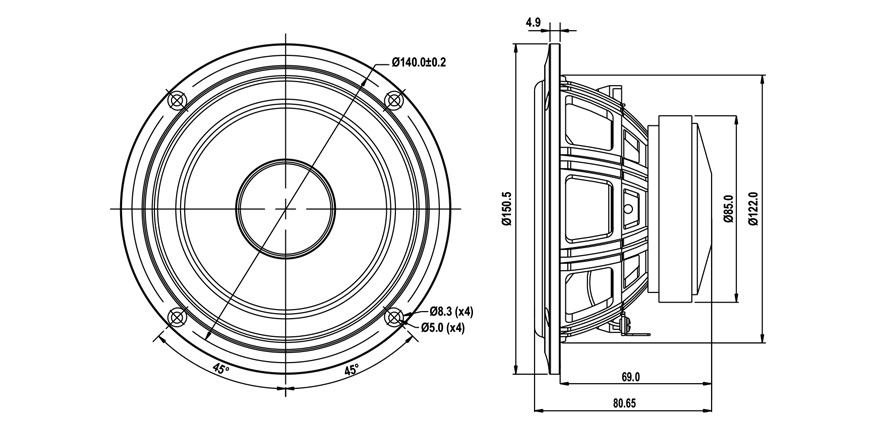

  • voice coil diameter = 25,4 mm
  • mounting diameter d = 122 mm
  • overall diameter d = 134.5mm
  • mounting depth (not countersunk) t = 69 mm
