Peerless P830970 2" Fullrange

€22.84 *

Prices incl. VAT plus shipping costs

Delivery time appr. 1-3 workdays

  • 830970
Peerless 830970 2 inch 4 ohm, member of the PLS family sets a high standard, for compact full... more
Product information "Peerless P830970 2" Fullrange"

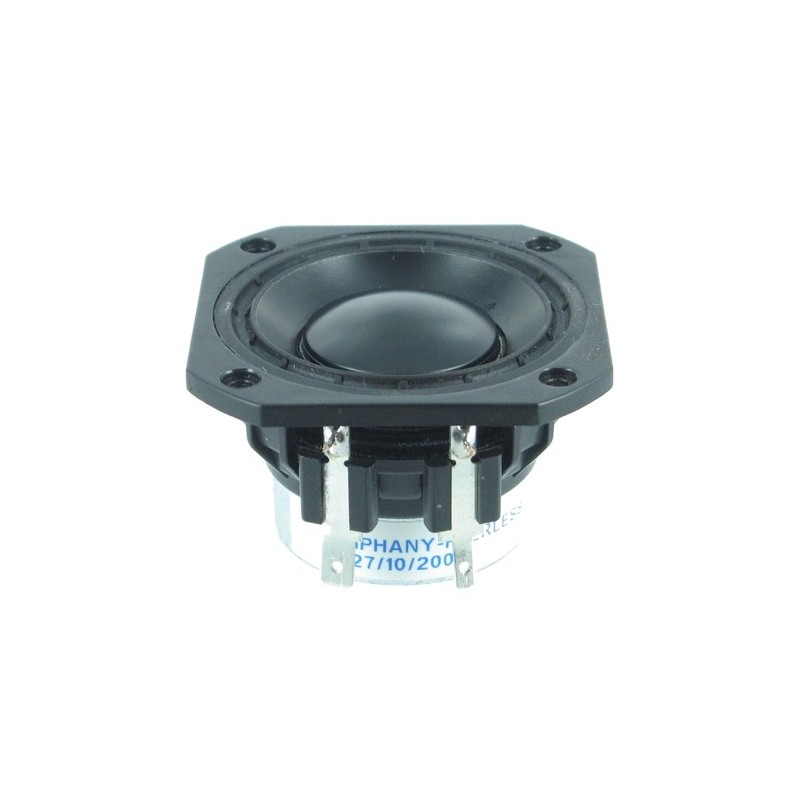

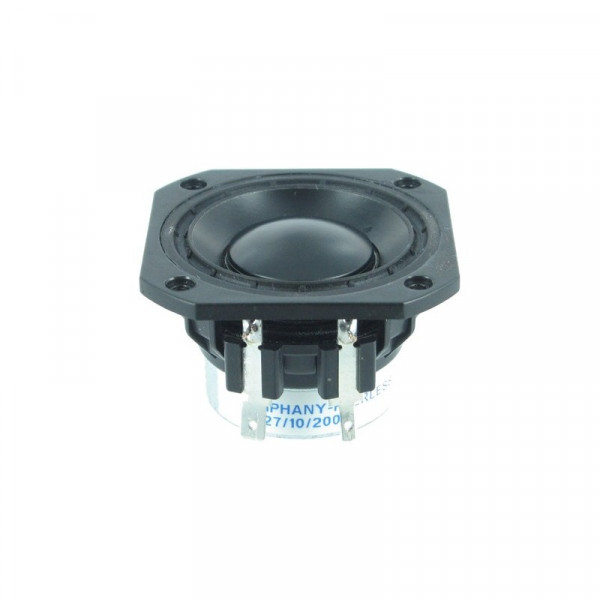

Peerless 830970 2 inch 4 ohm, member of the PLS family sets a high standard, for compact full range drivers intended for applications such as television soundbars and compact music systems. Design features in this family include a damped plastic basket with venting under the spider to aid cooling of the motor, a neodymium magnet motor with copper cap to lower coil inductance, providing low distortion at low frequencies and extended high frequency response. A black anodized aluminium cone is employed on the driver, along with a black anodized aluminium dust cap coupled directly to the voice coil. Additionally, the cones come equipped with special-designed large roll rubber surrounds, which allow for a dynamic linear response to high excursion input signals.

  • Neodymium magnet
  • Double-vented motor
  • Anodized aluminum center dome
  • Distortion-reducing semi-progressive surround
  • Copper pole piece cap controls impedance

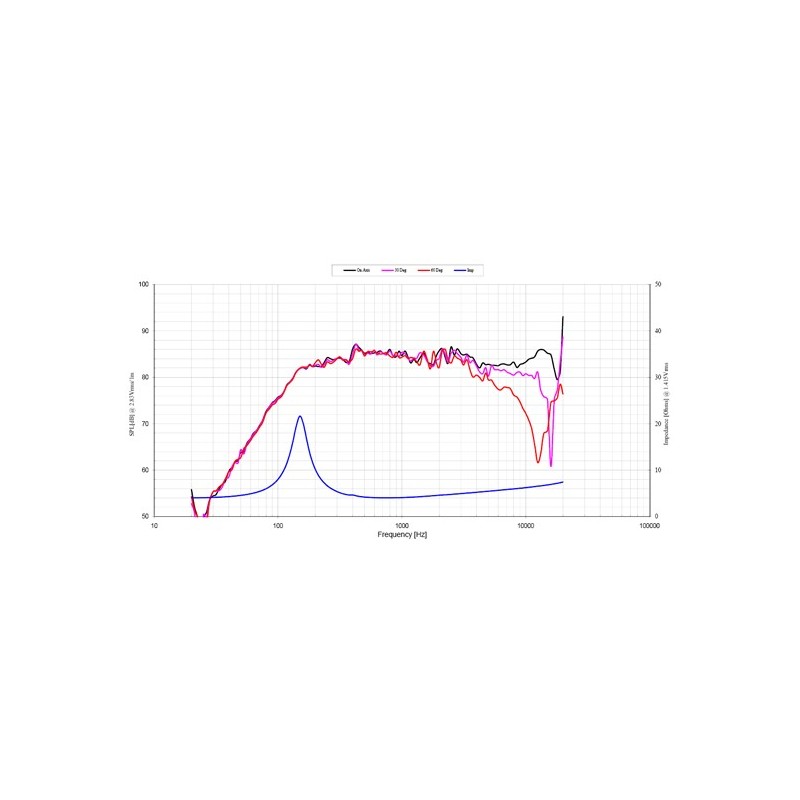

Specifications

  • power handling (continuous/programme) = 25 W
  • frequency range = 200-20000 Hz
  • resonance frequency fs = 166 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 85,3 dB (2,83V; 1m)
  • DC resistance Re = 3,6 Ohm
  • force factor BL = 2,79 N/A
  • voice coil inductance L = 0,03 mH
  • effective piston radiating area Sd = 13,9 cm2
  • effective mechanical mass incl. air load mms = 1,4 g
  • equivalent volume of compliance Vas = 0,18 l
  • total Q factor Qts = 0,57 (Qms=3,85, Qes=0,67)
  • voice coil diameter = 25 mm
  • maximum peak linear excursion vibration xlin = +/- 1,7 mm

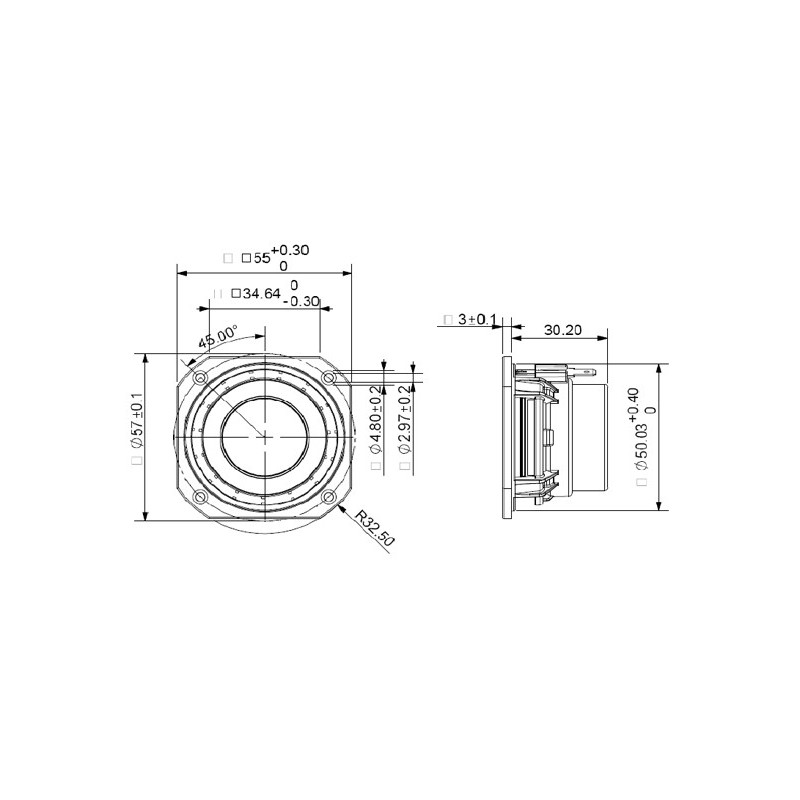

  • mounting diameter d = 50 mm
  • overall diameter d = 55x55 mm
  • mounting depth (not countersunk) t = 33,2 mm
  • mass m = 0,14 kg
