Peerless HDS-164 Alu 835025

Peerless HDS-164 Alu

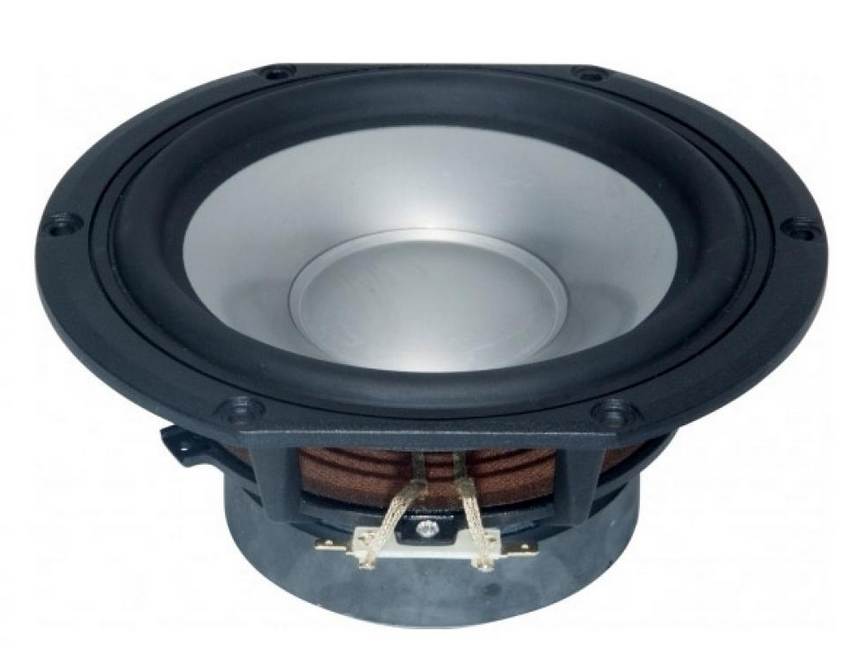

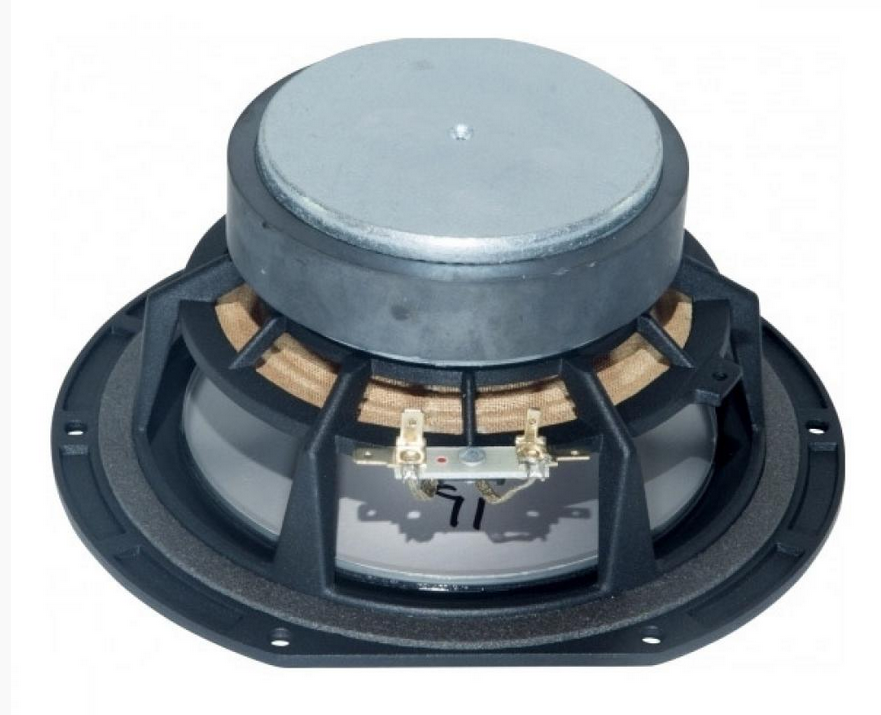

The Peerless High Definition Sound (HDS) Series offers high-quality solutions for multi-way speaker systems employing vented box alignments. A powerful ferrite magnet system is coupled to a finite element analysis-designed suspension system, containing a linear spider design and rubber surround. The motor incorporates an aluminum shorting ring that reduces coil inductance, extending frequency response performance and reducing second harmonic distortion. A cast aluminum basket provides high structural rigidity, heat-sinking capacity for the motor, and additional ventilation under the spider that in combination with a vented cone neck reduces air compression effects. The aluminum cone combines high strength with low moving mass, offering superb transient response and sharp definition.

Specifications:

*Power handling: 55 watts (IEC 2685 18.1)

*VCdia: 1-1/4"

*Le: 0.39 mH

*Impedance: 8 ohms

*Re: 6.3 ohms

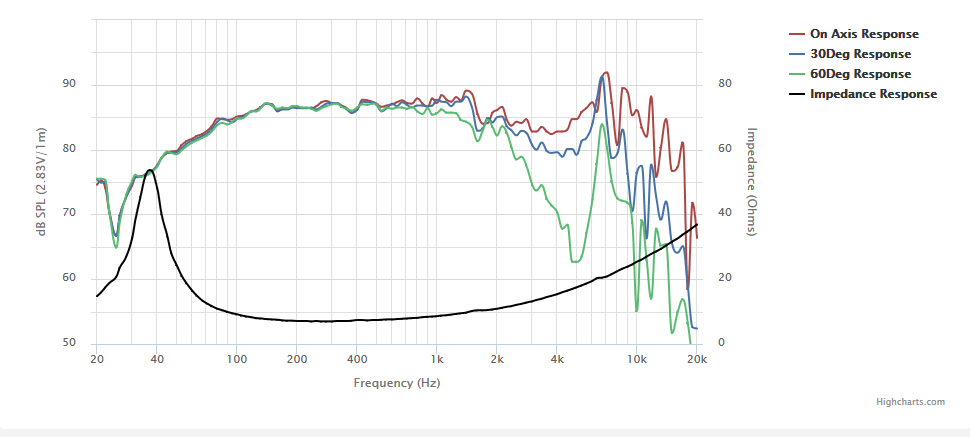

*Frequency response: 20-3,000 Hz

*Fs: 38 Hz

*SPL: 87.2 dB 2.83V/1m

*Vas: 23 l.

*Qms: 2.73

*Qes: 0.47

*Qts: 0.40

*Xmax: 5.39 mm
