Product information "Scan-Speak 12W/4524G00"

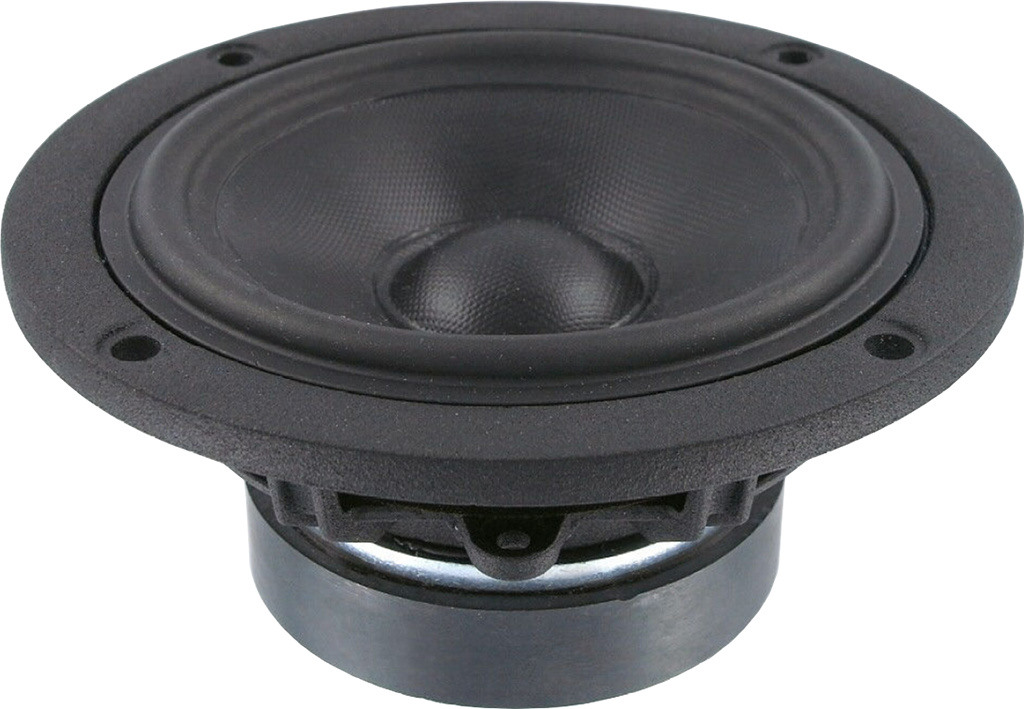

Scanspeak Discovery 12W/4524G00 4" Midwoofer
- Suitable as Midwoofer in compact 2-way systems or as midrange in 3-way systems
- NRSC* Fibre Glass Cone
- Low damping Rubber Surround
- Wide Frequency Operating Range
- Die Cast Aluminium Basket
- Vents below Spider
Specifications
- power handling (continuous/programme) = 40/70 W

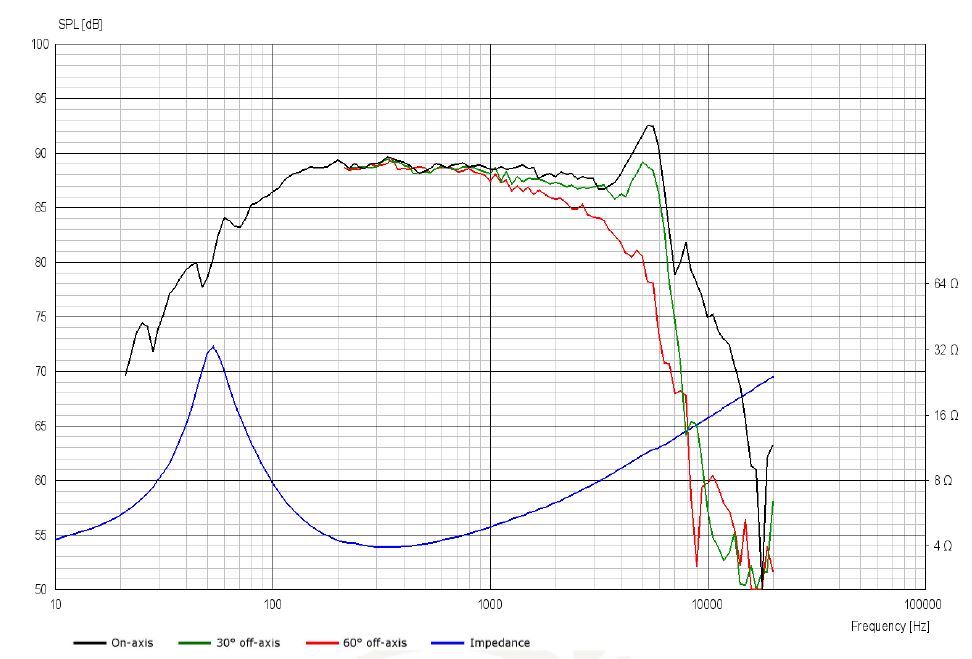

- frequency range = 50-3000 Hz
- resonance frequency fs = 50 Hz
- impedance R = 4 Ohm
- sound pressure level SPL = 88,8 dB (2,83V; 1m)
- DC resistance Re = 3,1 Ohm
- force factor BL = 4,4 N/A
- voice coil inductance L = 0,4 mH
- effective piston radiating area Sd = 59 cm2
- effective mechanical mass incl. air load mms = 6,1 g
- equivalent volume of compliance Vas = 8,2 l
- total Q factor Qts = 0,28 (Qms=3,35, Qes=0,3)
- voice coil diameter = 25 mm
- maximum peak linear excursion vibration xlin = +/- 3 mm

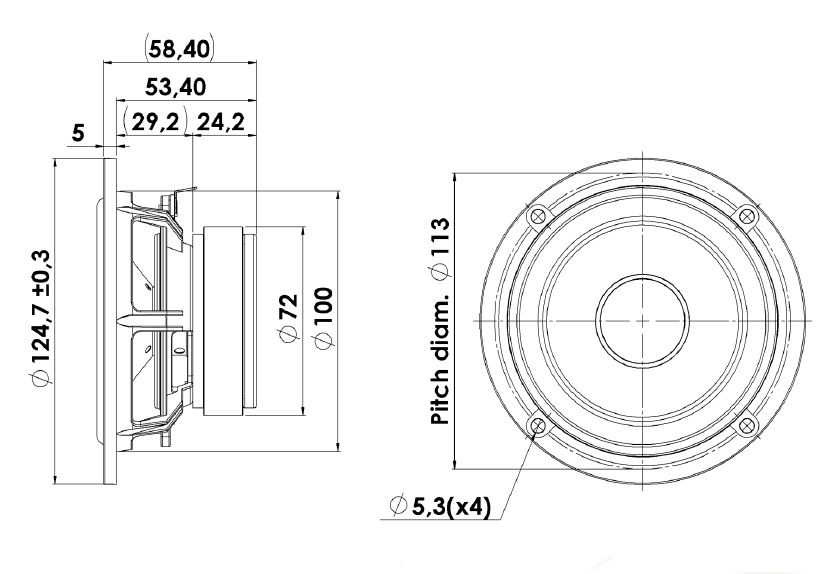

- mounting diameter d = 100 mm
- overall diameter d = 124,7 mm
- mounting depth (not countersunk) t = 58,4 mm
