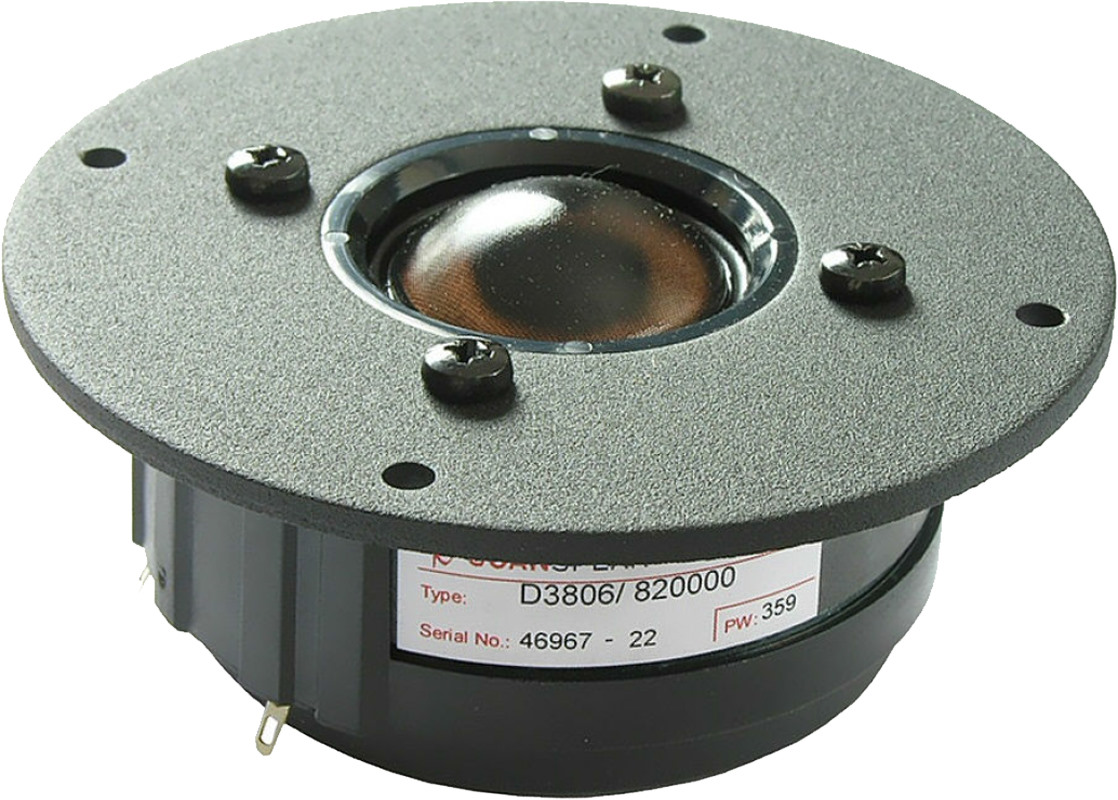

Scan-Speak D3806/8200

€162.61 *

Prices incl. VAT plus shipping costs

Delivery time 1-2 Workdays

  • 7308200
The Scan-Speak D3806/8200.00 was one the very first Scan-Speak products, now been on the marked... more
Product information "Scan-Speak D3806/8200"

The Scan-Speak D3806/8200.00 was one the very first Scan-Speak products, now been on the marked more than 4 decades and continuing beeing successful as one of the best upper midranges on the marked.

The Classic line consists of all the highly regarded transducers that have been appraised and loved by so many customers over the years. The goal has been to assemble all the diamonds, developed over the years, speakers that fully live up to the heritage of the brand.



Specifications

  • power handling (continuous/programme) = 100 W

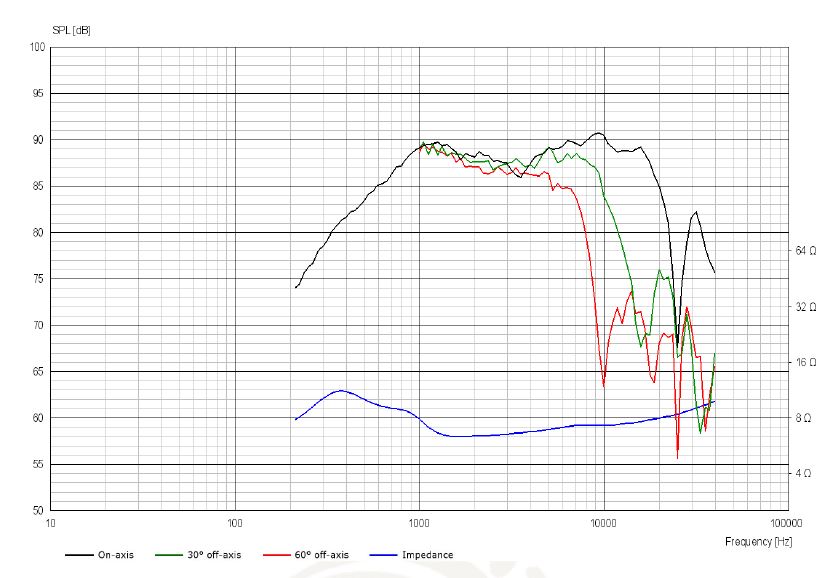

  • frequency range = 1000-13,5000 Hz
  • resonance frequency fs = 450 Hz
  • impedance R = 6 Ohm
  • sound pressure level SPL = 89 dB (2,83V; 1m)
  • DC resistance Re = 5,7 Ohm
  • force factor BL = 3,6 N/A
  • voice coil inductance L = 0,04 mH
  • effective piston radiating area Sd = 14 cm2
  • effective mechanical mass incl. air load mms = 0,9 g
  • equivalent volume of compliance Vas = 0,04 l
  • total Q factor Qts = 0,48 (Qms=0,93, Qes=1)
  • voice coil diameter = 38 mm
  • maximum peak linear excursion vibration xlin = +/- 0,4 mm

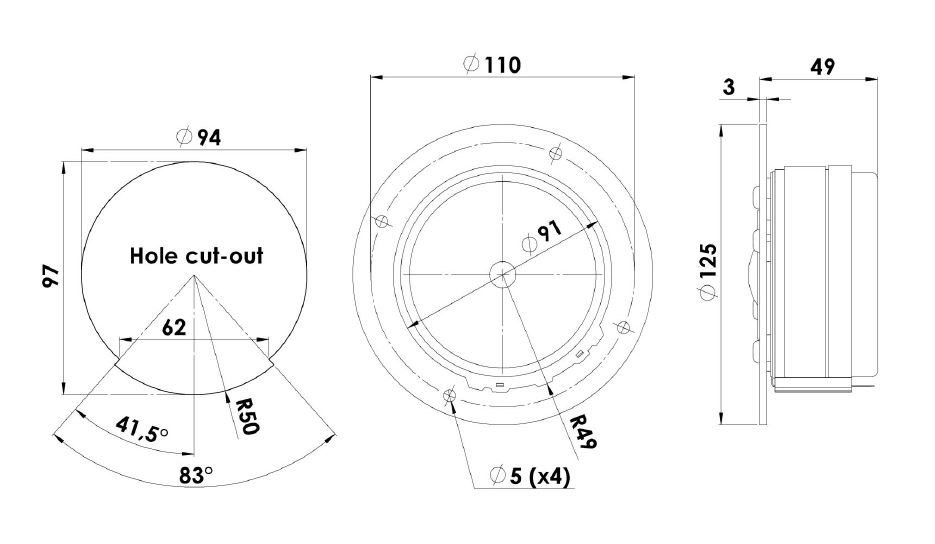

  • mounting diameter d = 97 mm
  • overall diameter d = 125 mm
  • mounting depth (not countersunk) t = 49 mm
