Peerless SLS-263

€78.45 *

Prices incl. VAT plus shipping costs

Delivery time 1-3 Workdays

  • 830668
The Peerless SLS-263 10" Woofer P830668 combines high quality performance with an affordable... more
Product information "Peerless SLS-263"

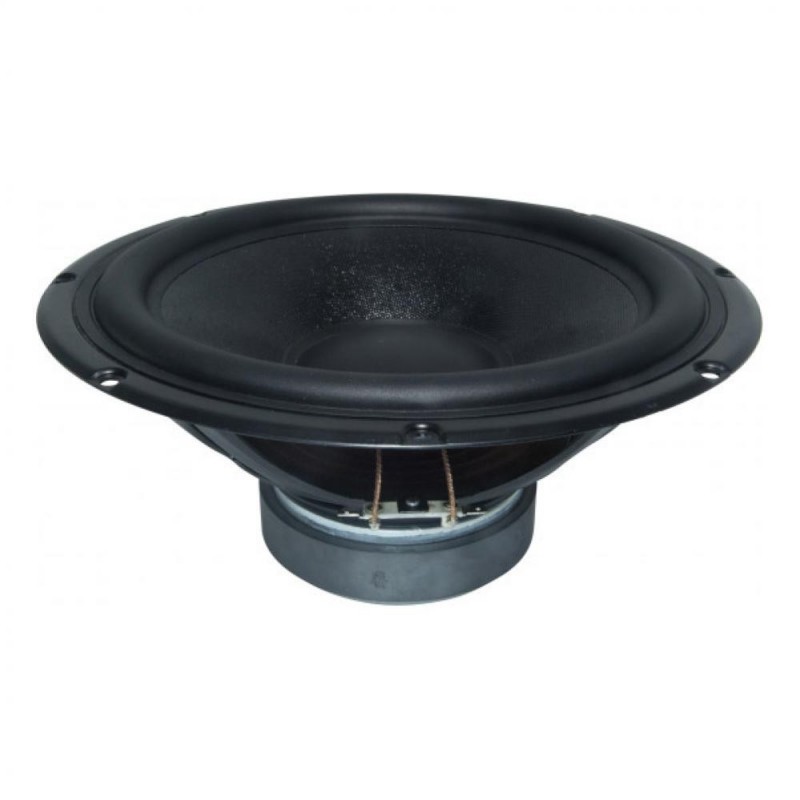

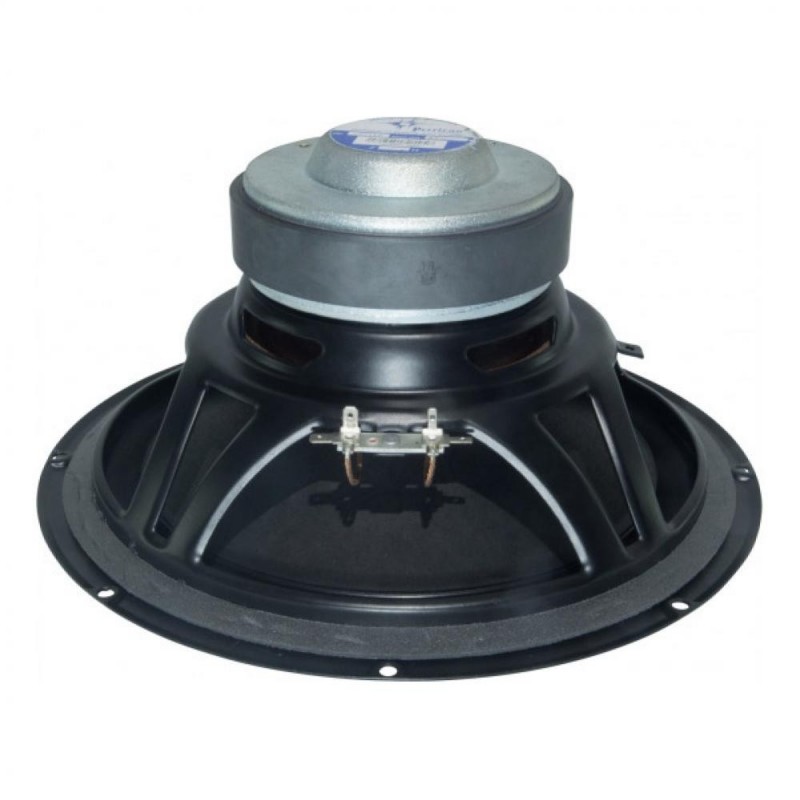

The Peerless SLS-263 10" Woofer P830668 combines high quality performance with an affordable design. This 10 inch 8 ohm member of the SLS family features a rigid steel basket, a coated paper cone, and a ferrite magnet motor with aluminium shorting ring for improved distortion performance.



Specifications

Transducer Size     10 in
DC Resistance     5.61 Ω ±5.0%
Resonant Frequency     32.4 Hz 15%
Half Space Sensitivity @ 2.83V     87.9 dB ±1.01
Sensitivity @ 1W/1m     87.5 dB ±1.01
Rated Noise Power (IEC 268-5 18.1)     70 W
Effective Piston Area     346.4 cm2
Moving Mass     56.3 g
Motor Force Factor     10.42 T•m
Voice Coil Inner Diameter     38.43 mm
Gap Height     8 mm
Maximum Linear Excursion     8.3 mm
Ferrofluid Type
Minimum Impedance     7.31 Ω ±7.5%
Voice Coil Inductance     1.37 mH
Mechanical Q Factor     7.15
Electrical Q Factor     0.59
Total Q Factor     0.55
Ratio     59.23 fs/Qts
Test Spectrum Bandwidth (1300-20000 Hz)     30Hz-2KHz 12 dB/Oct
Energy Bandwidth Product ((1/Qes)•fs)
Suspension Compliance     429 um/N
Effective Cone Diameter     21 cm
Motor Efficiency Factor     19.3 (T•m2)/Ω
Voice Coil Former Material     GSV GSV
Transducer Mass     2.7 Kg
Equivalent Volume     72.9 L
