Scan-Speak D2608/9130.00

€98.24 *

Prices incl. VAT plus shipping costs

Delivery time appr. 1-3 workdays

  • 7259130

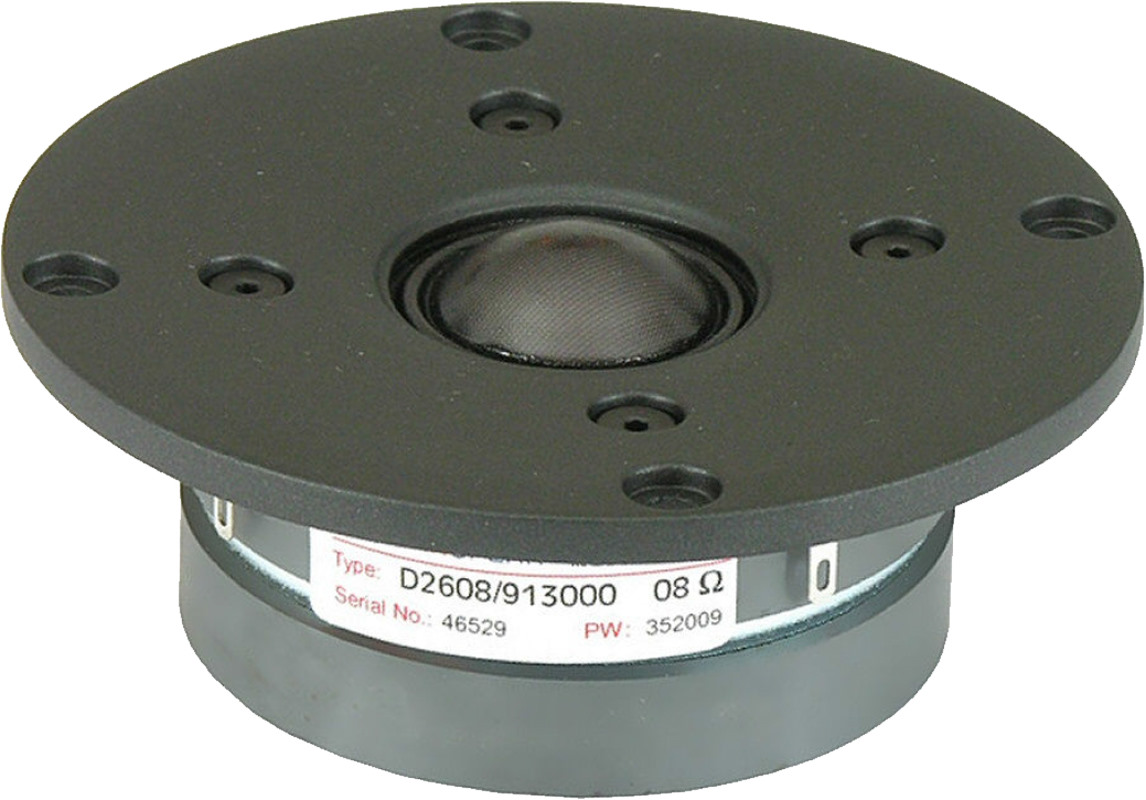

The Scan-Speak D2608/9130.00 1" Discovery tweeter uses a very light, low mass “soft dome" with... more
Product information "Scan-Speak D2608/9130.00"

The Scan-Speak D2608/9130.00 1" Discovery tweeter uses a very light, low mass “soft dome" with high internal damping, and a highly-optimized, low-compression magnet system, which was designed especially for the low mass dome. The result is a driver that has both good sensitivity and an impressive range into the lower frequencies. The low mass dome, coupled with a fully vented motor system provides non-compressed sound reproduction over the entire frequency response. This combination allows the Discovery tweeter to be used in systems with lower cross-over points than is recommended for most normal tweeters, making this product a powerful tool for any acoustic designer.



Specifications

  • power handling (continuous/programme) = 80/400 W

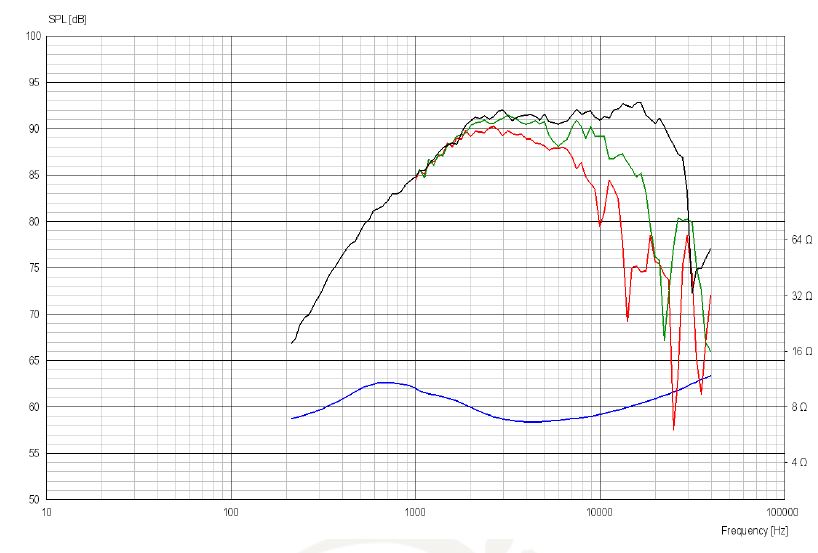

  • frequency range = 1300-22000 Hz
  • resonance frequency fs = 700 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 91,3 dB (2,83V; 1m)
  • DC resistance Re = 5,6 Ohm
  • force factor BL = 2,6 N/A
  • voice coil inductance L = 0,04 mH
  • effective piston radiating area Sd = 7 cm2
  • effective mechanical mass incl. air load mms = 0,18 g
  • equivalent volume of compliance Vas = 0,02 l
  • total Q factor Qts = 0,29 (Qms=0,51, Qes=0,65)
  • voice coil diameter = 26 mm
  • maximum peak linear excursion vibration xlin = +/- 0,5 mm

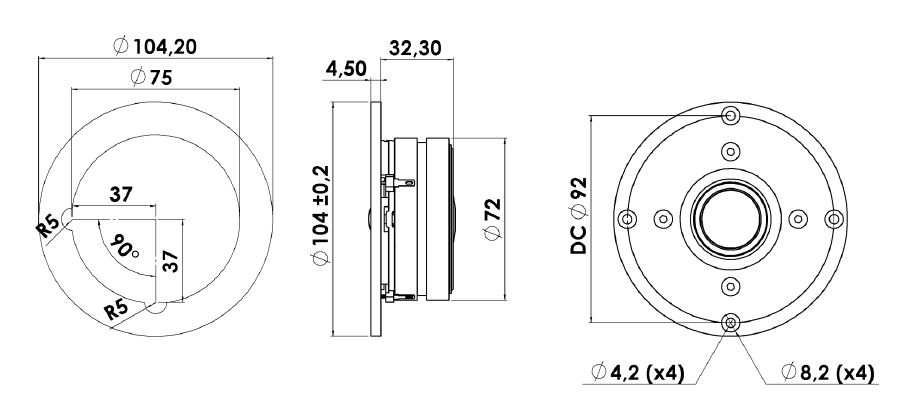

  • mounting diameter d = 72 mm
  • overall diameter d = 104 mm
  • mounting depth (not countersunk) t = 36,9 mm
