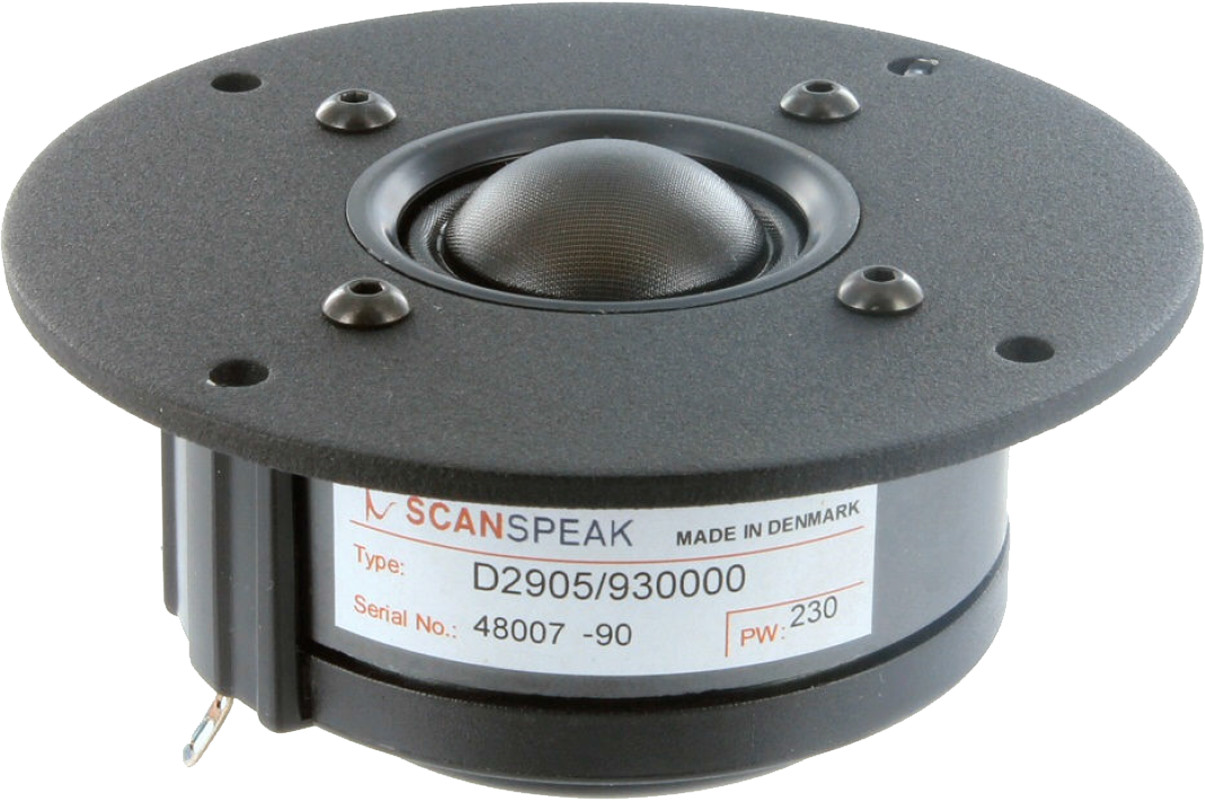

Scan-Speak D2905/9300.00

€115.00 *

Prices incl. VAT plus shipping costs

Delivery time 1-2 Workdays

  • 7309300
The Scan-speak D2905/9300 is a 1" textile dome tweeter with a very flat frequency response and... more
Product information "Scan-Speak D2905/9300.00"

The Scan-speak D2905/9300 is a 1" textile dome tweeter with a very flat frequency response and low distortion. The D2905/9300 achieves a lower resonance and increased clarity by using several coatings of damping material on the dome and chambering behind the dome. Both these damping factors and the use of a light magnetic fluid, reduce the resonances as much as possible, while reducing compression affects. this tweeters linear response and openness make it a good choice for any system.



Specifications

  • power handling (continuous/programme) = 150/460 W
  • frequency range = 1000-33000 Hz
  • resonance frequency fs = 650 Hz
  • impedance R = 6 Ohm
  • sound pressure level SPL = 90 dB (2,83V; 1m)
  • DC resistance Re = 4,7 Ohm
  • force factor BL = 3,5 N/A
  • voice coil inductance L = 0,07 mH
  • effective piston radiating area Sd = 8,5 cm2
  • effective mechanical mass incl. air load mms = 0,45 g
  • equivalent volume of compliance Vas = 0,01 l
  • total Q factor Qts = 0,41 (Qms=0,94, Qes=0,72)
  • voice coil diameter = 28 mm
  • maximum peak linear excursion vibration xlin = +/- 0,4 mm

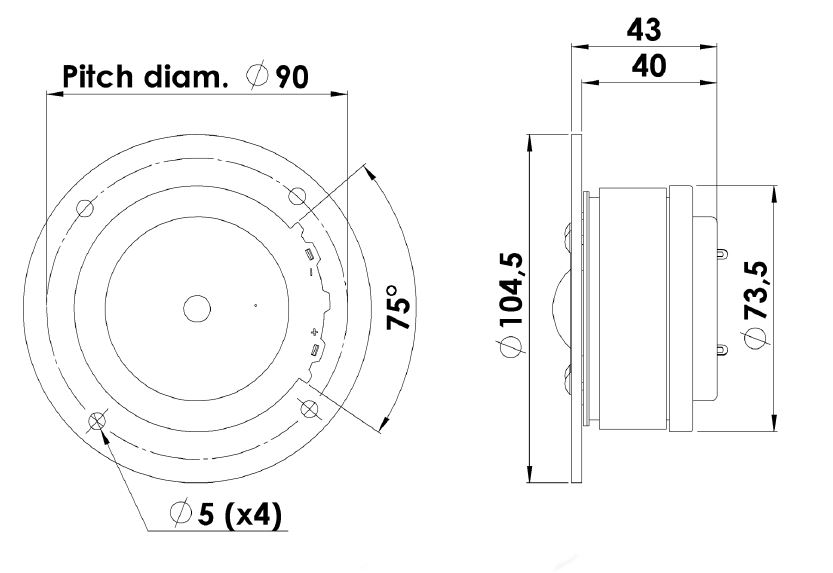

  • mounting diameter d = 73,5 mm
  • overall diameter d = 104,5 mm
  • mounting depth (not countersunk) t = 43 mm
