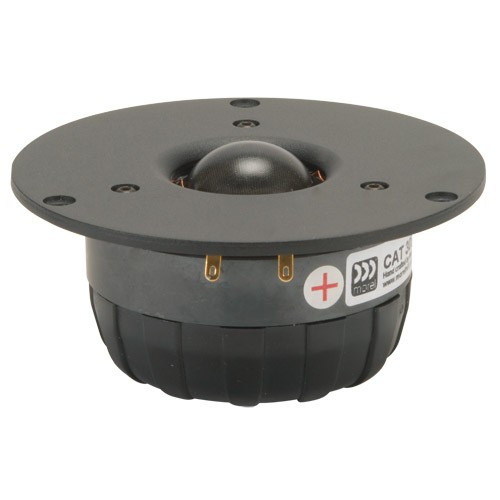

Morel CAT 308

€101.75 *

Prices incl. VAT plus shipping costs

Delivery time appr. 1-3 workdays

  • 753082
A new version of Morel's classic MDT-30, the CAT308 is a very fast tweeter capable of high... more
Product information "Morel CAT 308"

A new version of Morel's classic MDT-30, the CAT308 is a very fast tweeter capable of high dynamic range without SPL compression. It features a single magnet system vented into a damped rear chamber that lowers resonance. The ferrofluid cooled aluminum voice coil contributes to the CAT308's low distortion and exceptionally smooth response. 1-1/8" treated soft dome.



Specifications

  • power handling (continuous/programme) = 200 W
  • frequency range = 1600-25000 Hz
  • resonance frequency fs = 650 Hz

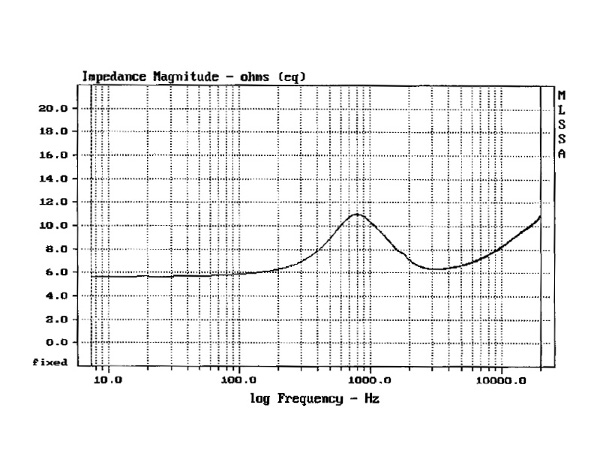

  • impedance R = 8 Ohm

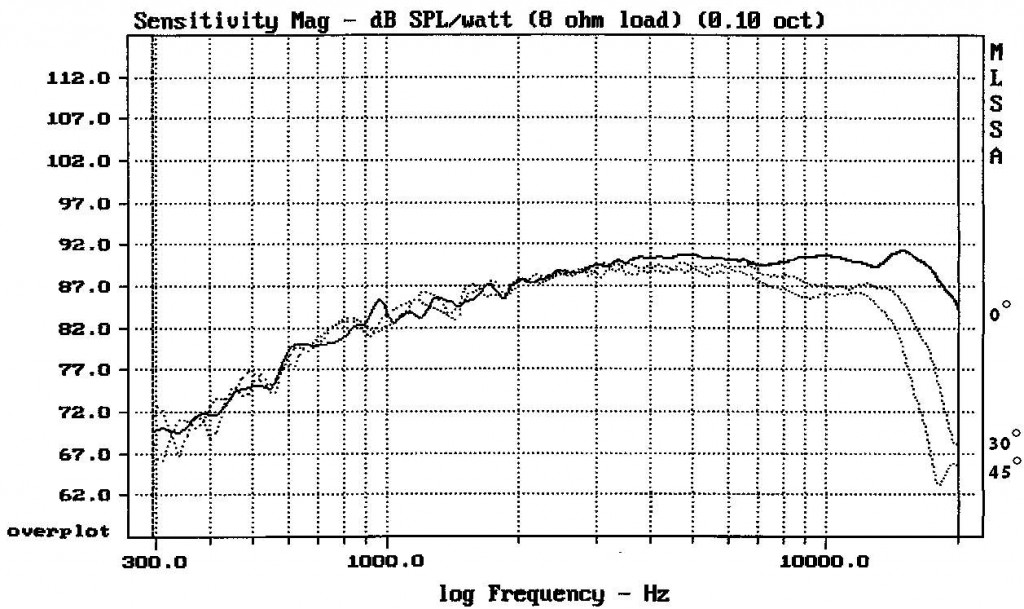

  • sound pressure level SPL = 90 dB (2,83V; 1m)
  • DC resistance Re = 5,2 Ohm
  • force factor BL = 3,5 N/A
  • voice coil inductance L = 0,09 mH
  • effective piston radiating area Sd = 6 cm2
  • effective mechanical mass incl. air load mms = 0,44 g
  • voice coil diameter = 28 mm

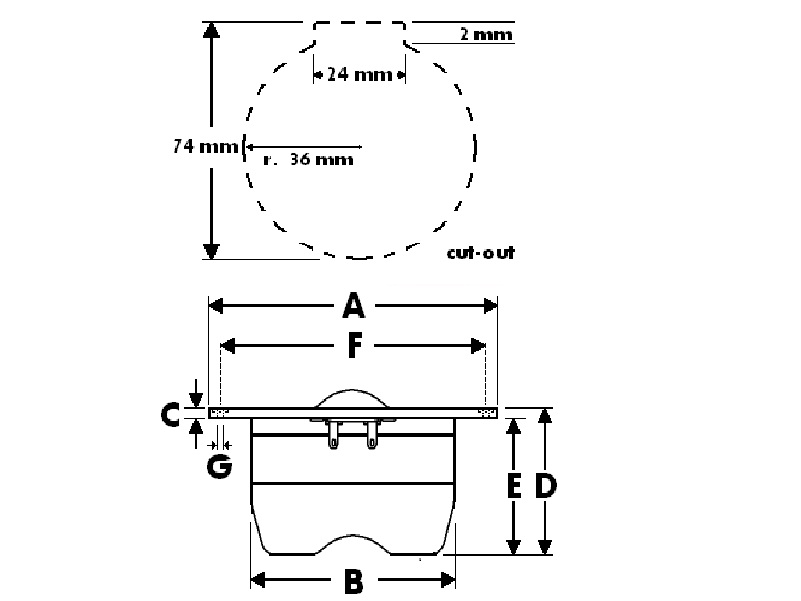

  • mounting diameter d = 72 mm
  • overall diameter d = 104 mm
  • mounting depth (not countersunk) t = 43 mm
