Vifa D27TG35-06 1" fabric tweeter features an 6 ohm 25 mm voice coil, a treated silk dome, large... more
Product information "Vifa D27TG-35/06"

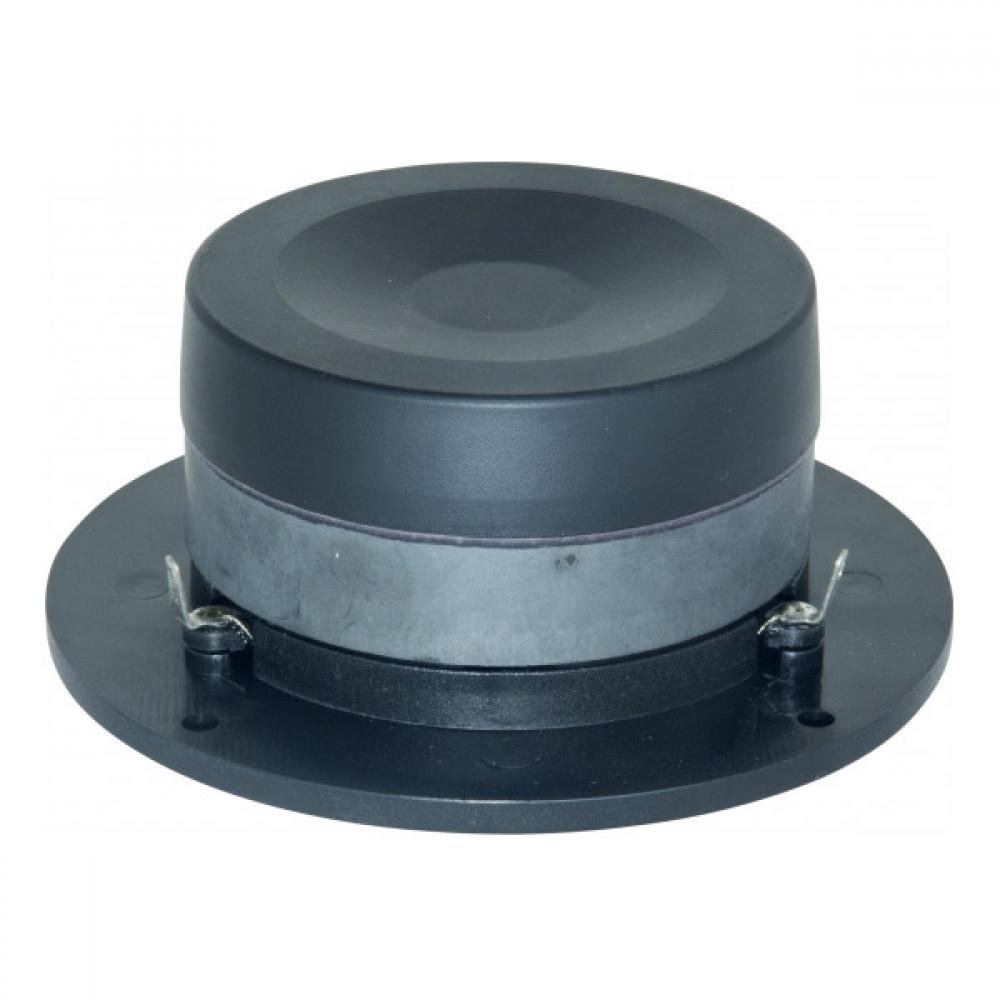

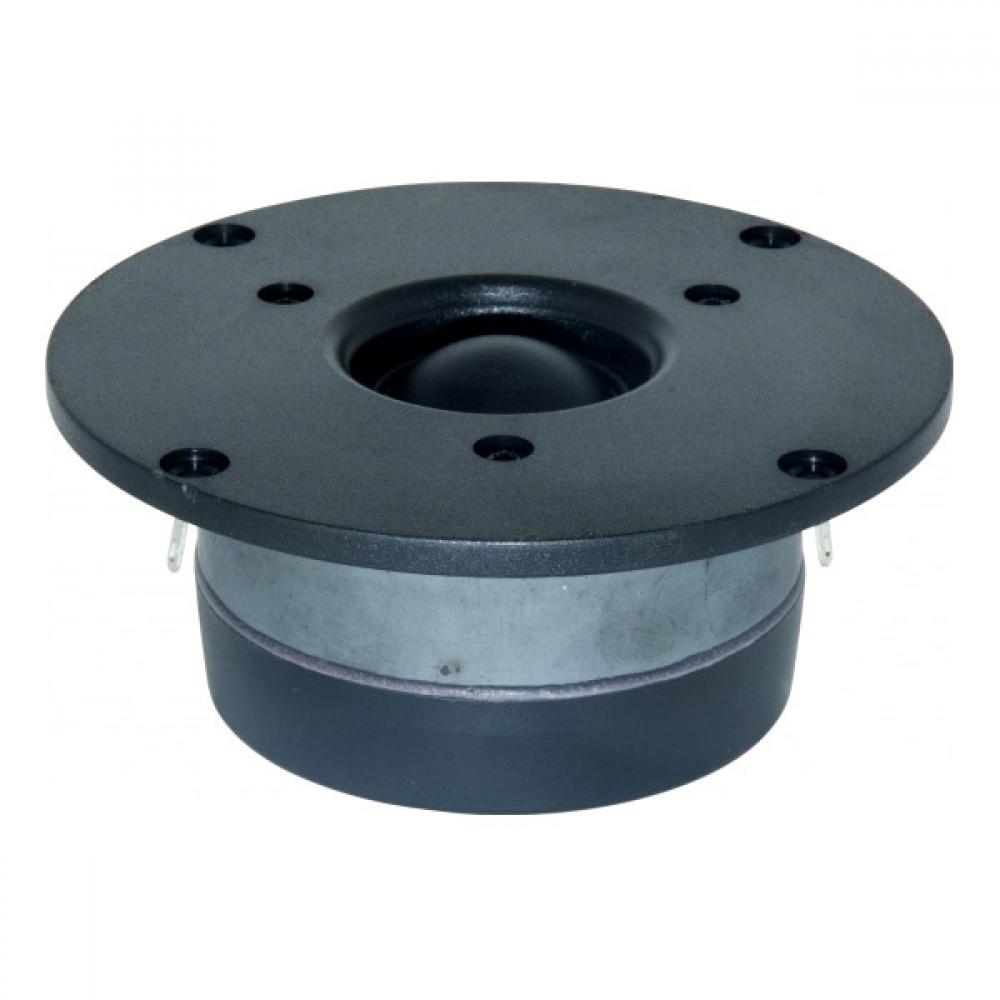

Vifa D27TG35-06 1" fabric tweeter features an 6 ohm 25 mm voice coil, a treated silk dome, large rear chamber for low resonant frequency, and a ferrofluid-cooled ferrite magnet motor. The large motor and rear chamber allow for robust power handling capacity. The tweeter comes with a faceplate with recessed mounting holes, for easy installation into the desired application.
- power handling (continuous/programme) = 100 W

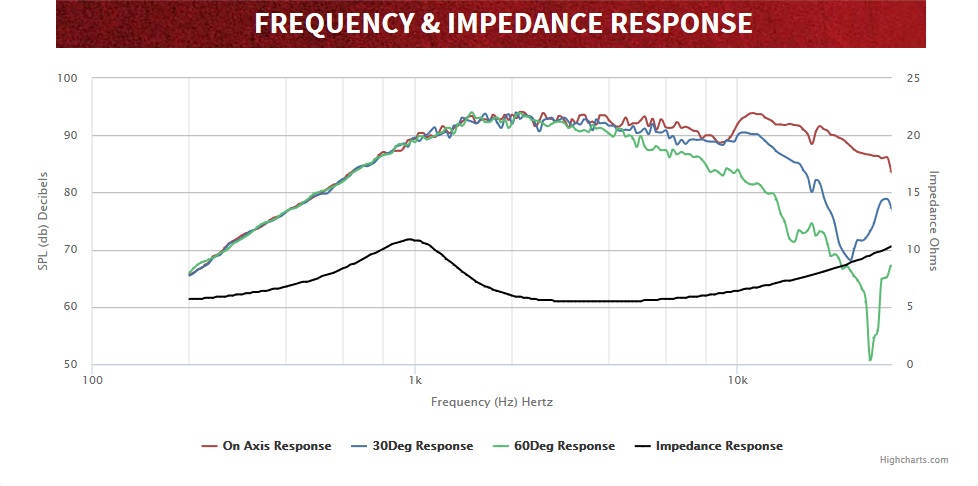

- frequency range = 2000-23000 Hz
- resonance frequency fs = 912 Hz
- impedance R = 6 Ohm
- sound pressure level SPL = 92,8 dB (2,83V; 1m)
- DC resistance Re = 4,89 Ohm
- force factor BL = 2,48 N/A
- voice coil inductance L = 0,04 mH
- effective piston radiating area Sd = 7,1 cm2
- effective mechanical mass incl. air load mms = 0,2 g
- total Q factor Qts = 0,55 (Qms=1,21, Qes=1,01)
- voice coil diameter = 25 mm
- maximum peak linear excursion vibration xlin = +/- 0,5 mm

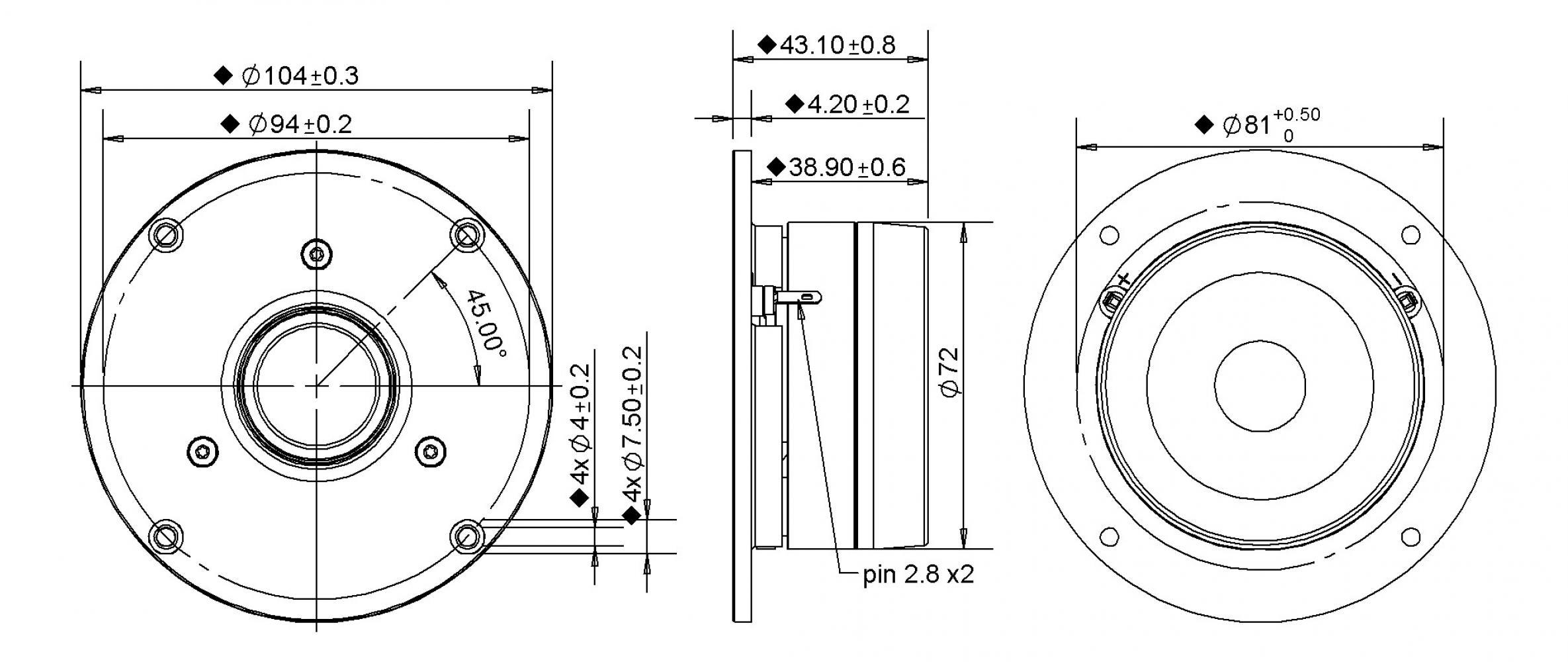

- mounting diameter d = 81 mm
- overall diameter d = 104 mm
- mounting depth (not countersunk) t = 38,9 mm
