Tangband W4-2142

€64.00 *

Prices incl. VAT plus shipping costs

Delivery time appr. 1-3 workdays

  • tbW4-2142
Tang Band's versatile W4-2142 full range driver uses an underhung voice coil, which places the... more
Product information "Tangband W4-2142"

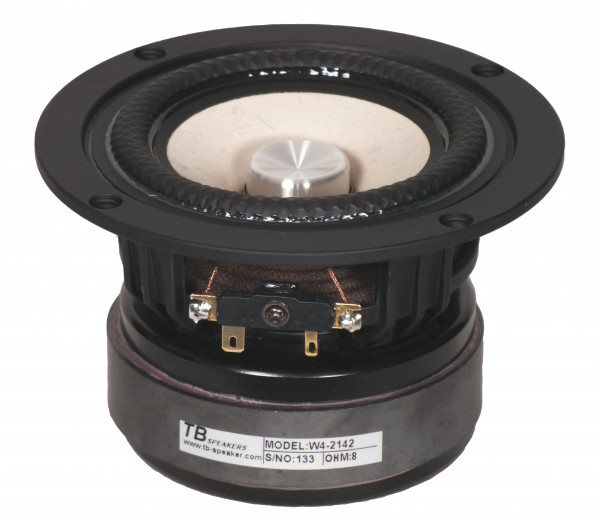

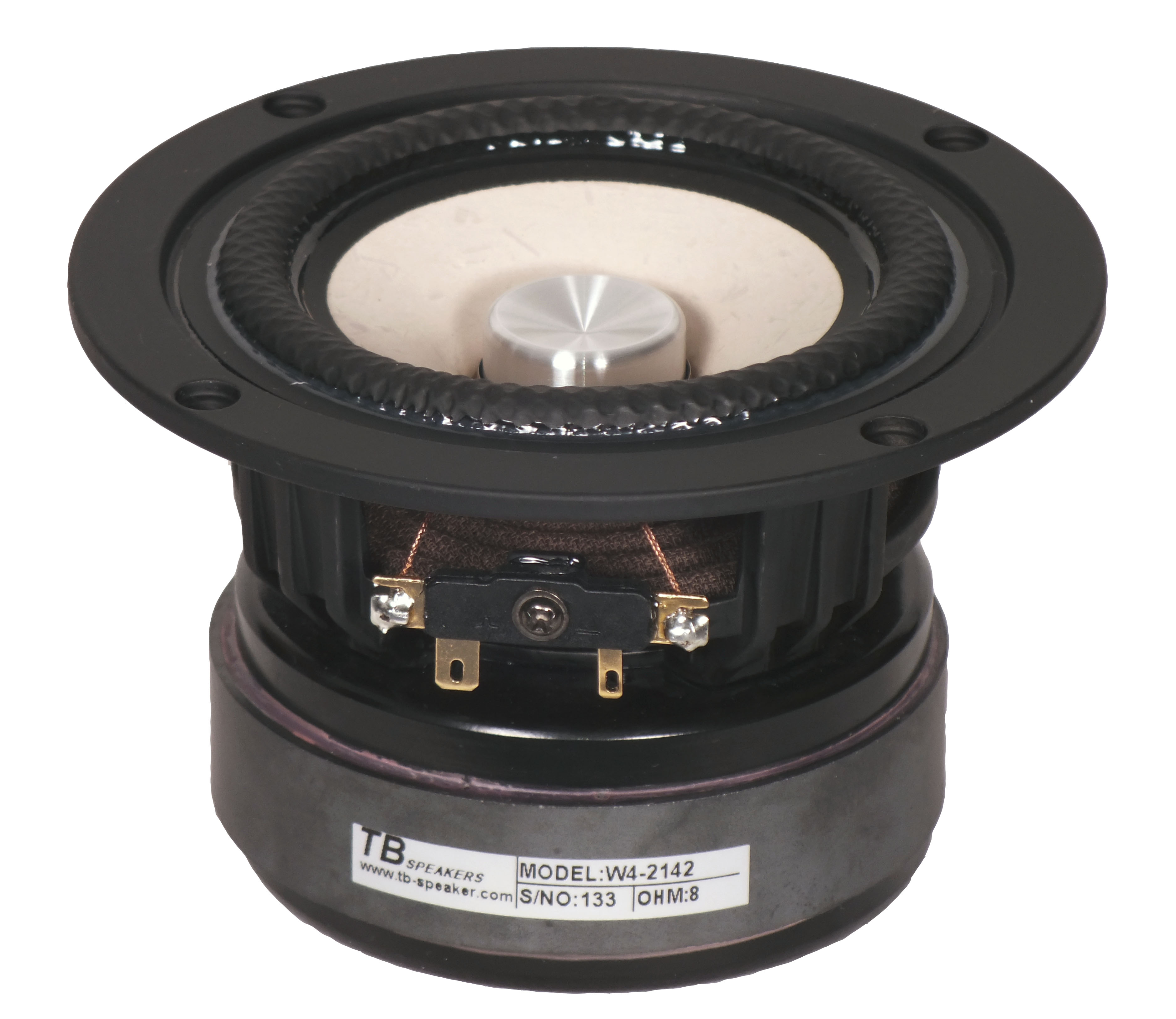

Tang Band's versatile W4-2142 full range driver uses an underhung voice coil, which places the entire coil inside the magnetic gap, for the utmost in control and accuracy. Designed for minimum distortion and resonance, the bamboo fiber paper cone and structured surround produces smooth response without harsh peaks or dips. The aluminum phase plug improves off axis response while also acting as a shorting ring providing greater control of the voice coil resulting in lower distortion.



Specifications:

  • power handling (continuous/programme) = 25/50 W

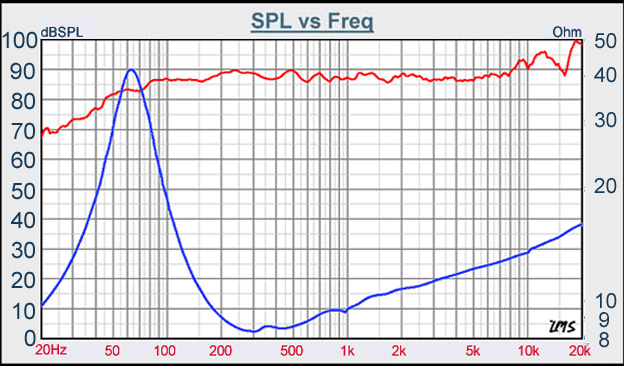

  • frequency range = 60-20000 Hz
  • resonance frequency fs = 80 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 88 dB (2,83V; 1m)
  • DC resistance Re = 6,3 Ohm
  • force factor BL = 5,41 N/A
  • voice coil inductance L = 0,022 mH
  • effective piston radiating area Sd = 57 cm2
  • effective mechanical mass incl. air load mms = 4,61 g
  • equivalent volume of compliance Vas = 6,41 l
  • total Q factor Qts = 0,33 (Qms=2,20, Qes=0,39)
  • voice coil diameter = 25,4 mm
  • maximum peak linear excursion vibration xlin = +/- 2,4 mm
  • mounting diameter d = 95 mm
  • overall diameter d = 125,5 mm
  • mounting depth (not countersunk) t = 76,2 mm
