Scan-Speak D2606/9200.00

€31.53 *

Prices incl. VAT plus shipping costs

Delivery time appr. 1-3 workdays

  • 7259200
The Scan-Speak D2606/9200 is the Danish version of the Classic Vifa D27TG15-06, now made in... more
Product information "Scan-Speak D2606/9200.00"

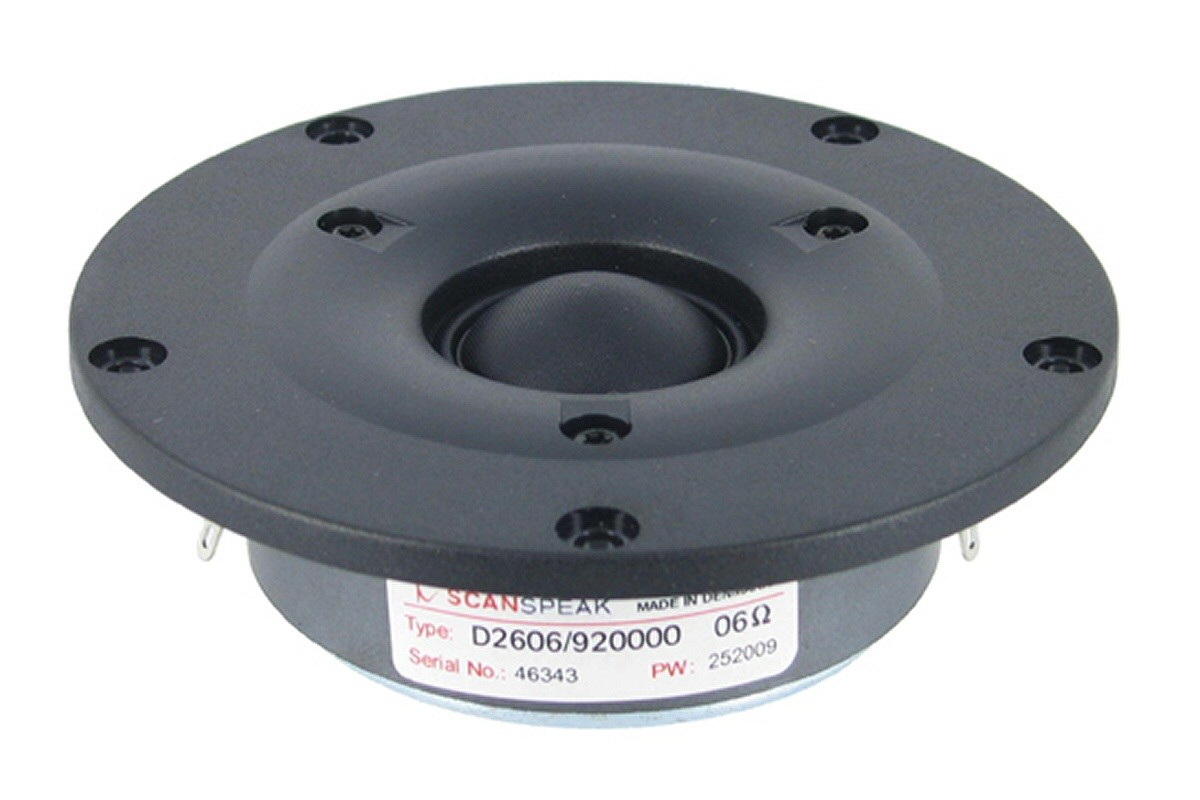

The Scan-Speak D2606/9200 is the Danish version of the Classic Vifa D27TG15-06, now made in Denmark by Scan-speak. The Discovery series offer traditional design, superior sound, a solid construction, and a wide range of variants. Combining these elements - plus a wealth of technical features and finesses - it gives our customers the possibility of acquiring a tailor-made Scan-Speak solution with very good performance at a reasonable low price point!



  • High Performance Tweeter
  • Coated Silk Fabric Diaphragm
  • Low Damping Ferrofluid Cooling
  • High Stability
  • Linear response faceplate
  • Dampened Cavity in Pole Piece
  • Braided tinsel leads
  • Neutral Design
  • Made in Denmark



Specifications

  • power handling (continuous/programme) = 100/200 W

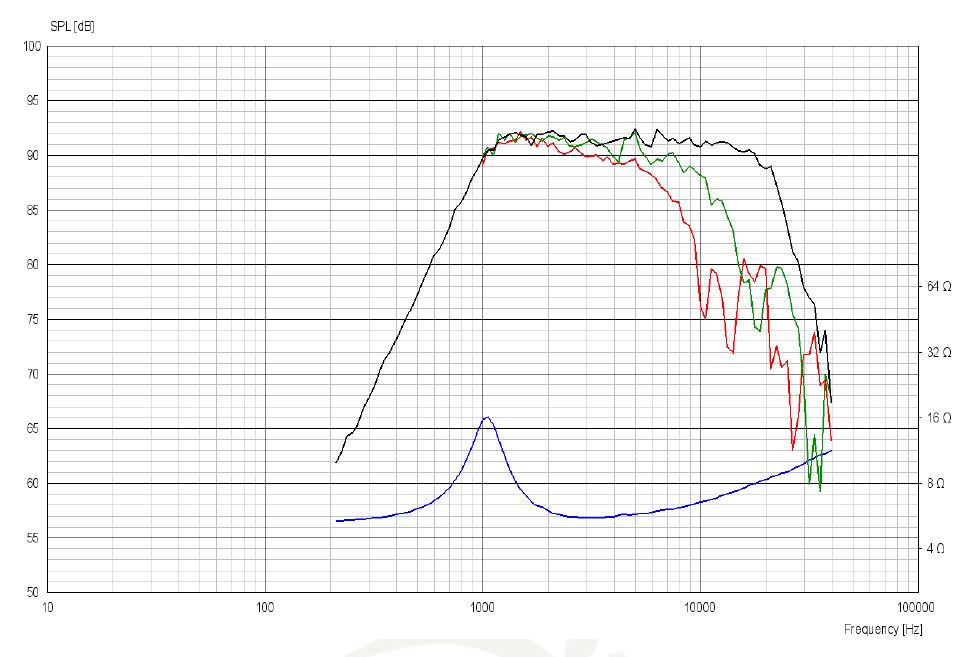

  • frequency range = 1000-22000 Hz
  • resonance frequency fs = 1100 Hz
  • impedance R = 6 Ohm
  • sound pressure level SPL = 91,4 dB (2,83V; 1m)
  • DC resistance Re = 4,6 Ohm
  • force factor BL = 2,7 N/A
  • voice coil inductance L = 0,04 mH
  • effective piston radiating area Sd = 7,1 cm2
  • effective mechanical mass incl. air load mms = 0,3 g
  • equivalent volume of compliance Vas = 0,01 l
  • total Q factor Qts = 0,84 (Qms=2,36, Qes=1,31)
  • voice coil diameter = 26 mm
  • maximum peak linear excursion vibration xlin = +/- 0,2 mm

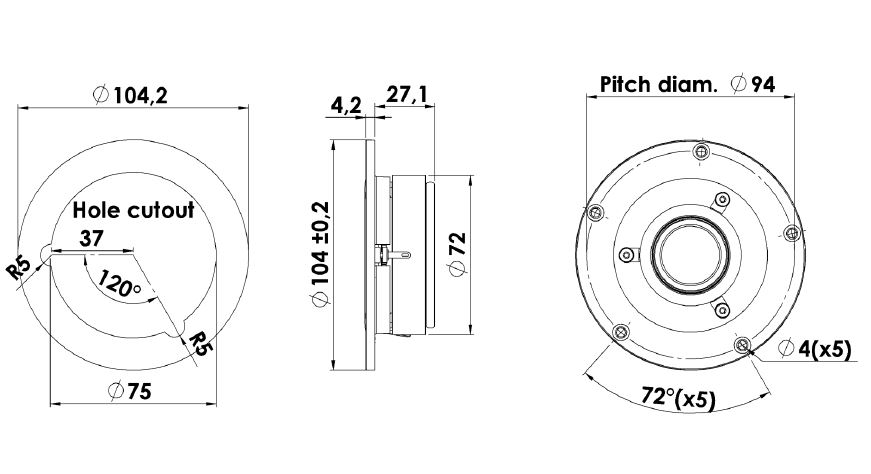

  • mounting diameter d = 72 mm
  • overall diameter d = 104 mm
  • mounting depth (not countersunk) t = 31,3 mm
