Dayton Audio DC25T-8

Dayton Audio
Preview: Dayton Audio DC25T-8 Preview: Dayton Audio DC25T-8 back Preview: Dayton Audio DC25T-8 front Preview: Dayton Audio DC25T-8 frequency curve Preview: Dayton Audio DC25T-8 impedance chart Preview: Dayton Audio DC25T-8 dimensions

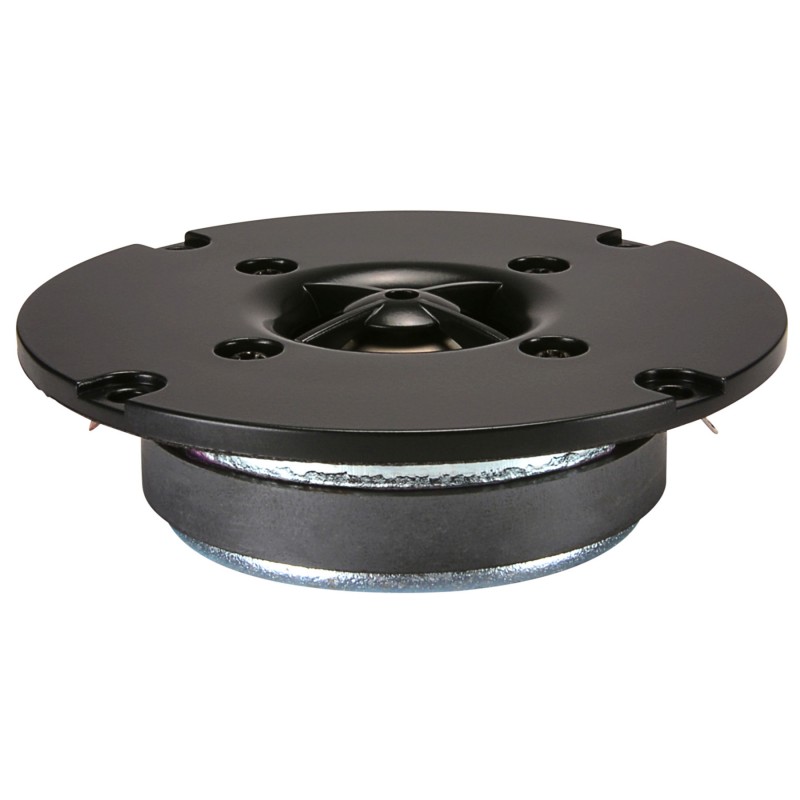

Dayton Audio DC25T-8

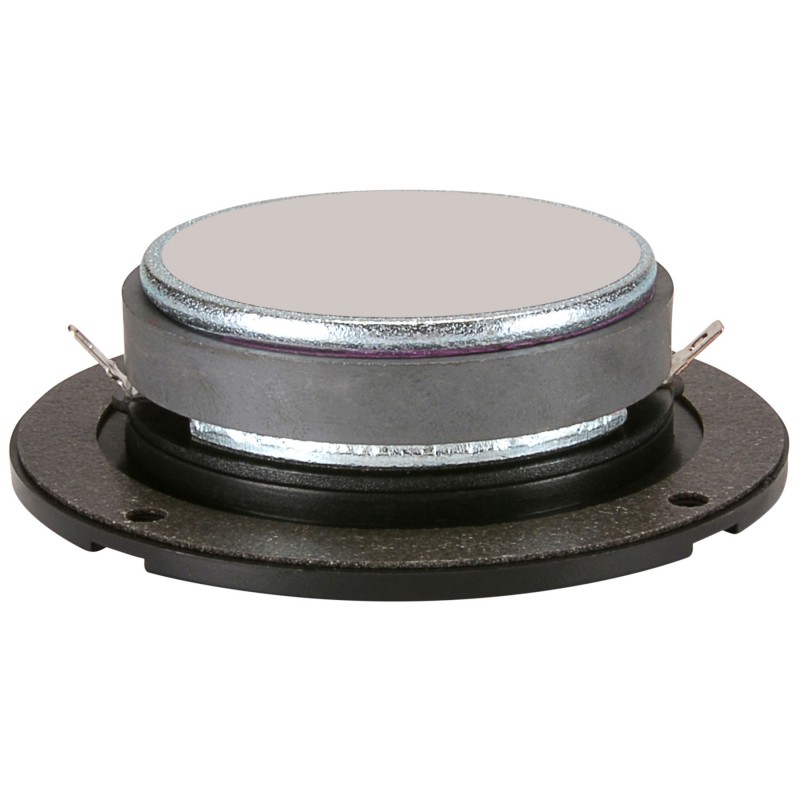

Dayton Audio DC25T-8 back

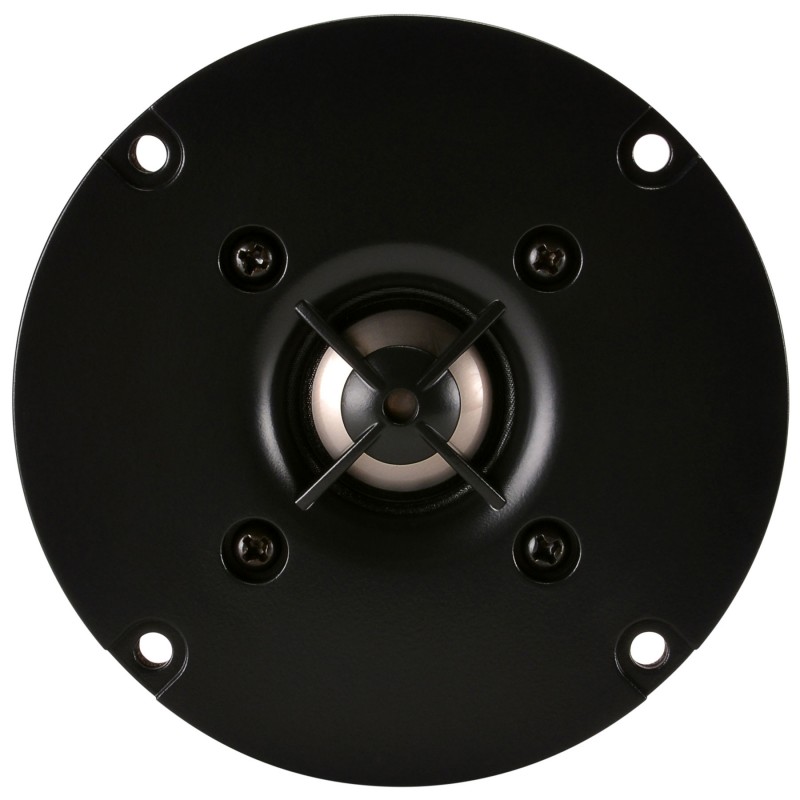

Dayton Audio DC25T-8 front

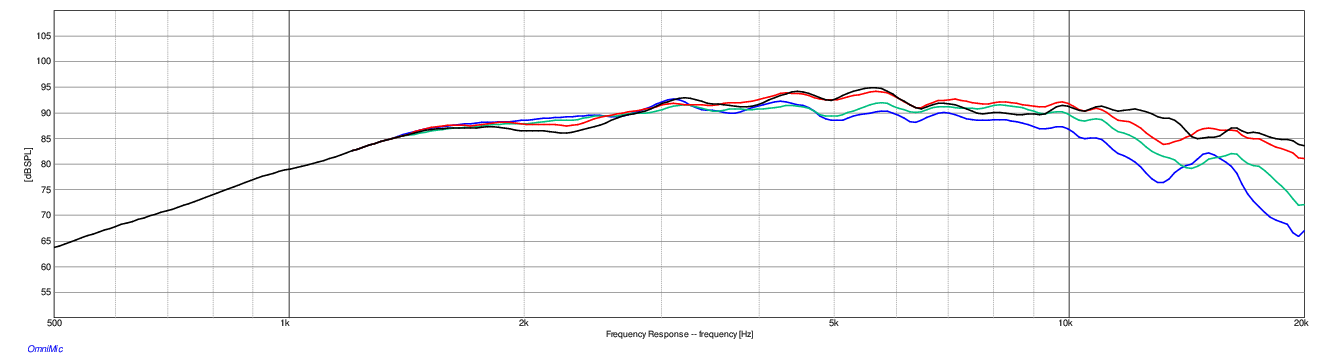

Dayton Audio DC25T-8 frequency curve

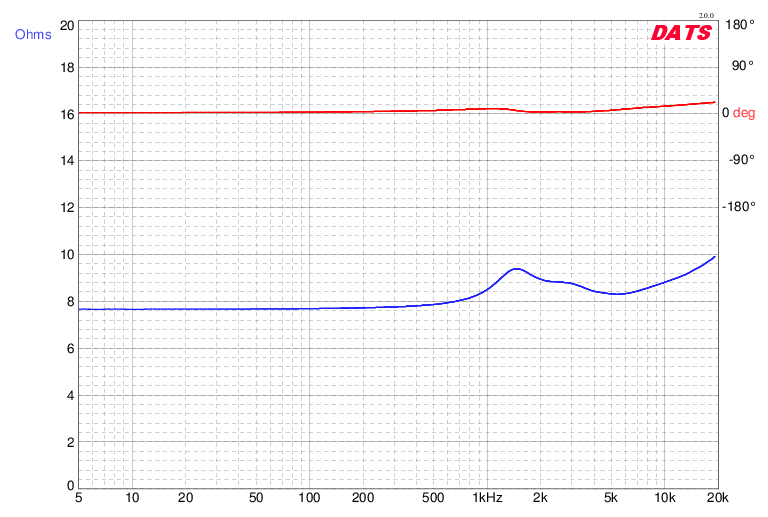

Dayton Audio DC25T-8 impedance chart

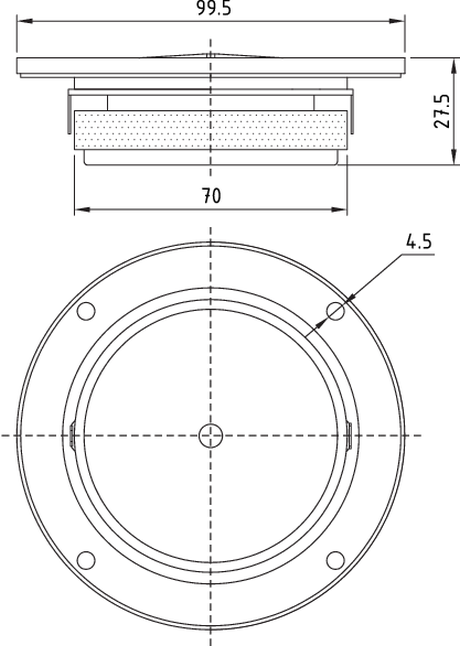

Dayton Audio DC25T-8 dimensions

€18.22 *

Prices incl. VAT plus shipping costs

Delivery time 7 Workdays

  • Order number: da-dc25t-8
Description Evaluations 0
Description
Features a ferro fluid cooled aluminum voice coil and a rubber surround. The 1" titanium dome... more
Close menu
Product information "Dayton Audio DC25T-8"
Features a ferro fluid cooled aluminum voice coil and a rubber surround. The 1" titanium dome and precision phase lens, provide very natural sounding high frequency reproduction.



Product Highlights

• Great replacement for the Dayton DC25TS-8 1" Titanium Dome Shielded Tweeter



Specifications

  • power handling (continuous/programme) = 50 W
  • frequency range = 3000-20000 Hz
  • resonance frequency fs = 1659 Hz
  • impedance R = 8 Ohm
  • DC resistance Re = 7,2 Ohm
  • voice coil inductance L = 0,08 mH
  • effective piston radiating area Sd = 4,9 cm2
  • total Q factor Qts = 0,99 (Qms=1,55, Qes=2,74)
  • voice coil diameter = 25 mm
  • mounting diameter d = 70 mm
  • overall diameter d = 99,5 mm
  • mounting depth (not countersunk) t = 27,5 mm
