- Order number: hivi-k1
K1 is a new generation of high-frequency dome loudspeaker Natural fiber high damping dome... more
Product information "HiVi K1"

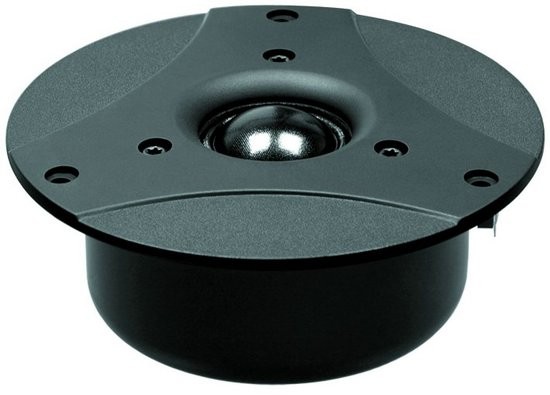

K1 is a new generation of high-frequency dome loudspeaker
Natural fiber high damping dome membrane, coated with special damping material.
Natural and detailed sound performance.

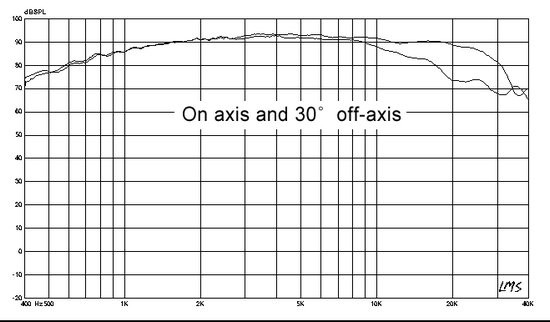

Flat frequency, could reach 25 KHz in high frequency range.
Heat-resistant alley(magnesium/aluminum) in frame, aluminum voice coil wire coated with copper, ferro fluid cooled.
K1 has high -performance magnetic structure, a symmetrical driving magnetic field for low distortion degree, 92 dB sensitivity, high magnetic density and strong faceplate with creative design. Detailed and natural performance and be used widely.
|Nominal Impedance (Z)(Ω) :||5|
|Resonance Frequency (Fs)(Hz) :||800|
|Nominal Power Handling (Pnom)(W) :||15|
|Sensitivity (2.83v/1m)(dB) :||92|
|Weight (M)(Kg) :||0.9|
|VC Diameter (mm) :||25|
|DC (Re)(Ω) :||4.6|
|VC Layers :||2|
|VC Former :||CCAW|
|VC Frame :||ALuminum|
|Magnet System :||Shielded|
|Magnet Former :||Ferrite|
|Recommended Crossover Frequency(Hz) :||>2500Hz|
