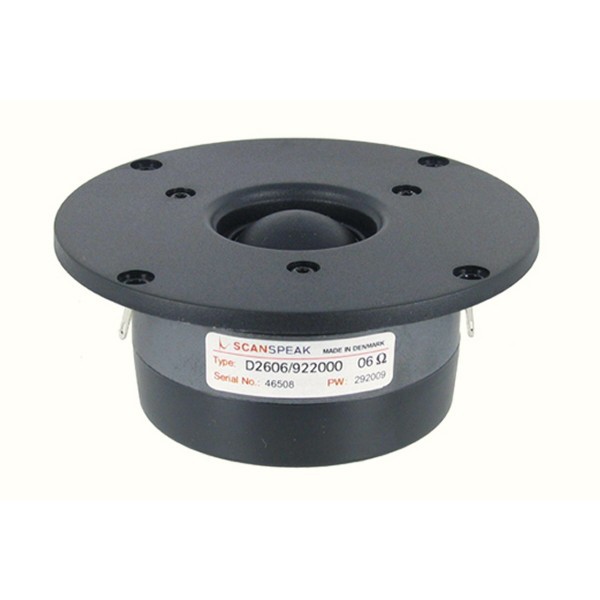

Scan-Speak D2606/9220.00

€43.91 *

Prices incl. VAT plus shipping costs

Delivery time 1-2 Workdays

  • 7259220
The ScanSpeak Discovery D2606/9220, 1" Discovery series offer traditional design, superior... more
Product information "Scan-Speak D2606/9220.00"

The ScanSpeak Discovery D2606/9220, 1" Discovery series offer traditional design, superior sound, a solid construction, and a wide range of variants. Combining these elements - plus a wealth of technical features and finesses - it gives our customers the possibility of acquiring a tailor-made Scan-Speak solution with very good performance at a reasonable low price point!

KEY FEATURES:
High Performance Tweeter
Low Damping Ferrofluid Cooling
Linear response faceplate, Neutral Design
Coated Textile Diaphragm
High Stability
Dampened Cavity in Pole Piece



This is the Danish version of the Classic Vifa D27TG35-06, now made in Denmark by Scan-speak.



Specifications

  • power handling (continuous/programme) = 100/225 W

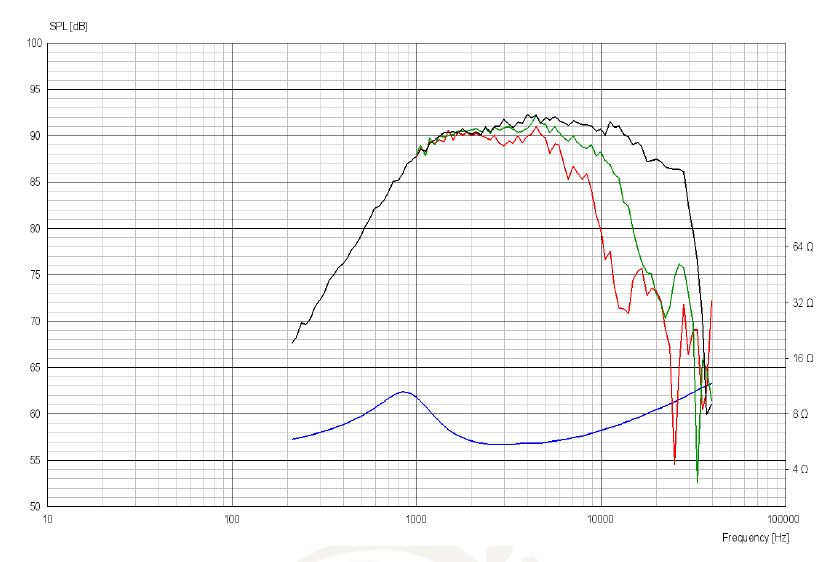

  • frequency range = 1000-21000 Hz
  • resonance frequency fs = 850 Hz
  • impedance R = 6 Ohm
  • sound pressure level SPL = 91,4 dB (2,83V; 1m)
  • DC resistance Re = 4,6 Ohm
  • force factor BL = 2,8 N/A
  • voice coil inductance L = 0,04 mH
  • effective piston radiating area Sd = 7,1 cm2
  • effective mechanical mass incl. air load mms = 0,33 g
  • equivalent volume of compliance Vas = 0,01 l
  • total Q factor Qts = 0,57 (Qms=1,22, Qes=1,07)
  • voice coil diameter = 26 mm
  • maximum peak linear excursion vibration xlin = +/- 0,2 mm

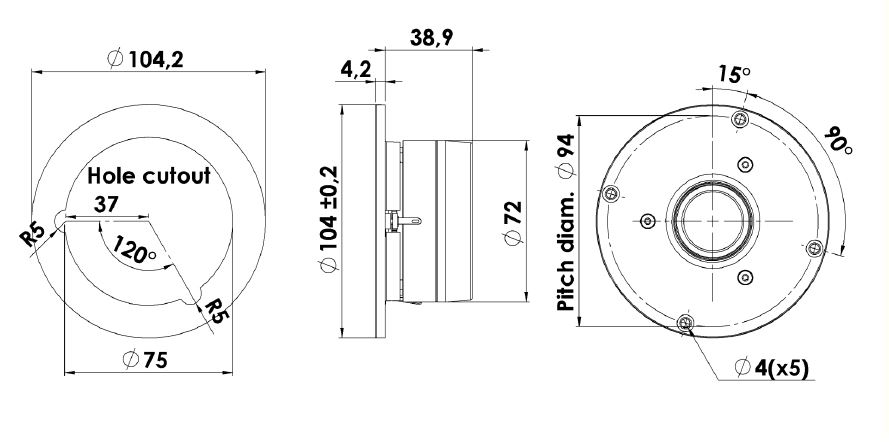

  • mounting diameter d = 72 mm
  • overall diameter d = 104 mm
  • mounting depth (not countersunk) t = 43,1 mm
