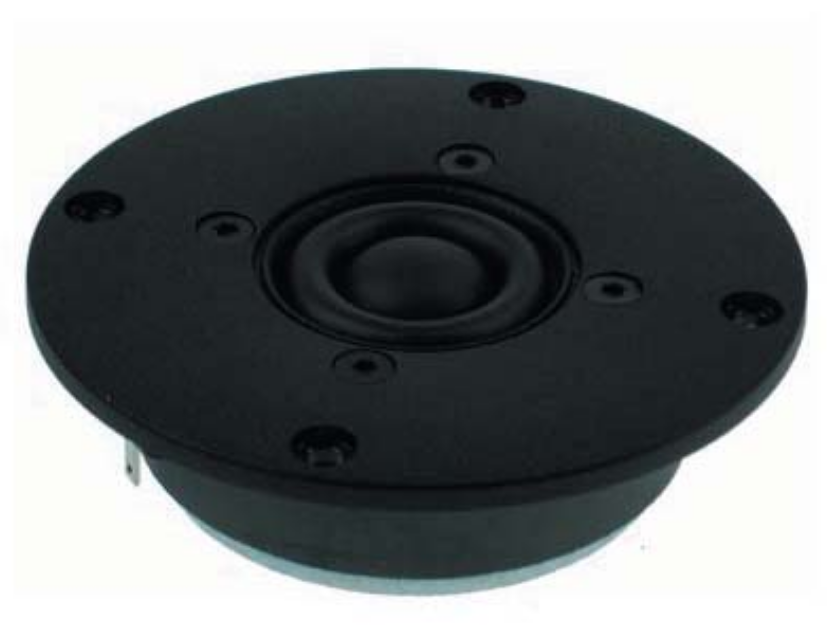

Seas 22TFF H1280-06

€39.26 *

Prices incl. VAT plus shipping costs

Delivery time appr. 1-3 workdays

  • 1381101
Seas 22TFF H1280-06 is a High Definition soft dome tweeter with a wide surround combining the... more
Product information "Seas 22TFF H1280-06"

Seas 22TFF H1280-06 is a High Definition soft dome tweeter with a wide surround combining the high frequency dispersion of a ¾” dome with the low frequency characteristics of a 1” dome.

One-piece Sonomex dome and surround allows for very tight production tolerances and high consistency, with a smooth and extended frequency response.

Voice coil windings immersed in magnetic fluid for increased power handling capacity and reduced compression at high power levels.

The chassis is moulded from a stiff and stable glass fibre reinforced polymer material, and its front design offers optimum radiation conditions.

Large ferrite magnet for high efficiency, and good transient response



Specifications

  • power handling (continuous/programme) = 90/180 W

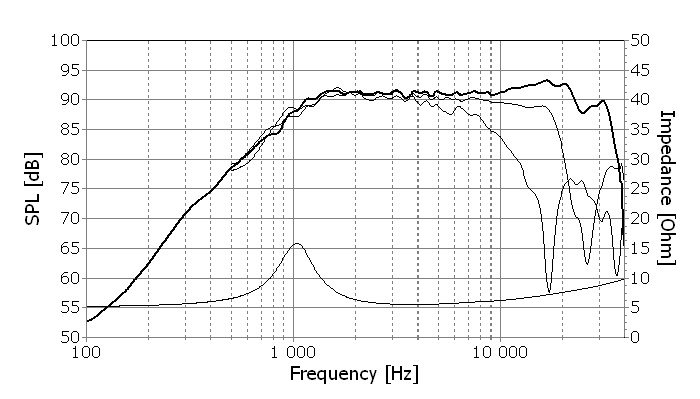

  • frequency range = 2500-20000 Hz
  • resonance frequency fs = 1050 Hz
  • impedance R = 6 Ohm
  • sound pressure level SPL = 91 dB (2,83V; 1m)
  • DC resistance Re = 4,9 Ohm
  • force factor BL = 3,3 N/A
  • voice coil inductance L = 0,05 mH
  • effective piston radiating area Sd = 5,9 cm2
  • effective mechanical mass incl. air load mms = 0,25 g
  • voice coil diameter = 19,5 mm
  • maximum peak linear excursion vibration xlin = +/- 0,4 mm

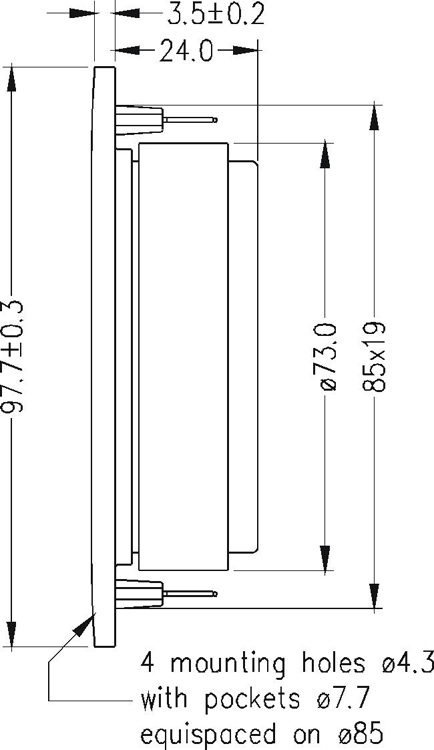

  • mounting diameter d = 85 mm
  • overall diameter d = 97,7 mm
  • mounting depth (not countersunk) t = 24 mm
