SB Acoustics SB26STCN-C000-4

SB Acoustics
Preview: SB Acoustics SB26STCN-C000-4 Preview: SB Acoustics SB26STCN-C000-4 chart Preview: SB Acoustics SB26STCN-C000-4 parameter Preview: SB Acoustics SB26STCN-C000-4 dimensions

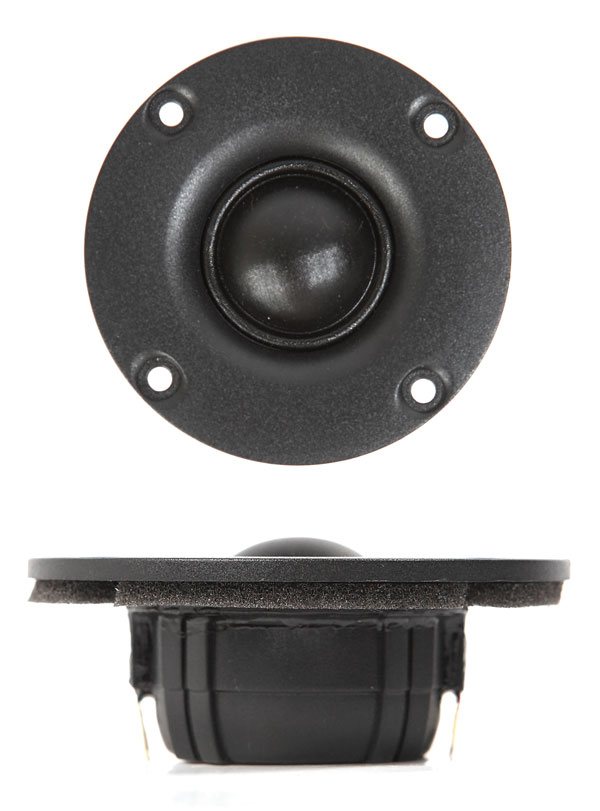

SB Acoustics SB26STCN-C000-4

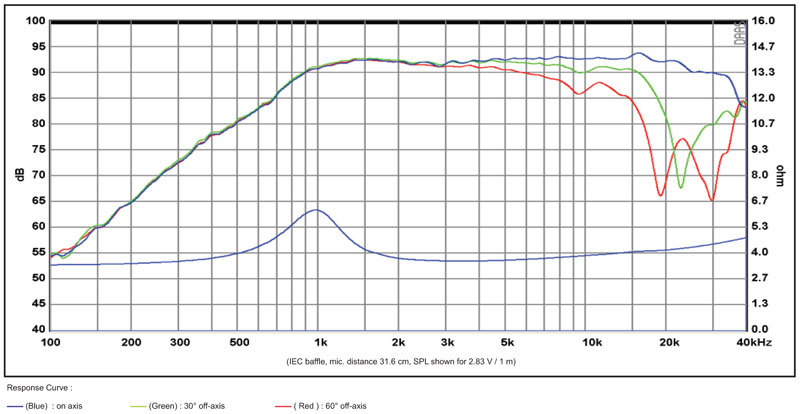

SB Acoustics SB26STCN-C000-4 chart

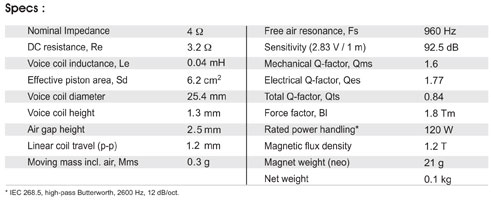

SB Acoustics SB26STCN-C000-4 parameter

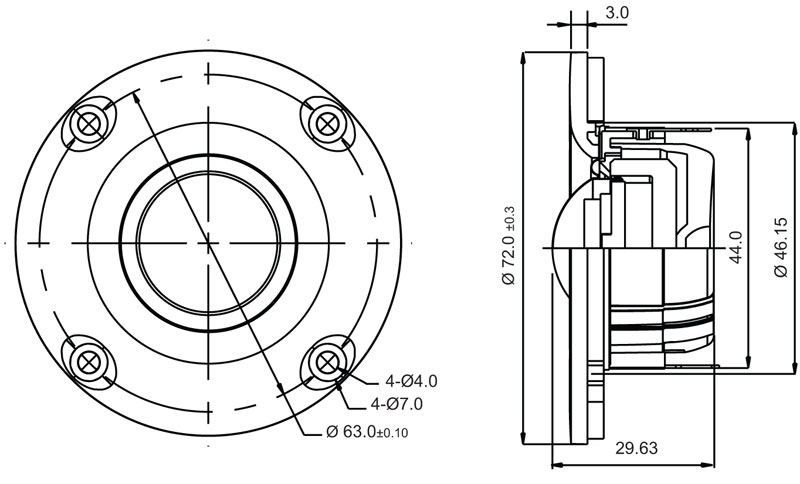

SB Acoustics SB26STCN-C000-4 dimensions

€34.50 *

Prices incl. VAT plus shipping costs

Delivery time 1-3 Workdays

  • Order number: 1382325
Description Evaluations 0
Description
SB Acoustics SB26STCN-C000-4 1" Tweeter CCAW voice coil for low moving mass Long life... more
Close menu
Product information "SB Acoustics SB26STCN-C000-4"

SB Acoustics SB26STCN-C000-4 1" Tweeter

  • CCAW voice coil for low moving mass
  • Long life silver lead wires
  • Low resonance frequency
  • Copper cap on pole piece for reduced voice coil inductance and minimum phase shift
  • Fine weave soft fabric dome for smooth frequency response
  • Inherently shielded neodymium motor system
  • Internal pressure equalization and flow resistor for non-resonant coupling of cavities
  • Compact design



Specifications

  • power handling (continuous/programme) = 120 W
  • frequency range = 600-35000 Hz
  • resonance frequency fs = 960 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 92,5 dB (2,83V; 1m)
  • DC resistance Re = 3,2 Ohm
  • force factor BL = 1,8 N/A
  • voice coil inductance L = 0,04 mH
  • effective piston radiating area Sd = 6,2 cm2
  • effective mechanical mass incl. air load mms = 0,3 g
  • total Q factor Qts = 0,84 (Qms=1,6, Qes=1,77)
  • voice coil diameter = 25,4 mm
  • mounting diameter d = 46,15 mm
  • overall diameter d = 72 mm
  • mounting depth (not countersunk) t = 29,63 mm
