Visaton WS 20 E 8Ohm

€25.99 *

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

  • 1056
Visaton WS 20 E 8Ohm   20 cm (8") HiFi woofer with polypropylene cone. Due to... more
Product information "Visaton WS 20 E 8Ohm"

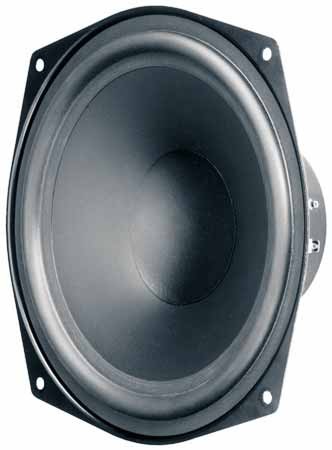

Visaton WS 20 E 8Ohm

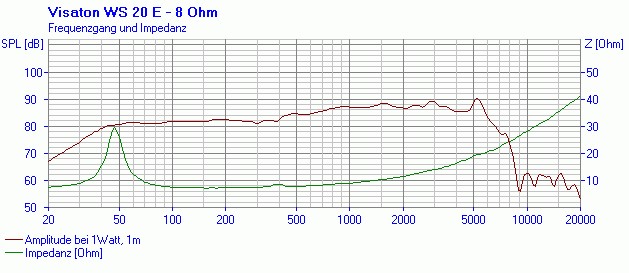

20 cm (8") HiFi woofer with polypropylene cone. Due to balanced frequency response curve suitable for 2-way-applications up to 2000 Hz and as low-midrange driver for large 4-way speaker systems as well. Due to the special basket design suitable as replacement driver for many HiFi speakers.



Specifications

  • power handling (continuous/programme) = 80/120 W
  • frequency range = -7000 Hz
  • resonance frequency fs = 47 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 88 dB (2,83V; 1m)
  • DC resistance Re = 6,8 Ohm
  • force factor BL = 5,5 N/A
  • voice coil inductance L = 1,0 mH
  • effective piston radiating area Sd = 240 cm2
  • effective mechanical mass incl. air load mms = 21 g
  • equivalent volume of compliance Vas = 44 l
  • total Q factor Qts = 1,23 (Qms=5,36, Qes=1,59)
  • voice coil diameter = 30 mm
  • maximum peak linear excursion vibration xlin = +/- 6 mm

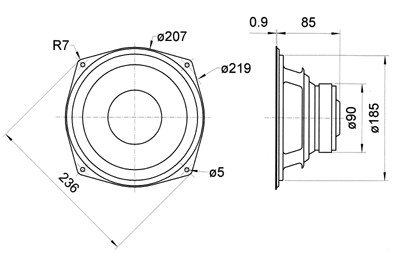

  • mounting diameter d = 186 mm
  • overall diameter d = 236 mm
  • mounting depth (not countersunk) t = 85,9 mm
  • mass m = 1,3 kg
