SB Acoustics SB26ST-C000-5

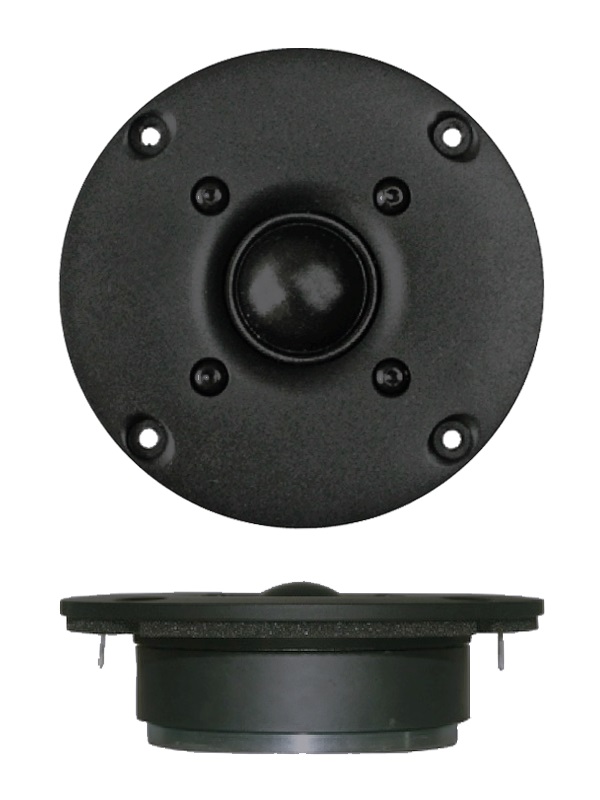

SB Acoustics SB26ST-C000-5 1" Tweeter

• Optimized damping in pole cavity to eliminate internal reflection
• Fine weave soft fabric dome for smooth frequency response
• Saturation controlled motor system for reduced distortion
• CCAW voice coil for low moving mass
• Long life silver lead wires

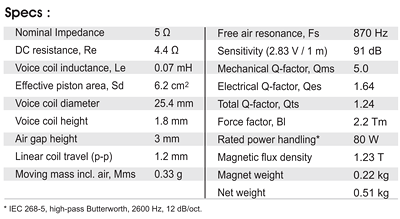

Specifications

• power handling (continuous/programme) = 80 W

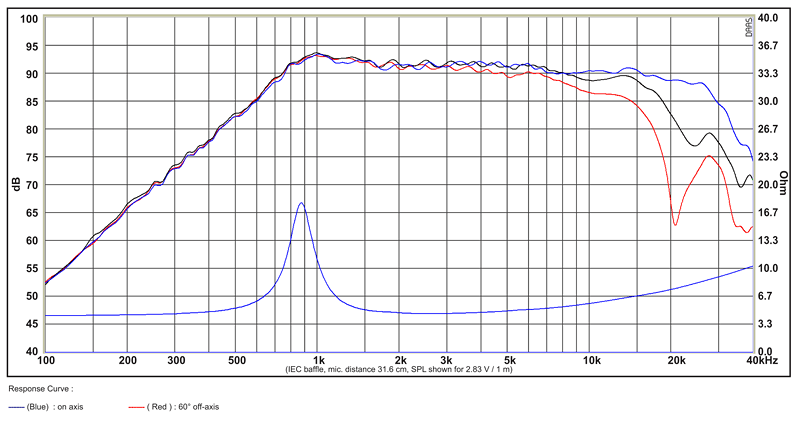

• frequency range = 900-40000 Hz
• resonance frequency fs = 870 Hz
• impedance R = 5 Ohm
• sound pressure level SPL = 91 dB (2,83V; 1m)
• DC resistance Re = 4.4 Ohm
• force factor BL = 2.2 N/A
• voice coil inductance L = 0,07 mH
• effective piston radiating area Sd = 6.2 cm²
• effective mechanical mass incl. air load mms = 0.33 g
• total Q factor Qts = 1.24 (Qms=5.0, Qes=1.64)
• voice coil diameter = 25,4 mm

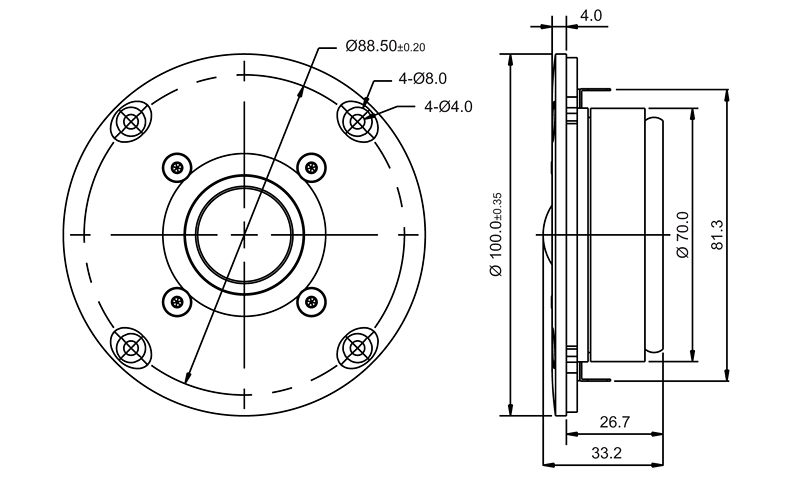

• mounting diameter d = 82 mm
• overall diameter d = 100 mm
• mounting depth (not countersunk) t = 26.7 mm
