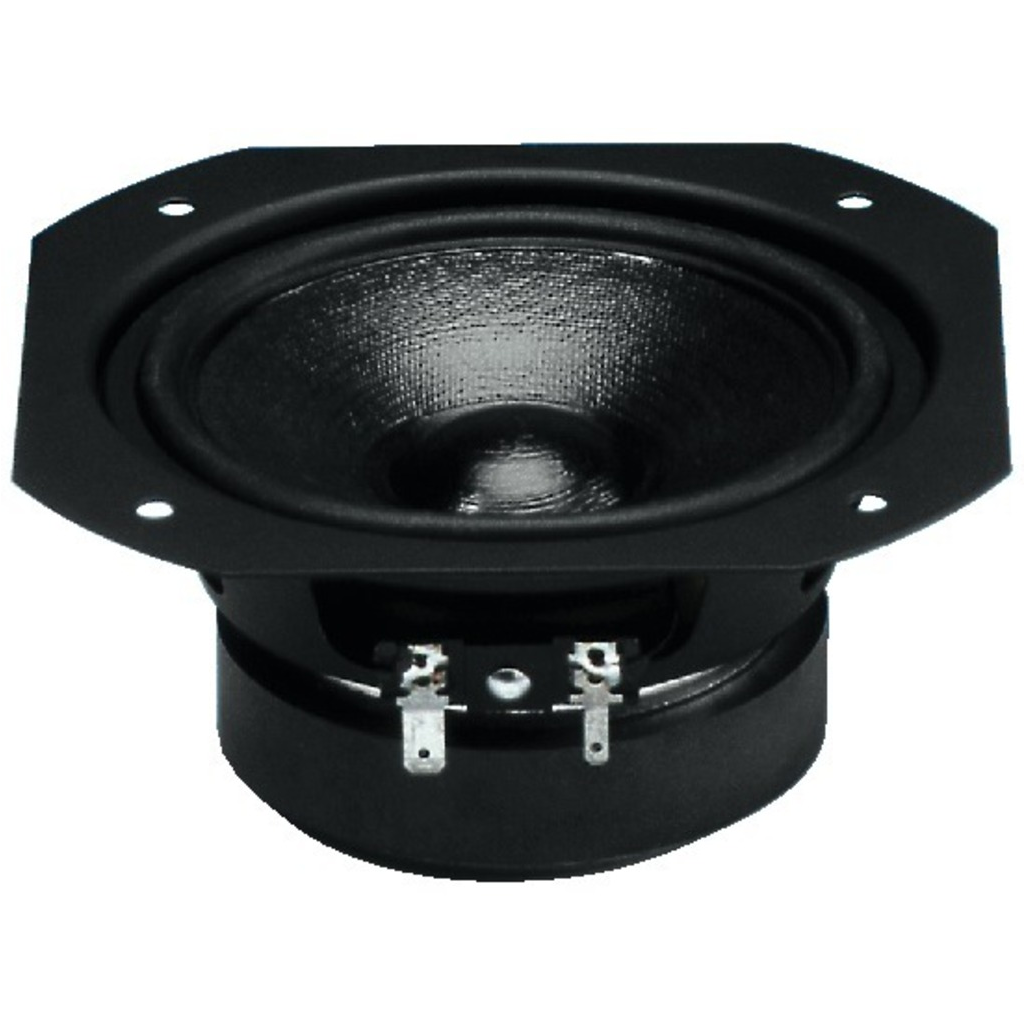

Monacor MSH-115

A design which has become classic by now and materials which seem to be basic but of perfect workmanship, thus allowing for an excellent sound!

Specifications

• power handling (continuous/programme) = 50/120 W

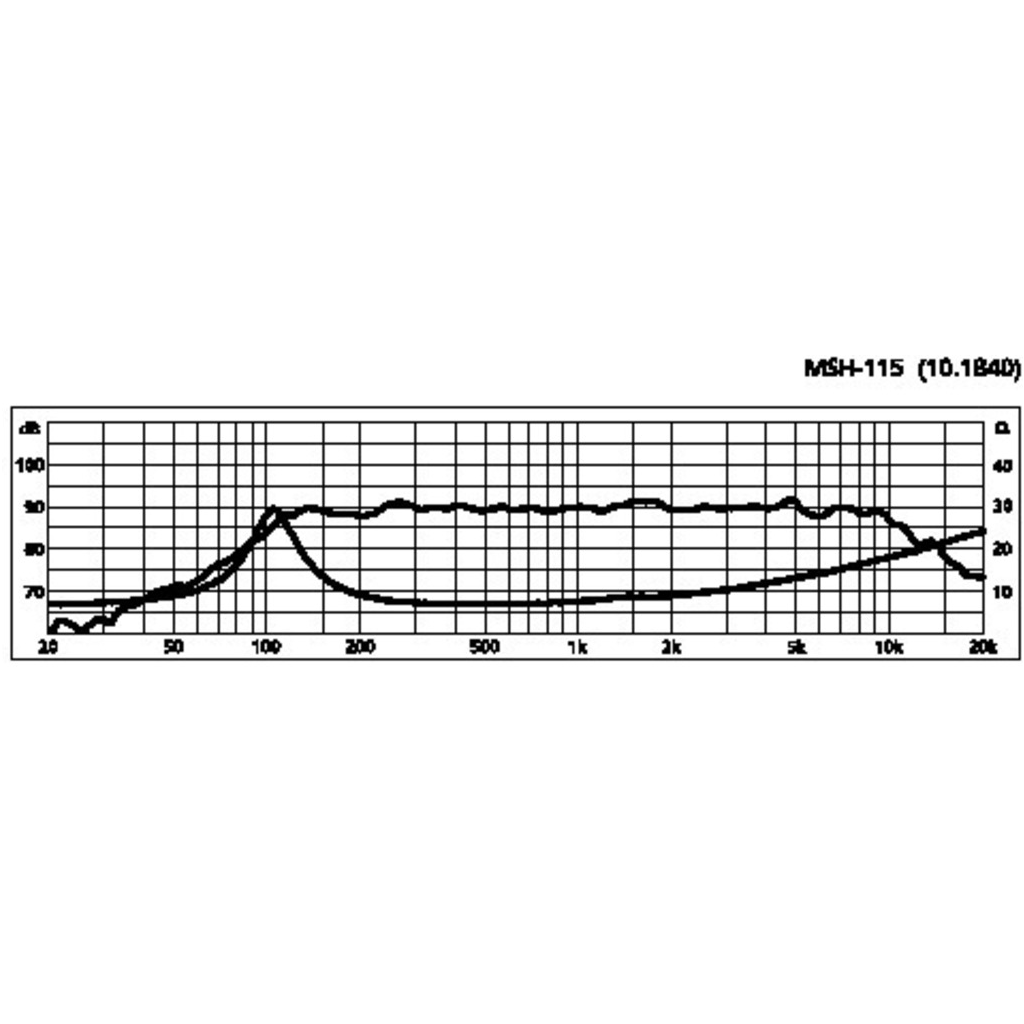

• frequency range = 100-10000 Hz
• resonance frequency fs = 85 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 89 dB (2,83V; 1m)
• DC resistance Re = 6,3 Ohm
• force factor BL = 4,8 N/A
• voice coil inductance L = 0,3 mH
• effective piston radiating area Sd = 55 cm²
• effective mechanical mass incl. air load mms = 4,5 g
• equivalent volume of compliance Vas = 4 l
• total Q factor Qts = 0,43 (Qms=1,98, Qes=0,55)
• voice coil diameter = 25 mm
• maximum peak linear excursion vibration x_lin = +/- 1,5 mm

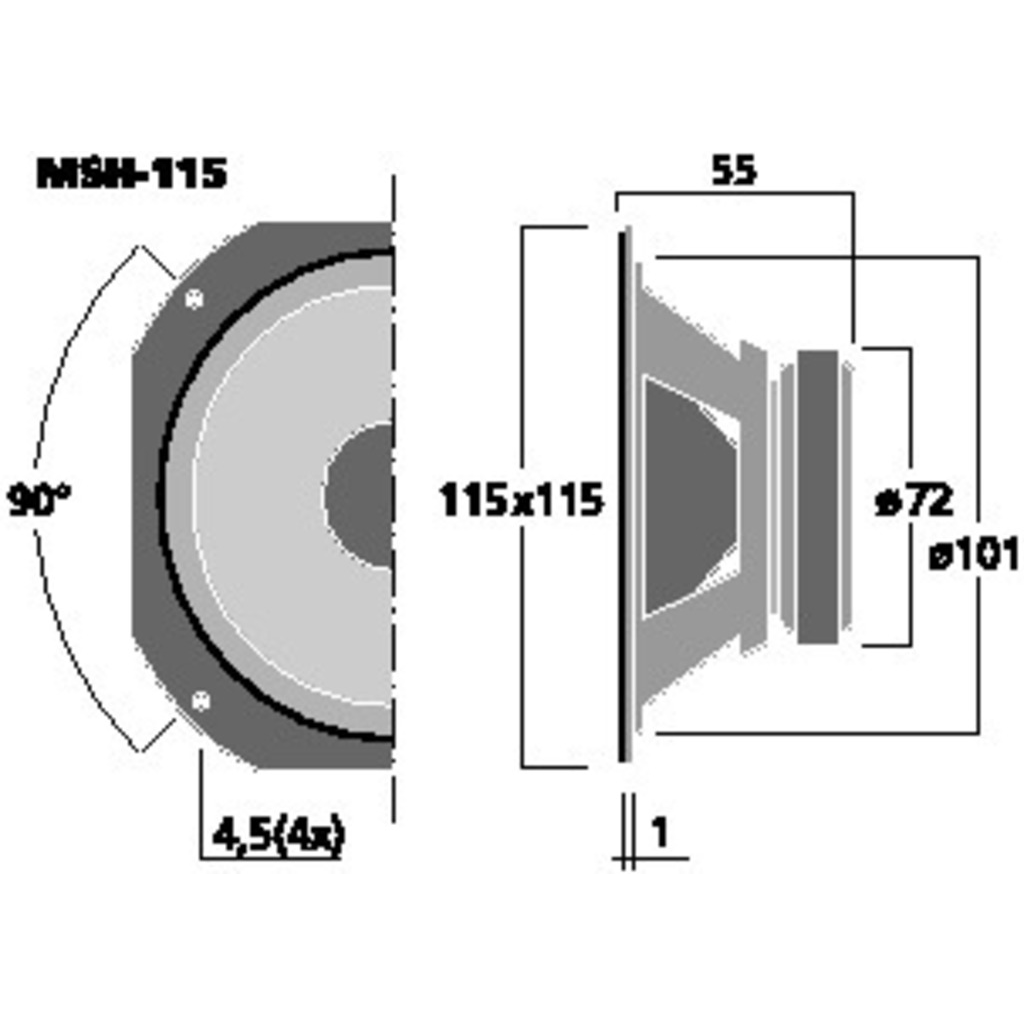

• mounting diameter d = 101 mm
• overall diameter d = 115x115 mm
• mounting depth (not countersunk) t = 55 mm
