Monacor MSH-116/4

€44.25 *

Prices incl. VAT plus shipping costs

Delivery time 1-3 Workdays

  • SW10147
Hi-fi midrange speaker, 40 W, 4 Ω High-end technology Coated special cone... more
Product information "Monacor MSH-116/4"

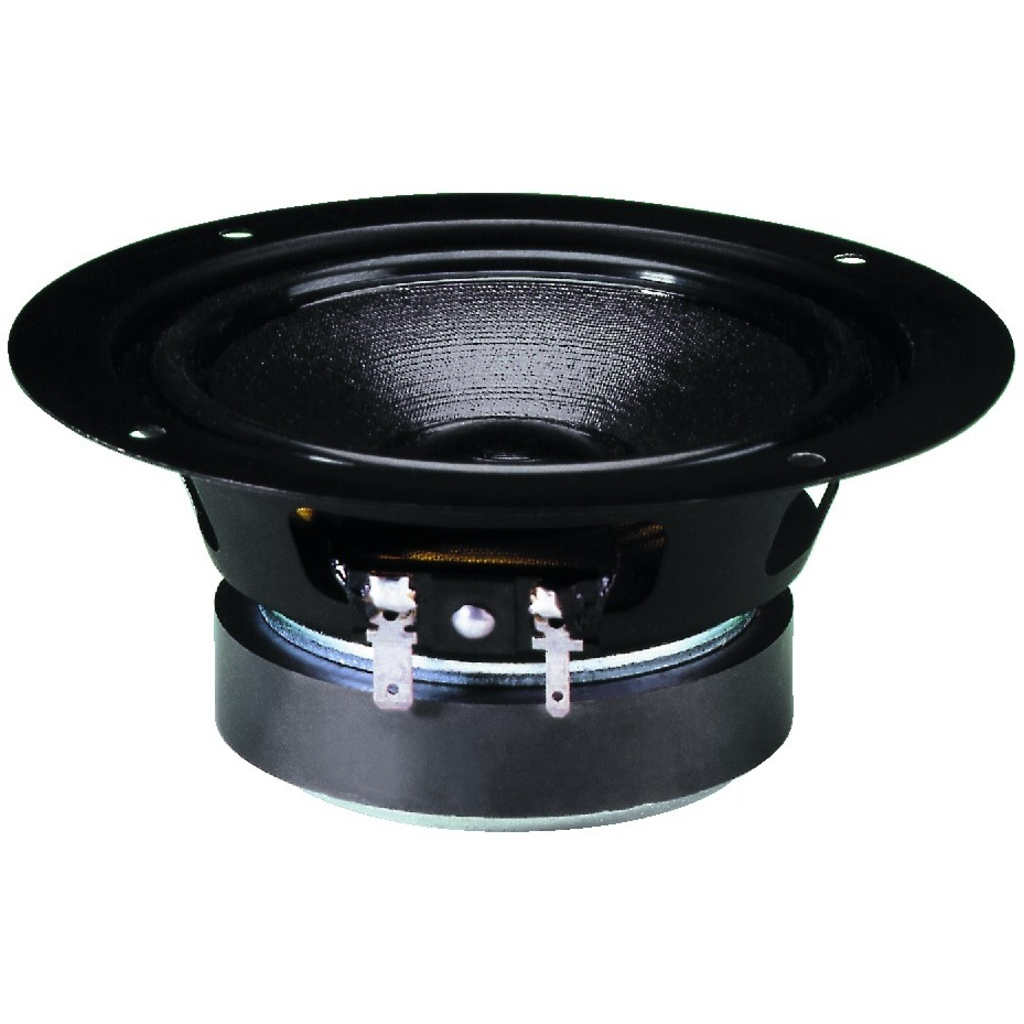

Hi-fi midrange speaker, 40 W, 4 Ω

  • High-end technology
  • Coated special cone
  • Dust cap with high damping
  • Extra flat basket (does not have to be recessed)
  • Best possible linearity
  • Perfect mass-drive ratio with a wide bandwidth
  • For a sound of the extra class

HOBBY HiFi 03/2015
"The MSH-116/4 impresses with a perfect sound, a surprisingly wide bandwidth and a high efficiency - a really great midrange speaker."



Specifications

  • power handling (continuous/programme) = 40/120 W

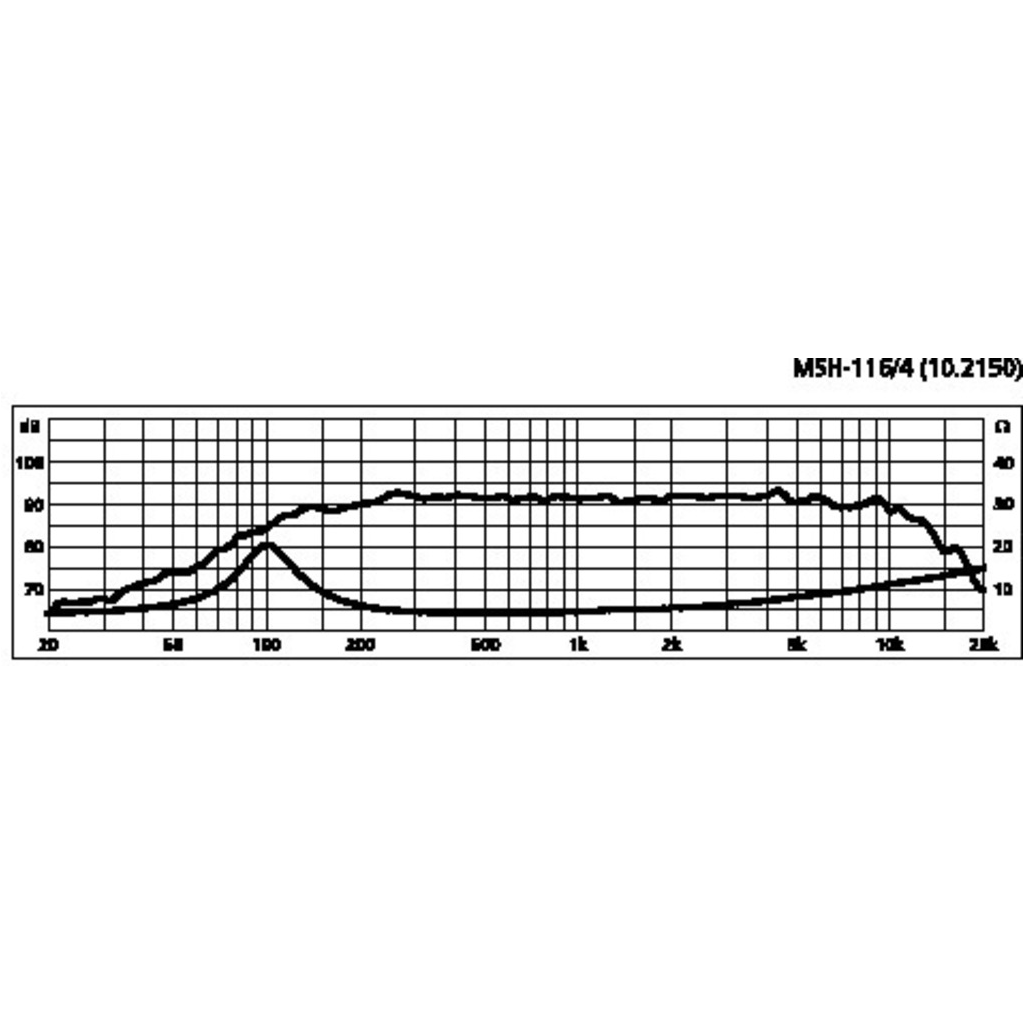

  • frequency range = 120-10000 Hz
  • resonance frequency fs = 95 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 91 dB (2,83V; 1m)
  • DC resistance Re = 3,2 Ohm
  • force factor BL = 4,3 N/A
  • voice coil inductance L = 0,18 mH
  • effective piston radiating area Sd = 55 cm2
  • effective mechanical mass incl. air load mms = 4,6 g
  • equivalent volume of compliance Vas = 2,7 l
  • total Q factor Qts = 0,4 (Qms=2,38, Qes=0,48)
  • voice coil diameter = 25 mm
  • maximum peak linear excursion vibration xlin = +/- 1 mm

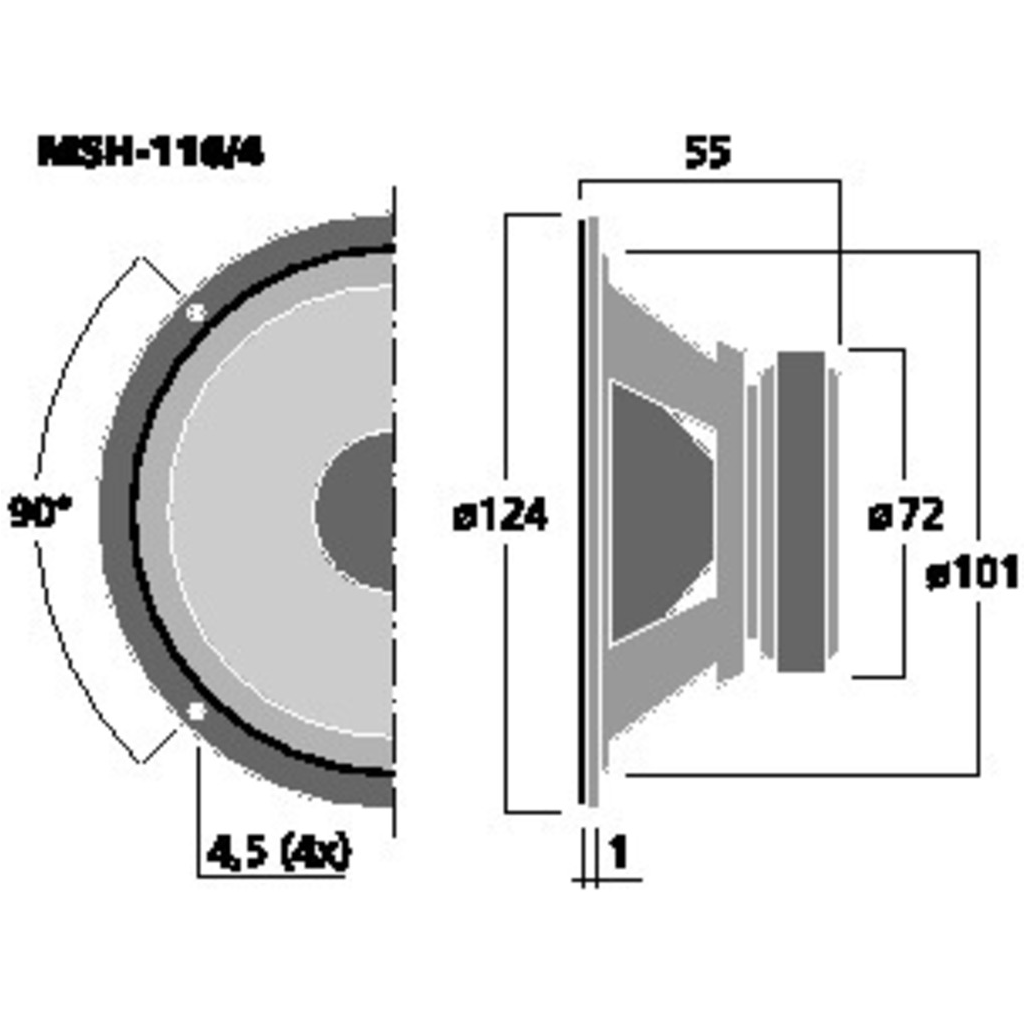

  • mounting diameter d = 101 mm
  • overall diameter d = 124 mm
  • mounting depth (not countersunk) t = 55 mm
