Scan-Speak D2004/6020.00

€148.55 *

Prices incl. VAT plus shipping costs

Delivery time 1-2 Workdays

  • 7360100
The Scan-Speak D2004/6020.00 3/4" Softdome Illuminator tweeters continue on with the heritage of... more
Product information "Scan-Speak D2004/6020.00"

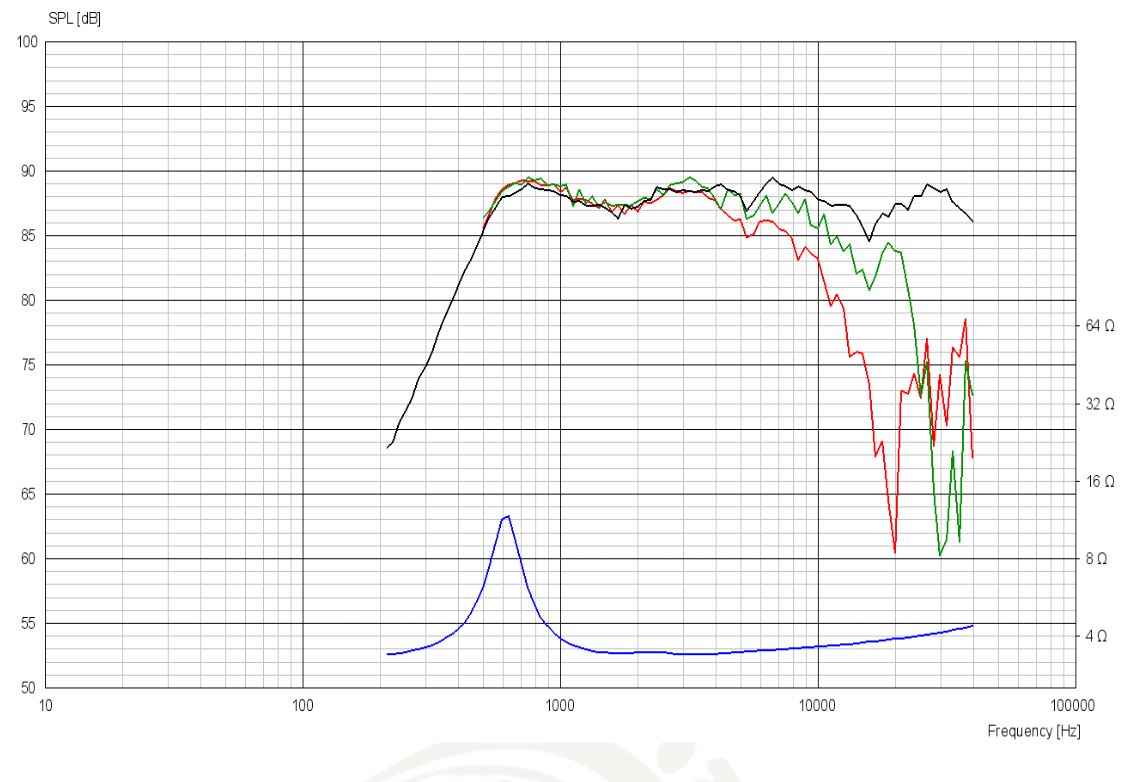

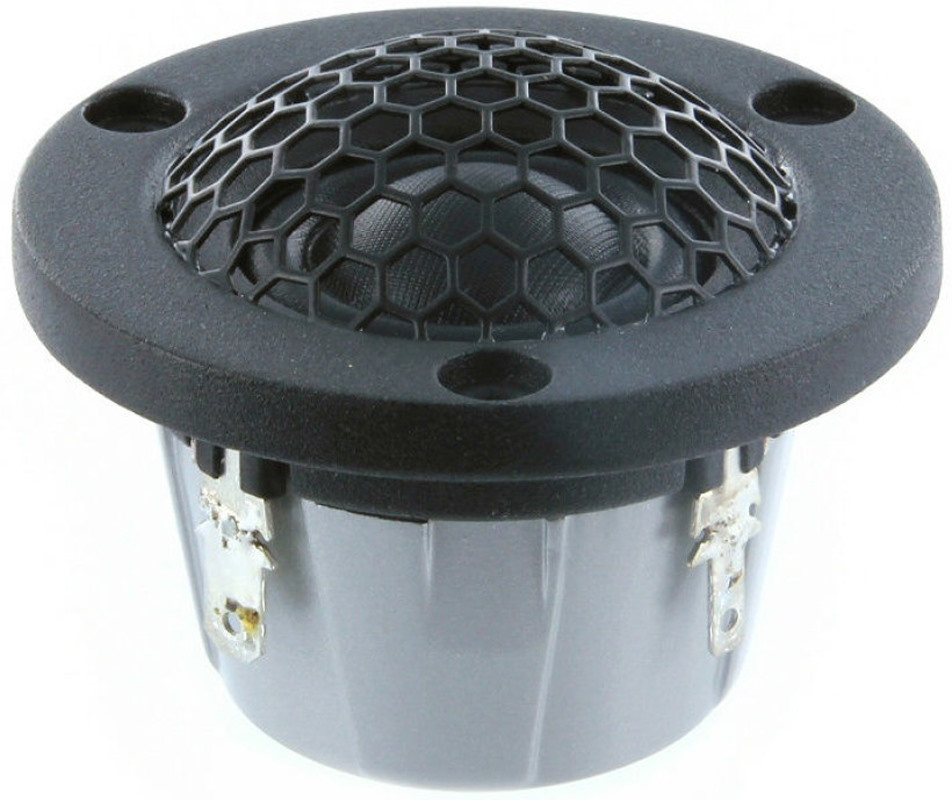

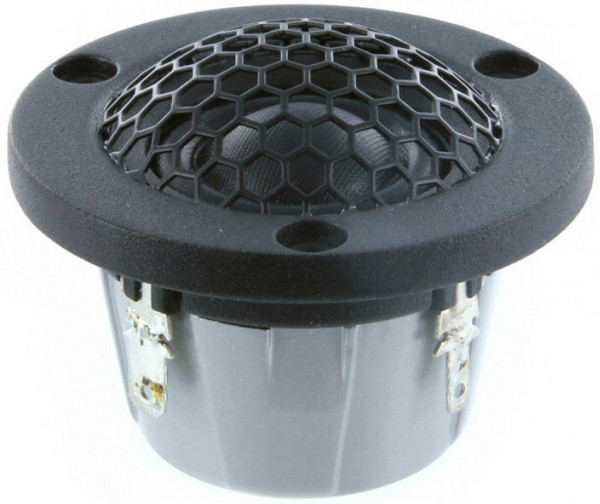

The Scan-Speak D2004/6020.00 3/4" Softdome Illuminator tweeters continue on with the heritage of the renowned Revelator D29. The large-roll surround and textile dome diaphragm provide a flat frequency response to above 30KHz with outstanding off-axis dispersion. The face plates are die cast in aluminum for a beautiful look with maximum mechanical stability. D2004/602000 is optimized to offer small package sizes that can fit into tight spaces such as compact cabinets and automotive trim pieces. The back chamber is die cast in aluminium and designed with a contoured shape that functions as a heat sink in high power applications.


  • 3/4" Soft Dome
  • Ring Neodymium Magnet
  • Aluminum Face Plate and Housing
  • Protective Grill
  • Shallow Chamber

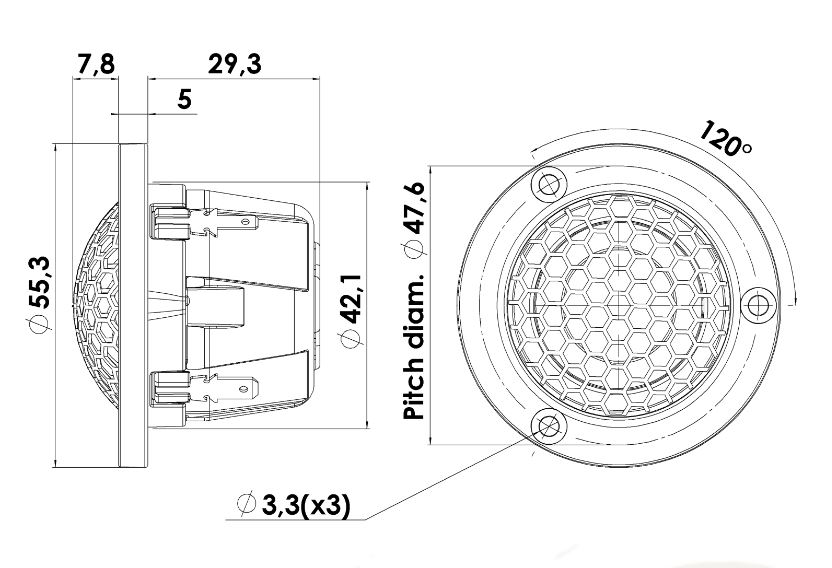

  • 55.5mm (2.18") diameter flange with 29.3mm (1.15") depth
  • Excellent choice for both home hi-fi and autosound applications



  • power handling (continuous/programme) = 50/120 W
  • frequency range = 1000-35000 Hz
  • resonance frequency fs = 600 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 88,4 dB (2,83V; 1m)
  • DC resistance Re = 2,8 Ohm
  • force factor BL = 1,3 N/A
  • voice coil inductance L = 0,02 mH
  • effective piston radiating area Sd = 4,5 cm2
  • effective mechanical mass incl. air load mms = 0,22 g
  • equivalent volume of compliance Vas = 0,01 l
  • total Q factor Qts = 1,07 (Qms=4,42, Qes=1,42)
  • voice coil diameter = 19 mm
  • maximum peak linear excursion vibration xlin = +/- 0,4 mm
  • mounting diameter d = 42,1 mm
  • overall diameter d = 55,3 mm
  • mounting depth (not countersunk) t = 34,3 mm
